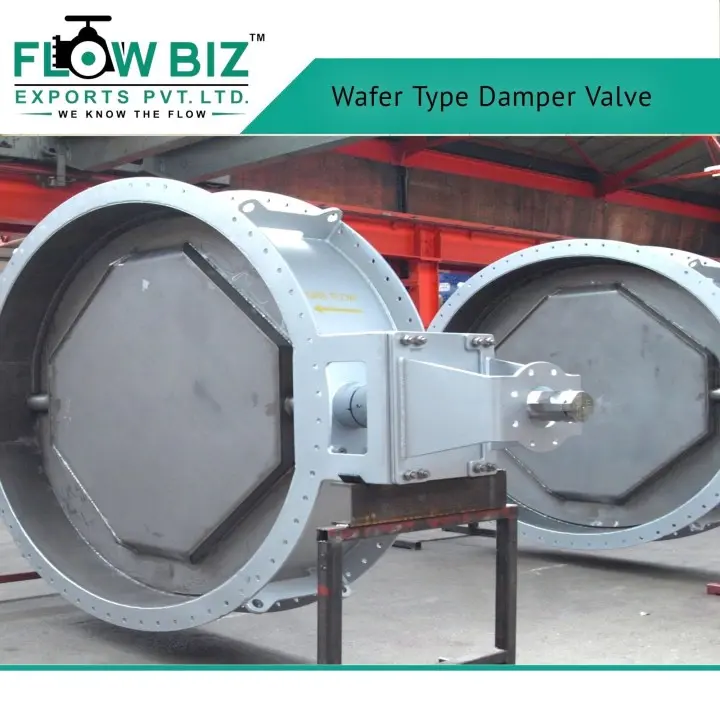

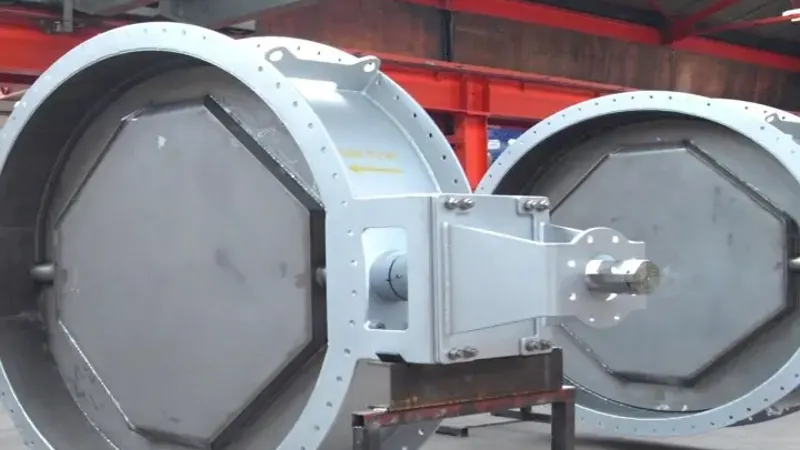

Wafer Type Damper Valve

Butterfly-type Damper Valve Manufacturer: FlowBiz Exports

The FlowBiz Damper Valve operates using a standard butterfly mechanism, featuring a disc that rotates $90^{\circ}$ within the duct. Unlike high-pressure liquid valves, dampers are optimized for gas streams. They are the ideal choice for flue-gas scrubbers and ventilation systems where a small amount of leakage (approx. 5%) is permissible in exchange for rapid actuation and reduced weight.

Technical Specifications

Feature

Specification Details

Size Range

1 1/2 inch to 20 inches (40 mm to 500 mm)

Standard Materials

Mild Steel (MS), SS304, SS316

Body Test Pressure

10 kg/cm² (Hydraulic)

Leakage Rate

Approximately 5%

Operation

Simple 90° Motion (Manual or Actuated)



Key Features & Advantages

  • Lightweight Design: Constructed to minimize the load on large-diameter ductwork, making installation faster and less labor-intensive.
  • Rapid Actuation: The drive mechanism is remarkably simple, requiring only a quarter-turn to move from fully open to fully closed.
  • Cost-Efficient: Because they do not require complex resilient seating for bubble-tightness, damper valves are an inexpensive alternative for air-based applications.
  • Durable in Harsh Gas Streams: Available in various grades of Stainless Steel to withstand corrosive flue gases and high-temperature industrial exhaust.
  • Versatile Mounting: Often used as isolating dampers in scrubber units, where they prevent the backflow of gases during maintenance or process changes.

Industrial Applications

FlowBiz Damper Valves are used extensively across critical sectors in India and overseas:

  • Power Plants: Managing flue-gas desulfurization (FGD) and scrubber systems.
  • HVAC Systems: Large-scale air intake and ventilation control for industrial plants.
  • Steel & Cement: Controlling hot air and dusty gas streams in kilns and furnaces.
  • Pollution Control: Diverting gases to filtration and treatment units.
  • General Industry: Any process involving low-pressure gas regulation.

Global Supply & Excellence

As a premier manufacturer and exporter, FlowBiz Exports is highly appreciated by customers in:

  • Asia: Nepal, Bangladesh, Thailand, Vietnam.
  • Middle East: Dubai, Turkey.
  • Africa: Nigeria, Kenya, Uganda, South Africa, Morocco, Tanzania, Mozambique, Congo, and Rwanda.

Contact Information

Reach out to the FlowBiz technical team for expert guidance on damper sizing and custom material requests:

Request Your Quick Quote Today!

Optimize your gas handling systems with FlowBiz reliability. We provide Easy and Quick Quotes at factory prices for both domestic infrastructure and high-volume international exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your leading partner for Butterfly-type Damper Valves.
