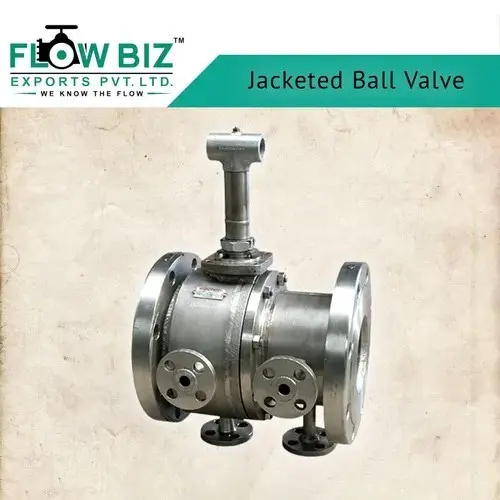

Jacketed Ball Valve

Jacketed Ball Valve Manufacturer: FlowBiz Exports

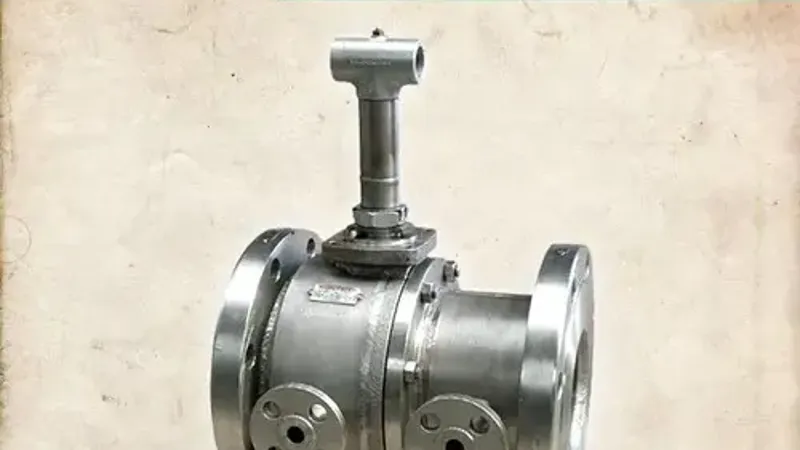

A FlowBiz Jacketed Ball Valve features an external heating or cooling chamber (the jacket) that surrounds the valve body. By circulating steam, hot oil, or cooling fluids through this jacket, the valve maintains the process media at a precise temperature. This "high-performance insulation structure" is critical for keeping media like molten sulfur or bitumen in a liquid state.

The "Oversize Flange" Design

To provide adequate space for the heating jacket and ensure bolting clearance, FlowBiz utilizes modified body designs with oversize flanges.

  • Example: In a $2\text{ inch} \times 3\text{ inch}$ Jacketed Ball Valve, the nominal bore (internal flow path) is $2\text{ inches}$ ($50\text{mm}$), while the flange size is increased to $3\text{ inches}$ ($80\text{mm}$).

Technical Specifications

Feature

Specification Details

Bore Size Range

1/2 inch to 10 inches (higher on request)

Jacket Type

Fully Jacketed (Flange-to-Flange)

Media Compatibility

Chocolate, Bitumen, Molten Sulfur, Resins, Wax

Heating Media

Steam, Thermic Fluid, Hot Water

End Connections

Flanged (Oversize)

Key Features & Advantages

  • Prevents Solidification: Specifically designed for media that quickly solidifies at atmospheric temperatures, preventing valve seizing and pipeline blockages.
  • Full Flange-to-Flange Jacketing: FlowBiz offers "Fully Jacketed" versions where the jacket covers the body entirely from one flange face to the other, eliminating cold spots.
  • Superior Insulation: The high-efficiency jacket design ensures that internal heat is maintained, reducing energy consumption and process variability.
  • Versatile Material Selection: Available in Carbon Steel, Stainless Steel, and special alloys to handle both high-temperature heating and corrosive chemical media.
  • Custom Actuation: Can be equipped with manual levers, gearboxes, or automated pneumatic/electric actuators for remote temperature-controlled processes.

Strategic Industrial Applications

FlowBiz Jacketed Ball Valves are the primary choice for:

  • Food Industry: Handling Chocolate, fats, and viscous syrups.
  • Petrochemicals: Transporting Bitumen, Asphalt, Grease, and Benzene.
  • Chemical Manufacturing: Processing Molten Sulfur, Resins, Polyurethane, and Fatty Alcohols.
  • General Processing: Managing Wax and adhesives in manufacturing lines.

Your Expert Partner in Thermal Flow Control

FlowBiz Exports is a leading manufacturer and supplier of a complete range of valves and accessories:

  • Lined Range: PFA/FEP Lined Valves for corrosive chemicals.
  • High Pressure: Forged Steel Gate, Globe, and Check Valves.
  • Filtration: Y-Type, Basket, and Conical Strainers.
  • Standard Range: Ball, Butterfly, and Plug Valves for general utility.

Contact Information

Reach out to the FlowBiz technical team for guidance on jacket pressure ratings and quick quotes:

Request Your Quick Quote Today!

Eliminate process downtime caused by media crystallization with the thermal precision of FlowBiz. We provide Easy and Quick Quotes for domestic industrial plants and global exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your leading partner for Jacketed Ball Valves.
