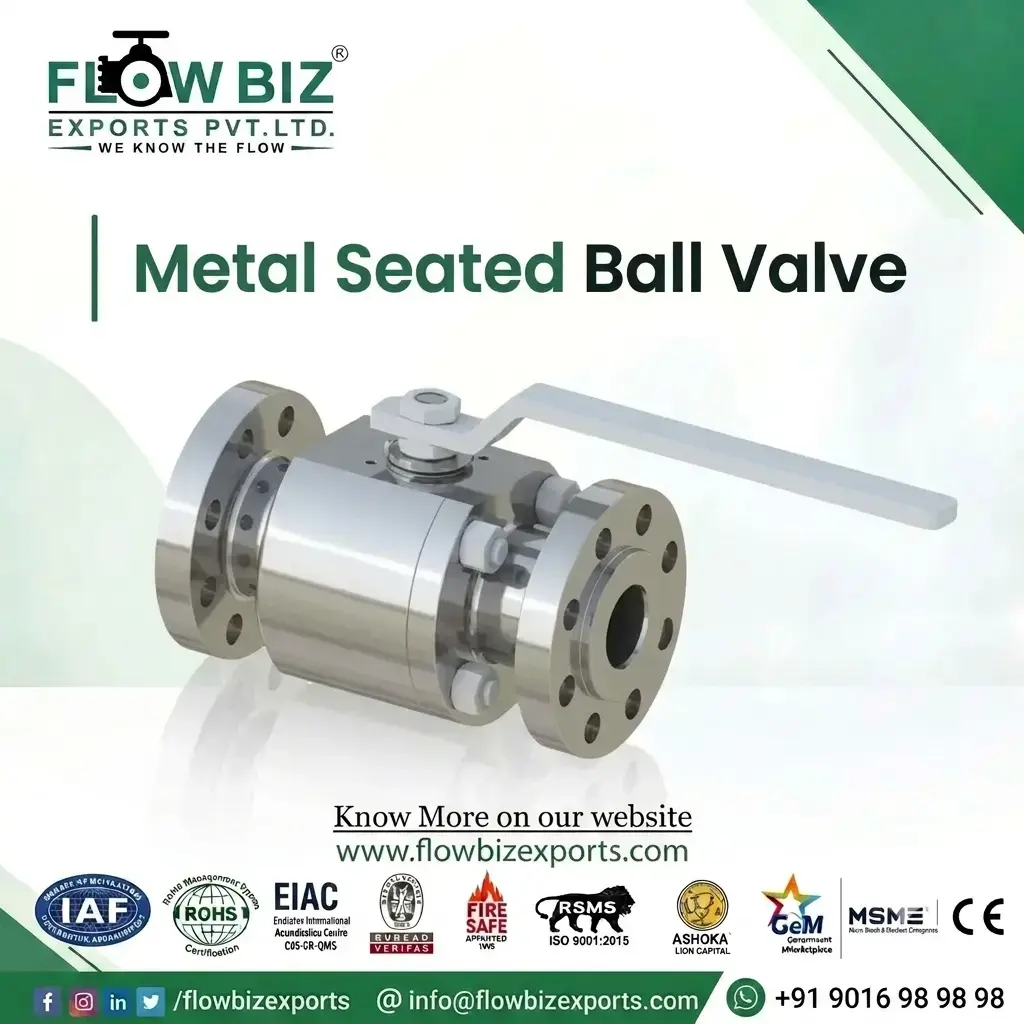

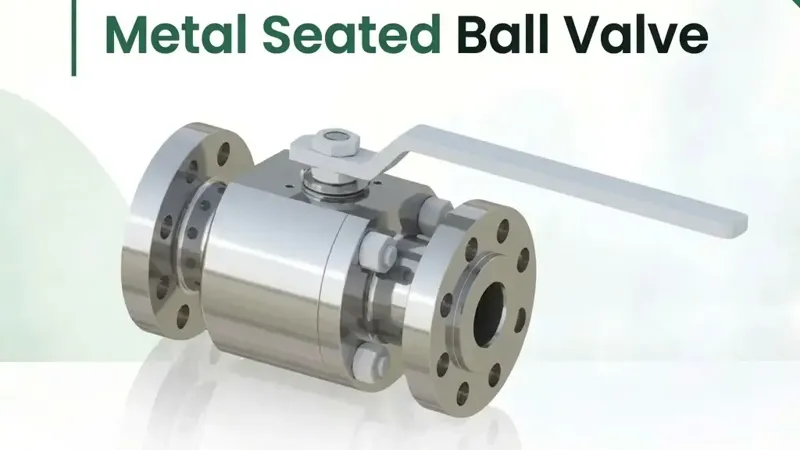

Metal Seated Ball Valve, SS Ball Valve

Metal Seated Ball Valve Manufacturer: FlowBiz Exports

The FlowBiz Metal Seated Ball Valve is a heavy-duty solution where the traditional polymer seat is replaced by high-strength metallic seats. These seats are enhanced with specialized coatings to withstand high-velocity abrasive media and thermal expansion. Our design ensures that the valve remains operational and leak-proof even when exposed to hydraulic shocks and temperatures up to $1000^{\circ}\text{F}$ ($537^{\circ}\text{C}$).

Technical Specifications & Standards

Feature

Specification Details

Size Range

1/2 inch to 4 inches (15 mm to 100 mm)

End Connections

Screwed, Welded (Socket/Butt), or Flanged Ends

Design Standard

BS EN ISO 17292

Face-to-Face

ASME B16.10

Pressure Class

ASME B16.5 Class 150 (Higher classes available)

Leakage Class

ANSI/FCI 70-2 Class V and VI (Bubble-Tight)

Max Temperature

Up to 1000°F (537°C)

Specialized Coating Options

The secret to the longevity of our metal-seated valves lies in our advanced surface hardening technologies:

  • Stellite Hard-Facing: Exceptional resistance to erosion and galling.
  • Tungsten Carbide: Maximum protection against abrasive wear from sand, ash, or slurry.
  • Chromium Carbide: Ideal for high-temperature oxidation resistance.
  • Electroless Nickel Plating (ENP): Provides superior corrosion resistance in acidic or alkaline environments.

Key Features & Advantages

  • High Temperature Resilience: Operates reliably up to $537^{\circ}\text{C}$, where standard PTFE or RPTFE seats would melt.
  • Abrasion Resistance: The hardened metal-to-metal contact is designed to handle media with high particulate counts without scratching the sealing surface.
  • Bubble-Tight Shut-Off: Complies with FCI-702 Class VI standards, ensuring zero-leakage performance in gas and liquid services.
  • Hydraulic Shock Resistance: Rugged construction provides smooth operation and structural integrity against sudden pressure surges or water hammer.
  • Corrosive Media Expert: Perfectly suited for aggressive chemical processing where soft materials fail due to chemical attack.

Strategic Industrial Applications

  • Power Generation: High-pressure steam, fly ash handling, and blow-down lines.
  • Mining & Metallurgy: Abrasive slurries and mineral processing.
  • Oil & Gas: Handling crude oil with sand content and high-temperature refining processes.
  • Chemical Plants: Reactive and corrosive media involving high thermal cycles.
  • Pulp & Paper: Managing black liquor and abrasive wood-pulp streams.

Your Global Flow Control Partner

FlowBiz Exports is a leading manufacturer and supplier of a complete range of valves, including Gate, Globe, Check, Butterfly, and Lined Valves, serving the most critical sectors in India and internationally.

Contact Information

Reach out to the FlowBiz technical team for coating recommendations and quick quotes:

Request Your Quick Quote Today!

Protect your high-value infrastructure from wear and heat with the hardening technology of FlowBiz. We provide Easy and Quick Quotes for domestic industrial projects and large-scale global exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your premier partner for Metal Seated Ball Valves.
