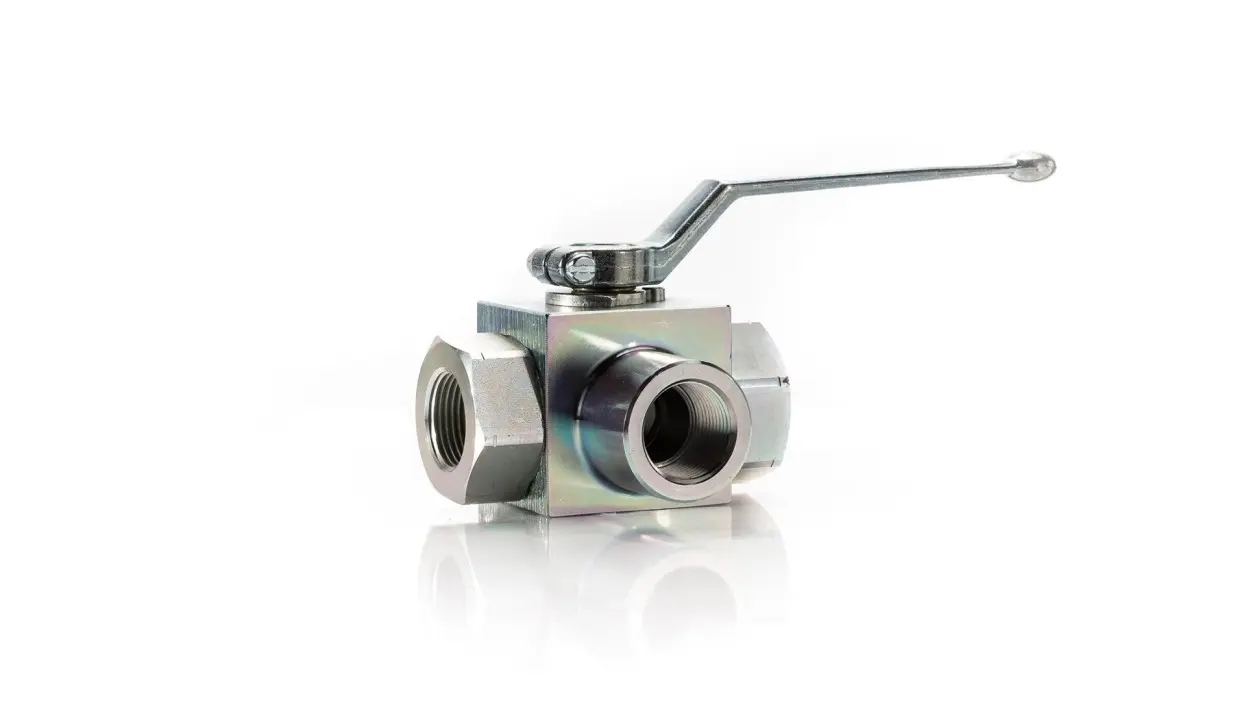

3 Way High Pressure Ball Valve

Multiport 3-Way Ball Valve Manufacturer: FlowBiz Exports

The FlowBiz 3-Way Ball Valve is a multi-functional component designed to replace multiple 2-way valves and fittings. By utilizing a single valve body with three ports, users can divert flow from one line to another or mix media from two different sources into a single discharge point.

L-Port vs. T-Port Configurations

Understanding the internal ball structure is critical for system design:

  • L-Port (Diverter): Used to shut off one pipe while opening another. It connects the center port to either of the two side ports.
  • T-Port (Mixer/Bypass): Offers greater flexibility, allowing for the mixing of two streams, diverting one stream to two outlets, or allowing straight-through flow.

Technical Specifications

Feature

Specification Details

Size Range

1/2 inch to 1 1/2 inches (15 mm to 40 mm)

Material Options

Carbon Steel (CS), SS304, SS316, and Special Alloys

Design Concept

Full Bore with Floating Ball on pre-compressed seals

Temperature Range

$-20^{\circ}\text{C}$ to $150^{\circ}\text{C}$

Operation

Quarter-turn ($90^{\circ}$) for open/close; $45^{\circ}$ to close all ports

Key Features & Advantages

  • Full Bore Design: Ensures a streamlined flow path with negligible pressure drop, maintaining system efficiency in high-velocity applications.
  • Floating Ball Concept: The ball sits against pre-compressed seals that reduce wear and tear while providing an excellent seal under both positive and negative pressure conditions.
  • Precise Flow Control: The valve is designed to close all ports simultaneously when the handle is positioned at a $45^{\circ}$ angle, providing an added safety and regulation feature.
  • Compact High-Pressure Performance: Specialized for high-pressure environments, making it a "stalwart" choice for industrial manifolds and skid-mounted systems.
  • Durable Construction: Manufactured in materials ranging from standard Carbon Steel to SS316, ensuring compatibility with corrosive chemicals and gases.

Strategic Industrial Applications

  • Chemical Processing: Diverting reactive chemicals to different mixing tanks.
  • Steam Systems: Efficiently managing bypass lines and condensate return.
  • Oil & Gas: Directing high-pressure fuel or oil sequences.
  • Water Treatment: Mixing treatment chemicals or diverting water for filtration backwash.

Pan-India Supply & Reliability

FlowBiz Exports is recognized as the premier manufacturer of high-pressure 3-way valves, supporting major industrial hubs including:

  • Maharashtra: Mumbai, Pune, Thane, Nashik, Nagpur, and Kolhapur.
  • Gujarat: Ahmedabad, Vapi, Surat, Gandhidham, Bharuch, and Ankleshwar.
  • South & Central India: Chennai, Coimbatore, Salem, Indore, and Bhopal.
