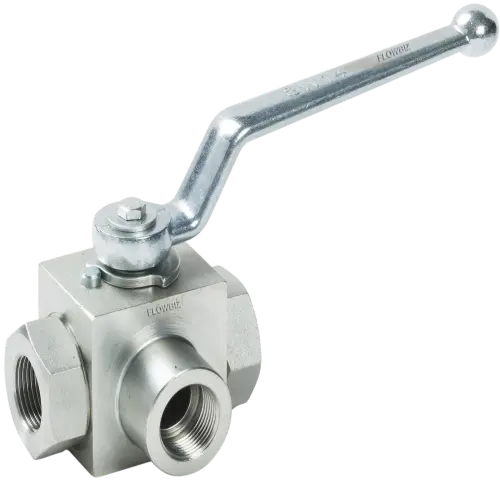

3 Way High Pressure Ball Valve

Multiport 3-Way Ball Valve: The Versatile Flow Solution

A FlowBiz 3-Way Ball Valve features three ports (openings) that allow for advanced flow configurations that a standard 2-way valve cannot achieve. By rotating the ball, users can switch between different flow paths, making it the "first choice" for distribution and mixing systems.

Key Operational Capabilities

Our 3-way valves are engineered to perform six critical functions within a single unit:

  1. Shut-off: Completely stop the flow in all directions.
  2. Switching: Toggle flow between two different sources (Inlet A to Outlet vs. Inlet B to Outlet).
  3. Combining: Mix media from two separate sequences into one common discharge line.
  4. Alternating: Direct flow between two different destinations.
  5. Diverting: Move flow coming from a single source to a new destination.
  6. Splitting: Divide a single incoming stream between two outgoing destinations simultaneously.

Technical Specifications

Feature

Specification Details

Bore Design

Full Bore (Low Pressure Drop)

Material Options

Carbon Steel, SS304, SS316, and Special Alloys

Port Styles

L-Port (Diverter) and T-Port (Mixer/Bypass)

Size Range

1/2 inch to 6 inches (Standard industrial range)



Temperature

Suitable for cryogenic to high-heat steam service

Advantages of FlowBiz Multiport Engineering

  • Simplified Piping Design: One 3-way valve can replace two or even three standard 2-way valves, significantly reducing the number of joints and potential leak paths.
  • Flow Regulation: Features both fully unlocked and locked positions to ensure safety during high-pressure oil and gas sequences.
  • Precise Diverting: Ideal for tank-to-tank transfers, such as diverting oil flow from a primary storage tank to a secondary processing unit without interrupting the pump cycle.
  • Modular Actuation: Can be easily equipped with position indicators, pneumatic actuators, or electric motors for automated process control.

Strategic Industrial Applications

  • Oil & Gas: Switching between different fuel sources or storage tanks.
  • Water Treatment: Diverting water between filtration and backwash cycles.
  • Food & Beverage: Mixing ingredients or diverting fluids for CIP (Clean-in-Place) cycles.
  • Chemical Processing: Combining reactive media in controlled sequences.

Your Global Flow Control Partner

FlowBiz Exports is a premier manufacturer and supplier of a complete range of industrial valves, including Gate, Globe, Check, and Butterfly Valves, serving critical sectors in India and internationally.

Contact Information

Consult the FlowBiz technical team to determine if an L-Port or T-Port is best for your specific mixing or diverting requirement:

Request Your Quick Quote Today!

Simplify your system and gain total control over your fluid distribution with FlowBiz 3-way technology. We provide Easy and Quick Quotes at factory prices for domestic infrastructure and global industrial exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your leading partner for Multiport Ball Valves.
