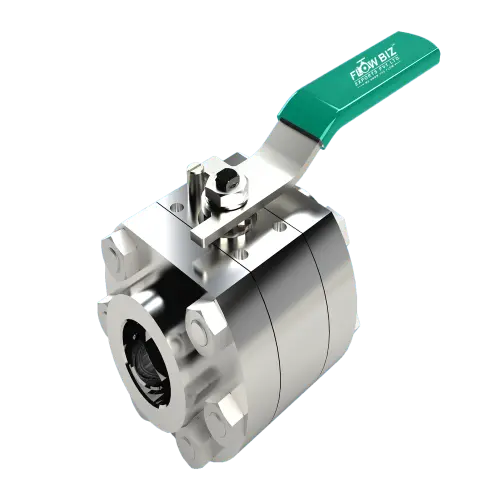

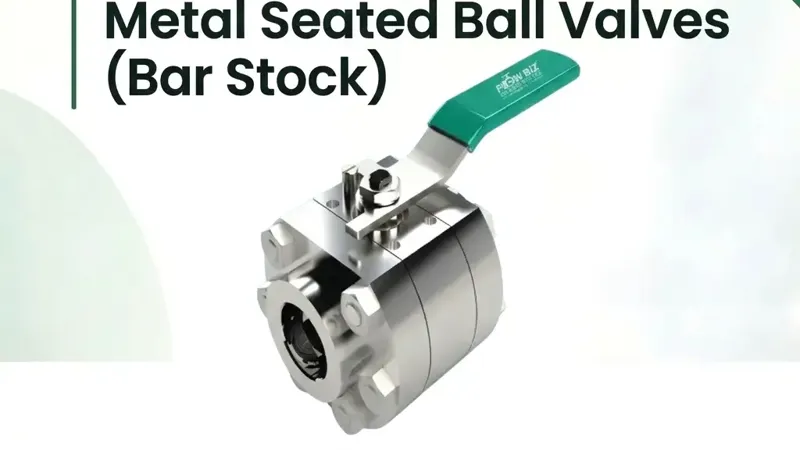

Metal Seated Ball Valves (Bar Stock)

Metal Seated Ball Valve Manufacturer: FlowBiz Exports

The FlowBiz Metal Seated Ball Valve is specifically engineered for services where operating temperatures exceed $250^{\circ}\text{C}$ to $400^{\circ}\text{C}$. In these harsh conditions, soft seats (like PTFE or RPTFE) lose structural integrity. Our metal-to-metal sealing technology ensures a bubble-tight shut-off by utilizing high-strength base materials enhanced with advanced surface hardening coatings.

Advanced Surface Hardening Technologies

The longevity of our valves in harsh conditions is due to specialized treatment of the ball and seats:

  • ENP (Electroless Nickel Plating): Provides a smooth, corrosion-resistant surface for general high-temperature service.
  • Stellite Hard-Facing: Offers exceptional resistance to erosion, galling, and wear in high-cycle applications.
  • HVOF (Chrome Carbide Coating): High-Velocity Oxy-Fuel coating provides maximum protection against abrasive particulates and extreme thermal stress.

Technical Specifications

Feature

Specification Details

Operating Temp

Optimized for 250°C to 400°C and above

Ball Materials

High-grade SS304 / SS316

Seating Type

Metal-to-Metal (Matching hard-faced seats)

Coating Options

Nickel Plating, Stellite, Chrome Carbide (HVOF)

End Connections

Flanged, Screwed, or Welded

Compliance

Designed to withstand the harshest industrial standards

Key Features & Advantages

  • Extreme Heat Tolerance: Operates reliably in environments where "weak" soft seats would melt or deform.
  • Abrasion & Erosion Resistance: The hardened metal surfaces are ideal for handling media containing sand, ash, or other abrasive particulates.
  • Zero Leakage Integrity: Precision-lapped ball and seat sets ensure a high-performance seal even under fluctuating pressure and temperature cycles.
  • Ferrous & Non-Ferrous Expertise: As a well-known provider of diverse metal grades, FlowBiz ensures the metallurgy matches your specific process chemistry.
  • Rugged Construction: Built to exceed the harshest industrial conditions, reducing maintenance frequency and total cost of ownership.

Strategic Industrial Applications

  • Power Generation: Main steam lines, blow-down service, and fly ash handling.
  • Refineries: Managing high-temperature hydrocarbons and catalyst slurry.
  • Mining & Metallurgy: Abrasive mineral processing and smelting operations.
  • Chemical Plants: Reactive media at elevated temperatures.

A Global Leader in Flow Control

FlowBiz Exports is recognized as a premier manufacturer and supplier of a complete range of valves and accessories, including Gate, Globe, Check, Butterfly, and Strainer Valves. Our high-grade exports are appreciated by industry leaders in:

  • Middle East: Dubai, Turkey.
  • Africa: Nigeria, Kenya, Uganda, South Africa, Morocco, Tanzania, Congo, Mozambique, Rwanda.
  • Asia: Nepal, Bangladesh, Thailand, Vietnam.

Contact Information

Consult the FlowBiz technical team to determine the best coating (Stellite vs. HVOF) for your specific pressure and temperature profile:

Request Your Quick Quote Today!

Protect your high-value infrastructure from thermal failure with FlowBiz Metal Seated technology. We provide Easy and Quick Quotes for both domestic projects and international exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your leading partner for Metal Seated Ball Valves.
