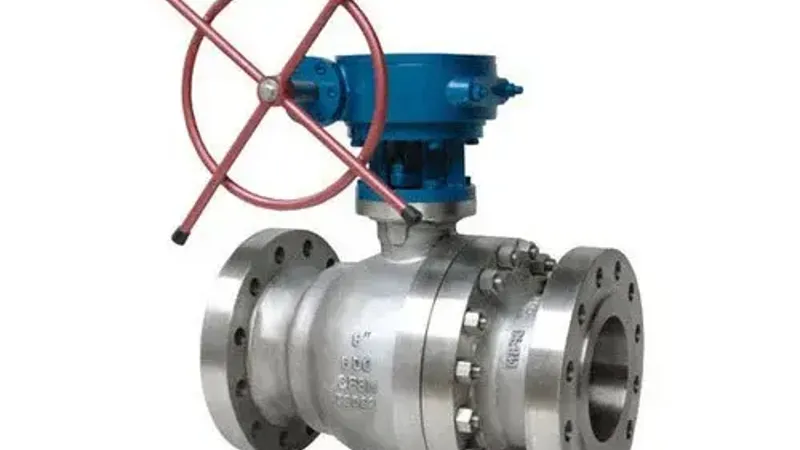

Trunnion Mounted Ball Valve, Ball Valve

What is a Trunnion Ball Valve?

In a FlowBiz Trunnion Ball Valve, the ball is supported by a fixed shaft (the trunnion) at the bottom and the stem at the top. This "two-point" support system prevents the ball from shifting downstream under pressure. Instead of the ball pushing against the seats, the spring-loaded seats are pushed against the ball by the line pressure, ensuring a consistent, bubble-tight seal.

Trunnion vs. Floating Ball Valve

  • Floating Design: The ball is held only by the stem. Under high pressure, the ball "floats" or shifts towards the downstream seat to create a seal. This can cause high torque and seat wear in larger sizes.
  • Trunnion Design: The ball is held firmly in place by the trunnion shaft. This allows for smoother operation and much higher pressure ratings without damaging the internal seals.

Key Advantages of FlowBiz Trunnion Engineering

  • Optimized for High Pressure: Ideal for Class 600, 900, 1500, and 2500 applications where the mechanical load on the ball is extreme.
  • Spring-Loaded Seats: Our valves feature independent springs that maintain constant contact with the ball, providing an effective seal even at low-pressure differentials or vacuum service.
  • Lower Operational Costs: Because the ball is anchored, the frictional force against the seats is significantly lower. This results in reduced torque, allowing for smaller, less expensive actuators.
  • High-Temperature Resilience: The robust trunnion support handles thermal expansion far better than floating designs, making it suitable for high-heat process cycles.
  • Minimal Maintenance & Downtime: The "Fit & Forget" design minimizes wear on the seats, extending the service life of the valve and reducing the frequency of plant shutdowns.

Strategic Industrial Applications

  • Oil & Gas Pipelines: Reliable isolation for high-pressure transmission lines.
  • Petrochemical Refineries: Managing volatile hydrocarbons and high-temperature refining sequences.
  • Power Plants: High-pressure steam and cooling water systems.
  • Water Distribution: Large-diameter municipal pipelines where structural stability is paramount.

Your Premier Flow Control Partner

FlowBiz Exports is recognized as a leading manufacturer and supplier of a complete range of industrial valves and accessories:

  • Isolation: Gate, Globe, and Plug Valves.
  • Non-Return: Swing Check and NRV Valves.
  • Specialized: PFA/FEP Lined, Knife Edge Gate, and High-Pressure Ball Valves.
  • Filtration: Y-Type, Basket, and Conical Strainers.

Contact Information

Reach out to the FlowBiz technical team for API 6D data sheets and factory-direct quotes:

Request Your Quick Quote Today!

Secure your high-pressure infrastructure with the anchored precision of FlowBiz Trunnion technology. We provide Easy and Quick Quotes for domestic industrial projects and large-scale global energy exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your leading partner for Trunnion Ball Valves.
