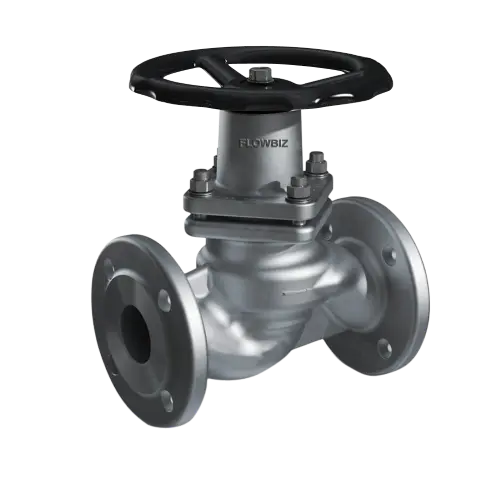

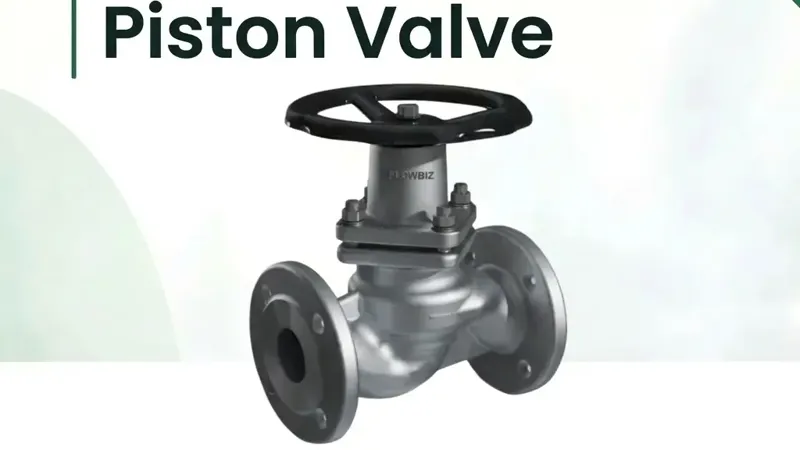

Piston Valve

Piston Valve Manufacturer in India: FlowBiz Exports

The FlowBiz Piston Valve is designed for the most demanding "Fit & Forget" applications. Unlike traditional valves that rely on a seat and disc, the piston valve utilizes a Metallic Stainless Steel Piston that moves vertically between two resilient sealing rings. This design creates a large, airtight sealing surface that is not affected by thermal expansion or the presence of impurities in the media.

The Glandless Advantage: Why Choose Piston Valves?

Traditional Gate and Globe valves often suffer from gland leakage and seat erosion. The FlowBiz Piston Valve solves these issues through its unique architecture:

  • Glandless Design: By eliminating the conventional gland packing, the valve removes the most common leak path, ensuring environmental safety and reducing maintenance costs.
  • Superior Sealing Surface: The interaction between the polished stainless steel piston and the resilient rings provides a massive sealing area compared to the narrow "line contact" found in globe valves.
  • Self-Cleaning Action: As the piston slides through the rings, it wipes away any dirt or scale present in the media, preventing damage to the sealing surfaces.
  • Compensates for Thermal Expansion: The resilient rings are designed to maintain a tight seal even during rapid temperature fluctuations, preventing "seizing" or leakage.

Technical Specifications & Features

Feature

Specification Details

Valve Type

Piston Valve (Glandless / Seatless)

Piston Material

Hardened Stainless Steel (SS304/SS316)

Sealing Rings

Graphite or Virgin PTFE (Depending on temperature)

Standards

Designed per ASME / DIN / IBR Standards

End Connections

Flanged, Screwed, or Socket Weld

Media Suitability

High-Pressure Steam, Thermal Oil, Gas, and Chemicals

Strategic Industrial Applications

  • Steam Management: The primary choice for industrial boiler lines and condensate systems due to its high thermal resilience.
  • Thermal Oil Systems: Provides absolute isolation for high-temperature thermic fluid heaters.
  • Volatile Chemicals: The glandless design prevents the escape of toxic or hazardous vapors.
  • Utility Services: Reliable performance in compressed air and nitrogen distribution networks.

Your One-Stop Flow Control Partner

FlowBiz Exports is recognized as the best manufacturer and supplier of a comprehensive range of industrial valves across India and international markets:

  • Core Range: Gate, Globe, Check, and Ball Valves.
  • Specialized: Forged Steel, Knife Edge, PFA-Lined, and Diaphragm Valves.
  • Pipeline Accessories: Sight Glass, Needle Valves, and IBR-approved valves.
  • Filtration: Y-Type, Basket, and Conical Strainers.

Contact Information

Reach out to the FlowBiz technical team for sizing charts and factory-direct quotes:

Request Your Quick Quote Today!

Eliminate gland leaks and reduce your maintenance downtime with the resilient engineering of FlowBiz Piston technology. We provide Easy and Quick Quotes at competitive prices for domestic industrial plants and global exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your premier partner for Piston Valves in India.
