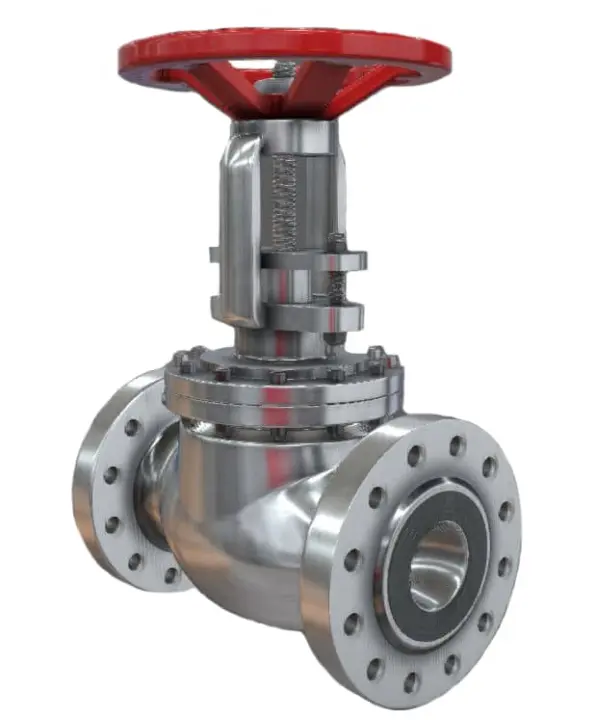

Globe Valve

Globe Valve Manufacturer in India: FlowBiz Exports

The FlowBiz Globe Valve is the industry standard for fluid regulation. Named for its spherical/cylindrical body shape, it features an internal baffle that divides the valve into two halves. Unlike a gate valve, which is designed for full-open or full-closed service, the globe valve uses a movable disc (or plug) to regulate the flow of media through the baffle's opening.

The "Throttle Valve" Advantage

While globe valves exhibit a higher pressure drop compared to straight-through valves (like gate or ball valves), they are the superior choice when:

  • Throttling is Required: The design allows for precise adjustment of flow rates, making it an essential "throttle valve."
  • Pressure Drop is Non-Controlling: Ideal for systems where a slight reduction in pressure is acceptable in exchange for superior flow control.
  • Frequent Operation: The shorter stroke length compared to gate valves allows for faster opening and closing with less wear on the seating surfaces.

Technical Specifications & Design

Feature

Specification Details

Body Shape

Standard (T-Pattern), Angle Pattern, or Y-Pattern

Bore Type

Full Port / Standard Port

Seating

Metal-to-Metal or Resilient Seating

Standards

Designed per BS 1873 / ASME B16.34

End Connections

Flanged, Screwed, or Butt-Weld

Specialized

IBR Approved Globe Valves for Steam Service

Key Features & Benefits

  • Precision Regulation: The linear relationship between the disc position and the flow rate provides exceptionally accurate control of the media.
  • Robust Baffle Design: The internal baffle ensures that the media is directed through a specific path, reducing turbulence during throttling.
  • Exceptional Shut-off: When fully closed, the disc provides a tight, high-pressure seal against the seat, preventing leakage in critical lines.
  • Easy Maintenance: Most FlowBiz globe valves allow for top-entry maintenance, meaning the disc and seat can be serviced without removing the entire valve from the pipeline.
  • Durability: Manufactured from high-grade Forged or Cast Steel to withstand high-temperature and high-pressure steam and oil service.

Strategic Industrial Applications

  • Power Plants: Regulating high-pressure steam and feedwater systems.
  • Oil & Gas: Controlling the flow of hydrocarbons in refining and distribution.
  • Chemical Processing: Precise dosing and distribution of chemical reagents.
  • Boiler Systems: Serving as critical isolation and regulation points (IBR Grade).

Your One-Stop Flow Control Partner

FlowBiz Exports is recognized as the best manufacturer and supplier of a comprehensive range of industrial valves across India:

  • Core Range: Gate, Globe, Check, and Ball Valves.
  • Specialized: Forged Steel, Knife Edge, PFA-Lined, and Diaphragm Valves.
  • Pipeline Accessories: Sight Glass, Needle Valves, and Plug Valves.
  • Filtration: Y-Type, Basket, and Conical Strainers.

Contact Information

Discuss your throttling requirements and pressure drop calculations with the FlowBiz technical team today:

Request Your Quick Quote Today!

Master your flow control with the precision engineering of FlowBiz Globe technology. We provide Easy and Quick Quotes for domestic infrastructure projects and global industrial exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your premier partner for Globe Valves in India.
