Butterfly Valve

Butterfly Valve Manufacturer in India: FlowBiz Exports

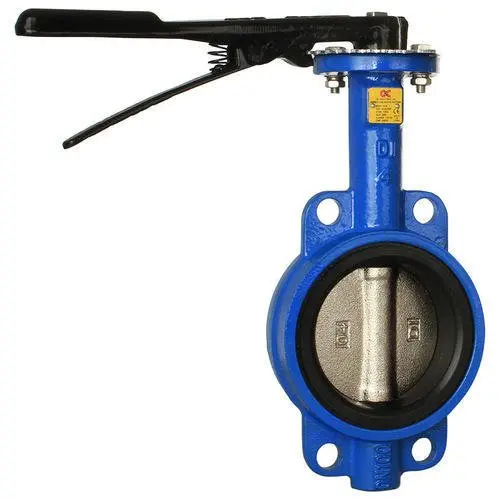

The FlowBiz Butterfly Valve is a quarter-turn valve ($90^{\circ}$ rotation) that uses a circular disc to start, stop, or regulate flow. Unlike heavier gate or globe valves, the butterfly design is exceptionally compact, making it the "first choice" for industries where space and weight are critical factors.

Technical Specifications & Compliance

Our valves are manufactured to rigorous international standards to ensure reliability in critical infrastructure:

Feature

Specification Details

Design Standards

API 609 / BS EN 593 / ASME B16.34

Testing Standards

API 598 / BS EN 12266-1

Body Types

Wafer, Lug, and Flanged Type

Size Range

2 inches to 48 inches (and larger on request)

Materials

Cast Iron, Ductile Iron, WCB, Stainless Steel, PFA Lined

Seating Options

Resilient (EPDM/Viton/Nitirle) or Metal-to-Metal

Key Advantages of FlowBiz Butterfly Engineering

  • Rapid Operation: The quarter-turn mechanism allows for quick opening and shut-off, which is essential for emergency isolation and process efficiency.
  • Low Fluid Resistance: The streamlined disc design ensures high flow coefficients ($C_v$) and minimal pressure drop across the valve.
  • Slurry & Mud Handling: Specifically designed to accumulate the least amount of liquid at the outlet, making it effective for transmitting mud and semi-solid media.
  • Compact & Lightweight: The narrow face-to-face dimensions significantly reduce the overall weight of the piping system and lower installation costs.
  • Low-Pressure Sealing: Precision-molded seats ensure good sealing performance even in low-pressure applications where other valve types might struggle.
  • Superior Regulation: Excellent for throttling and regulating flow in cooling water systems, air lines, and gas distribution.

Strategic Industrial Applications

  • Fire Protection: Quick-acting valves for water mains and fire suppression systems.
  • HVAC & Cooling Water: Managing large volumes of water for industrial cooling towers.
  • Water Treatment: Reliable isolation for desalination and municipal filtration plants.
  • Gas & Air Services: Controlling low-pressure air, nitrogen, and other industrial gases.
  • Corrosive Media: PFA-lined butterfly valves for aggressive chemical processing.

Your One-Stop Flow Control Partner

FlowBiz Exports is recognized as the best manufacturer and supplier of a comprehensive range of industrial valves across India:

  • Core Range: Gate, Globe, Check, and Ball Valves.
  • Specialized: Forged Steel, Knife Edge Gate, and PFA Lined Valves.
  • High Pressure: Metal Seated and Trunnion Mounted Ball Valves.
  • Filtration: Y-Type, Basket, and Conical Strainers.

Contact Information

Reach out to the FlowBiz technical team for Easy and Quick Quotes and expert assistance in selecting the right seat material for your media:

Request Your Quick Quote Today!

Optimize your flow efficiency with the compact and reliable engineering of FlowBiz technology. We provide factory-competitive prices for domestic infrastructure and global exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your leading partner for Butterfly Valves in India.
