Ball Valve

Industrial Ball Valve Manufacturer: FlowBiz Exports

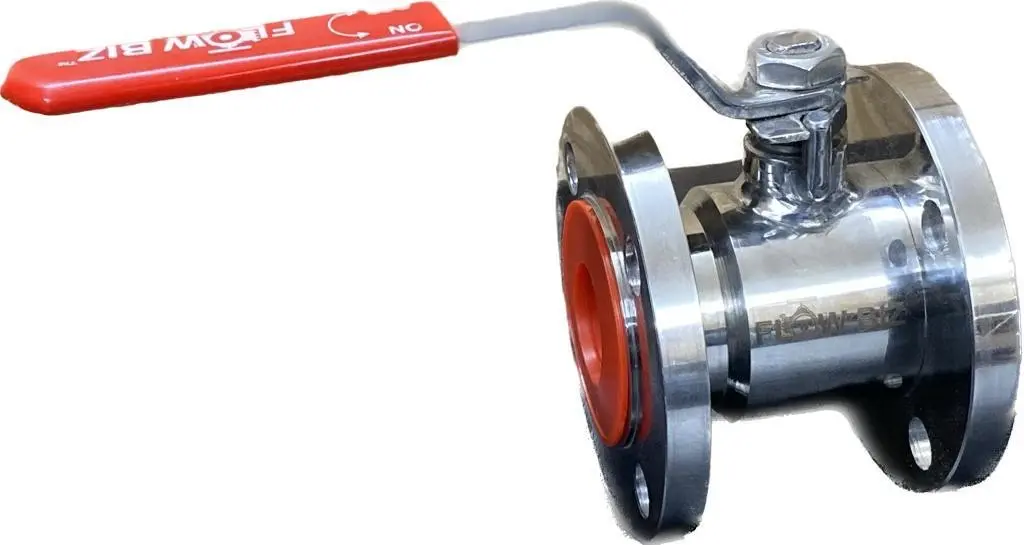

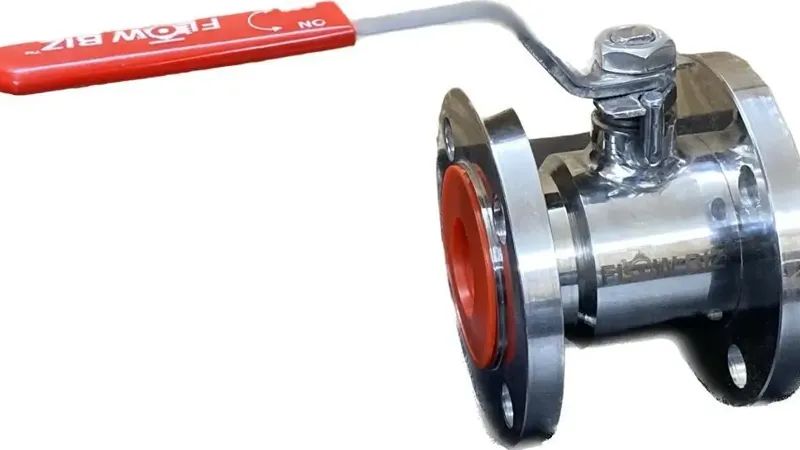

The FlowBiz Ball Valve utilizes a high-precision rotary ball with a hollow bore to manage fluid dynamics. When the bore is aligned with the pipeline, the valve is fully open; a simple quarter-turn ($90^{\circ}$) rotation of the handle positions the bore perpendicular to the flow, effectively blocking the media with an air-tight seal.

Why Choose FlowBiz Ball Valves?

  • Reliable and Air-Tight Sealing: Our valves are engineered with specialized seating materials that ensure a leak-proof seal, even under high-pressure gas or liquid service.
  • Long Service Life: The robust construction and precision-ground ball minimize friction, significantly extending the operational life of the valve compared to traditional gate or globe designs.
  • "Ready-to-Act" Efficiency: One of the most notable characteristics of the FlowBiz ball valve is its ability to work efficiently even after remaining idle for long periods. It will not seize or fail when you need it most.
  • Contamination Resistance: Our ball valves are inherently more resistant to contaminated media and particulates than most other valve types, ensuring consistent performance in "dirty" fluid services.
  • Rapid $90^{\circ}$ Operation: Designed with specialized mechanical stops that permit only a precise quarter-turn, preventing over-rotation and ensuring the valve is always either perfectly open or perfectly closed.

Technical Specifications & Varieties

FlowBiz offers a comprehensive range of ball valves to suit every industrial requirement:

Feature

Specification Details

Design Types

Single Piece, 2-Piece, 3-Piece, and Trunnion Mounted

Bore Options

Full Bore (for maximum flow) or Reduced Bore

End Connections

Screwed (NPT/BSP), Socket Weld, Butt Weld, and Flanged

Materials

Carbon Steel (WCB), Stainless Steel (CF8/CF8M), Forged Steel, and Alloy Steel

Standards

Designed and Tested as per API 6D, API 598, and ASME B16.34

Strategic Industrial Applications

  • Oil & Gas: Reliable shut-off for high-pressure transmission and distribution lines.
  • Chemical Processing: Handling aggressive chemicals with specialized seat materials.
  • Water Treatment: Efficient flow control for municipal and industrial water systems.
  • General Industry: Ideal for compressed air, steam, and utility services.

Your One-Stop Flow Control Partner

FlowBiz Exports is recognized as the best manufacturer and supplier of a comprehensive range of industrial valves across India:

  • Core Range: Gate, Globe, Check, and Butterfly Valves.
  • Specialized: Jacketed, Wafer Type, Metal Seated, and Multi-Port Ball Valves.
  • High Pressure: Forged Steel and High-Pressure (10,000 psi) Ball Valves.
  • Pipeline Accessories: Sight Glass, Needle Valves, and Piston Valves.

Contact Information

Reach out to the FlowBiz technical team today for a consultation on your specific flow control challenges:

Request Your Quick Quote Today!

Experience the peace of mind that comes with "Fit & Forget" engineering. We provide Easy and Quick Quotes at factory-competitive prices for domestic infrastructure and global industrial exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your premier partner for Ball Valves in India.
