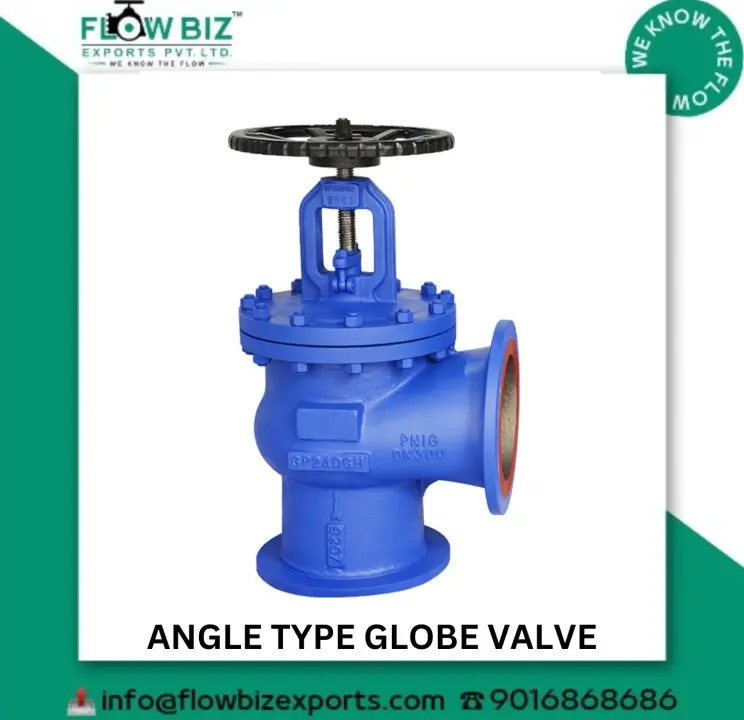

Angle Type Globe Valve, Globe Valve

Angle Type Globe Valve Manufacturer: FlowBiz Exports

The FlowBiz Angle Globe Valve is a sophisticated variation of the standard globe valve. While traditional globe valves have inlet and outlet ports in a straight line, the angle type features ports at a $90^{\circ}$ angle. This unique configuration allows the media to flow through a single $90^{\circ}$ turn, acting as both a flow control instrument and a piping elbow.

Strategic Design & Functionality

  • Streamlined Flow Path: By utilizing a single $90^{\circ}$ arch, the angle globe valve offers a more direct path for the fluid compared to the "S-path" of a standard globe valve.
  • Piping Efficiency: These valves are indispensable when piping lines are already designed to meet at an angle. They eliminate the need for an additional elbow fitting, reducing the number of joints and potential leak points.
  • Discharge Coefficient: While they have a slightly smaller coefficient of discharge than oblique (Y-pattern) valves, they offer superior flow characteristics over standard T-pattern globe valves in high-pressure applications.

Key Features and Benefits

  • Rugged Sealing: The sealing cover is manufactured from hardened steel, ensuring it is wear-resistant and leak-proof even under high-velocity flow.
  • Anti-Corrosion & Anti-Friction: Our valves are treated with specialized coatings and premium materials (like Stainless Steel) to provide outstanding resistance to corrosive media and mechanical friction.
  • Efficient Sealing: Designed for tight shut-off and dependable service, our angle valves maintain integrity throughout an extended service life.
  • Ease of Maintenance: The straightforward design allows for quick access to internal components, minimizing downtime in critical industrial processes.

Technical Specifications

Feature

Specification Details

Material Options

Stainless Steel (SS304/316/316L), WCB, Forged Steel

Bore Design

Standard Port / Full Port

End Connections

Flanged, Screwed (NPT/BSP), and Socket Weld

Standards

Manufactured to BS 1873 / ASME B16.34

Seat Type

Metal-to-Metal or Renewable Soft Seats

Strategic Industrial Applications

  • Boiler Feedwater: Regulating high-pressure water entering steam systems.
  • Chemical Processing: Managing aggressive fluids where piping space is limited.
  • Refineries: Handling hydrocarbon lines with $90^{\circ}$ configuration requirements.
  • Power Plants: Precise control of steam and condensate return lines.

Your One-Stop Flow Control Partner

FlowBiz Exports is recognized as the best manufacturer and supplier of a comprehensive range of industrial valves and accessories across India:

  • Core Valves: Gate, Globe, Check, and Ball Valves.
  • Specialized: Knife Edge Gate, PFA-Lined, and Diaphragm Valves.
  • Pipeline Support: Needle Valves, Sight Glass, and Forged Steel Valves.
  • Filtration: Y-Type, Basket, and Conical Strainers.

Contact Information

Consult the FlowBiz technical team in Mumbai to determine the best metallurgy for your specific fluid service:

Request Your Quick Quote Today!

Simplify your piping and enhance your flow control with the precision of FlowBiz Angle Globe technology. We provide Easy and Quick Quotes for both domestic infrastructure and international exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your premier partner for Angle Type Globe Valves in India.
