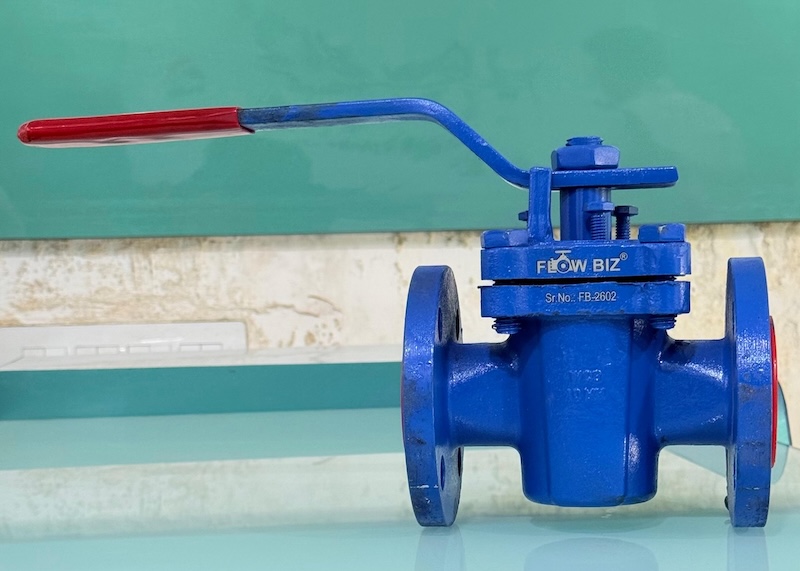

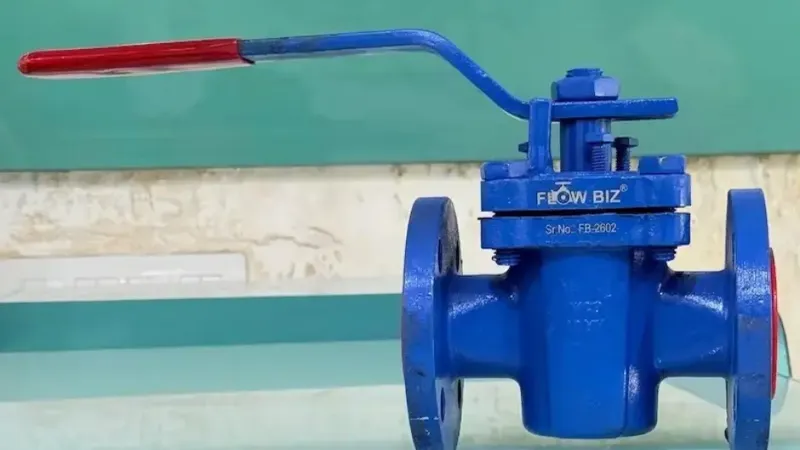

Sleeved Plug Valve

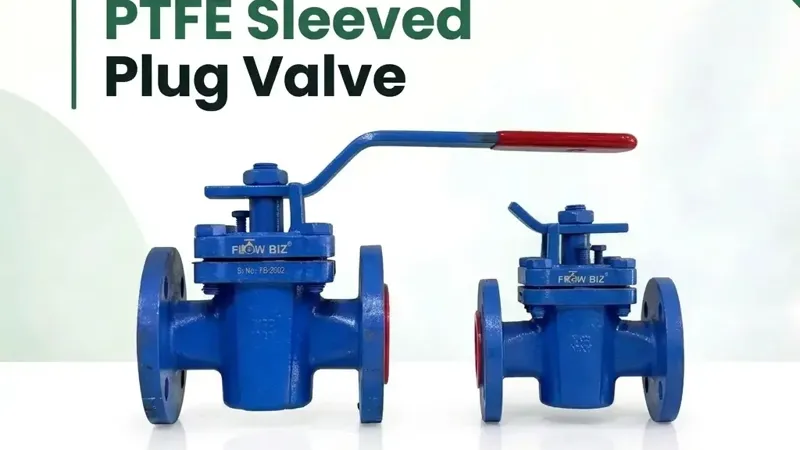

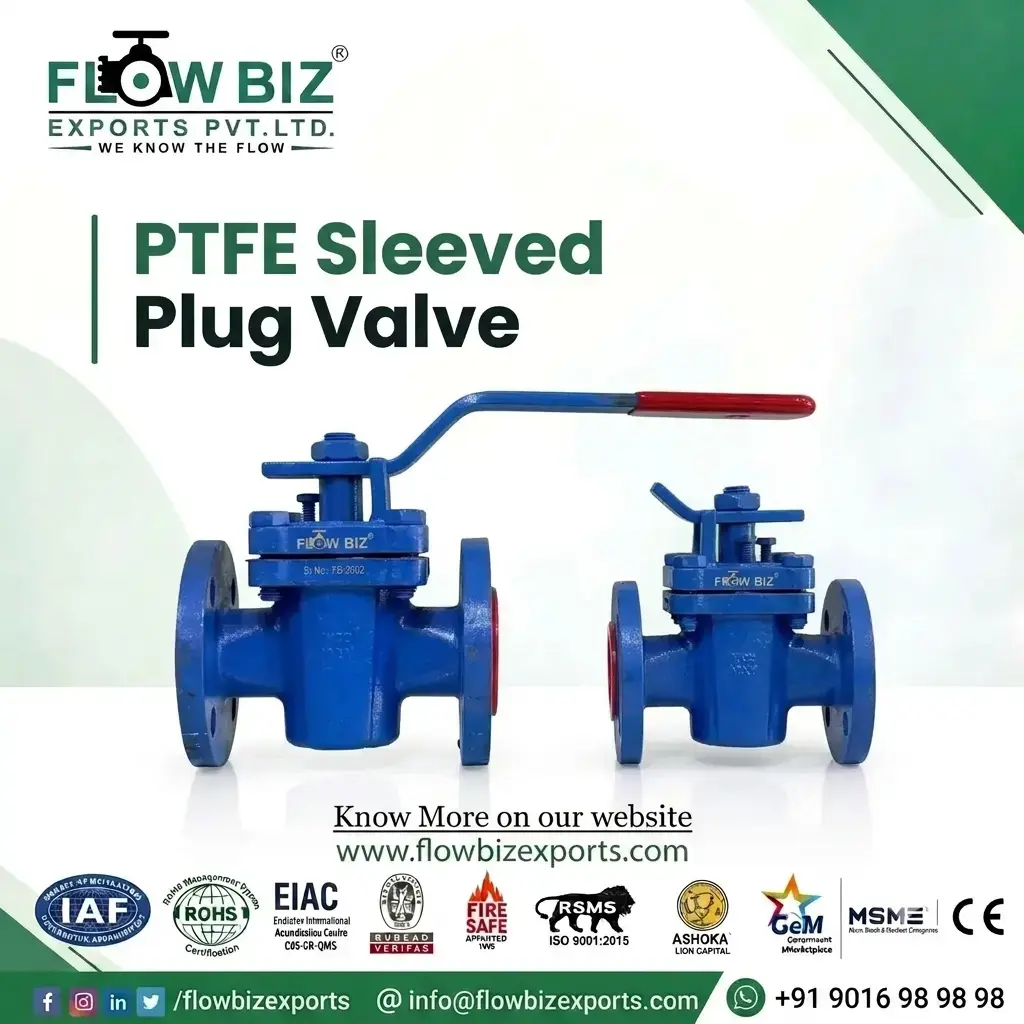

FlowBiz PTFE Sleeved Plug Valve: Engineering Excellence

The core of our plug valve’s success lies in its Non-Lubricated architecture. By utilizing a high-grade PTFE sleeve that completely surrounds the tapered plug, the valve achieves a 360° circumferential seal. This removes the need for traditional lubricants that could contaminate sensitive pharmaceutical or chemical batches.

Why Engineers Choose FlowBiz Sleeved Technology

  • Zero-Leakage Integrity: The interference fit between the tapered plug and the PTFE sleeve provides a bubble-tight seal that remains consistent, independent of fluctuations in line pressure.
  • Contamination-Free Operation: Because the design is non-lubricated, there is no risk of sealants leaching into your process media, making it the ideal choice for High-Purity Pharma and Specialty Chemical lines.
  • Cavity-Free Design (No Dead Space): Unlike ball valves, there are no cavities where fluid can get entrapped and degrade. This prevents "cooking" of the media and ensures easy cleaning for hygienic applications.
  • In-Situ Adjustability: Our unique design allows for online maintenance. If minor wear occurs over time, the plug can be adjusted downward to re-establish a tight seal without removing the valve from the line.
  • Slurry & Abrasive Handling: The "wiping action" of the plug against the sleeve during rotation helps clear away solids, making the valve exceptionally durable in abrasive slurry services.

Technical Specifications & Compliance

FlowBiz valves are engineered to meet and exceed global safety and performance benchmarks:

Feature

Specification Details

Design Standards

API 599 / ASME B16.34

Testing Standards

API 598 (Pressure) / API 607 (Fire Safe)

Size Range

½ inch to 16 inches

Pressure Class

ASME Class 150 & 300

Body Metallurgy

WCB, CF8, CF8M, Duplex, Hastelloy, and Monel

Sleeve Materials

High-Grade PTFE / PFA / RPTFE

Strategic Industrial Applications

  • Chemical Processing: Handling aggressive acids like Sulphuric and Nitric Acid.
  • Oil & Gas: Reliable isolation for molten sulphur and hydrocarbon sequences.
  • Pharmaceuticals: Maintaining sterile and high-purity environments.
  • Mining & Slurry: Handling abrasive mineral tailings and viscous pastes.

Global Manufacturing & Export

Based in Mumbai and serving major industrial hubs like Ahmedabad, FlowBiz Exports Pvt. Ltd. is a leading manufacturer powering critical infrastructure worldwide. We export to Dubai, Turkey, Africa, Thailand, Vietnam, and beyond.

Contact Information

Consult our technical experts for a Quick and Easy Quote tailored to your specific temperature and corrosion parameters:

Optimize Your Process Today

Don't let fluid entrapment or frequent maintenance stall your production. Experience the precision of FlowBiz Sleeved Plug Valves.
