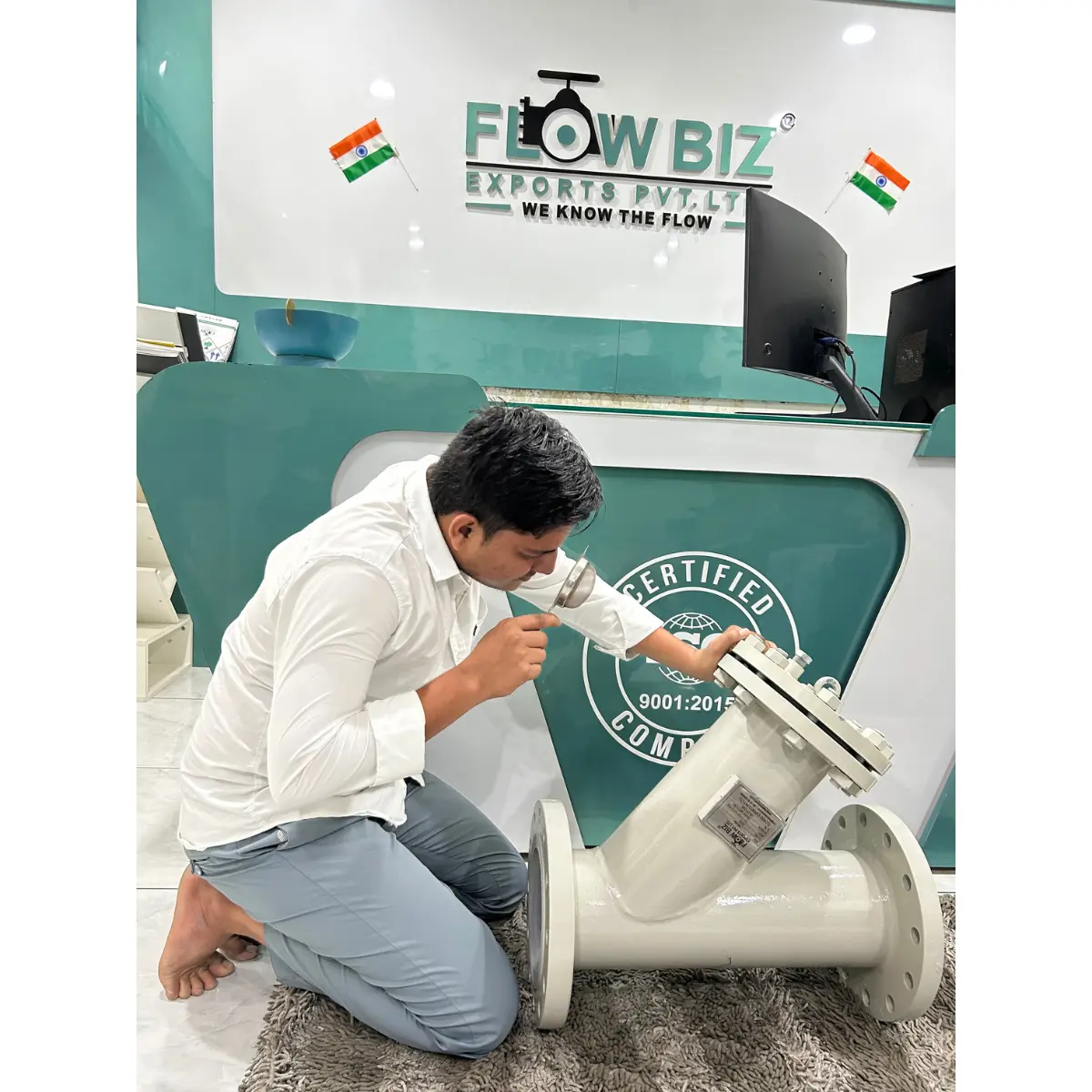

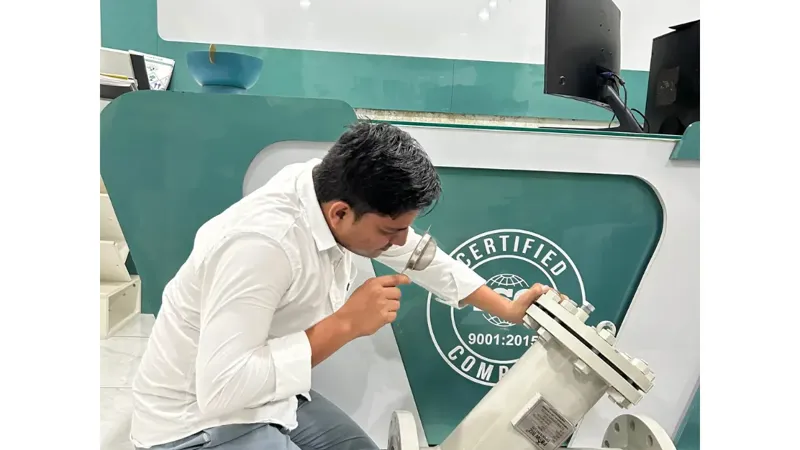

Defending Your Pipeline: The Ultimate Guide to MS Fabricated Y-Type Strainers
In the heavy-duty world of industrial piping, the smallest debris can lead to the costliest downtime. Whether it’s protecting high-end pumps or sensitive flow meters, the MS Fabricated Y-Type Strainer stands as the first line of defence for fluid systems.
At FlowBiz Export Private Limited, we specialize in engineering high-performance filtration solutions that balance structural integrity with flow efficiency. Here is why the fabricated Y-strainer is the preferred choice for large-scale industrial applications.
What is an MS Fabricated Y-Type Strainer?
Unlike cast strainers, which are limited by casting pattern sizes, Fabricated Y-Type Strainers are custom-engineered from Mild Steel (MS) pipes and plates. This manufacturing process allows for greater flexibility in terms of size, pressure ratings (such as Class 300#), and specific face-to-face dimensions.
Key Technical Specifications:
- Body Material: High-grade Mild Steel (MS) or Carbon Steel (IS:2062).
- Screen/Mesh: Stainless Steel 304 (SS304) for superior corrosion resistance.
- Pressure Ratings: Class 150#, Class 300#, and PN16/PN25.
- Design Standards: Manufactured in compliance with ASME B16.34 or manufacturer standards for fabricated units.
- Testing Protocol: Every unit undergoes rigorous API 598 hydrostatic and pneumatic testing to ensure zero leakage.
Why Choose Fabricated over Cast Strainers?
- Customization: Fabricated strainers can be tailored to fit existing pipeline gaps where standard cast units might fail to align.
- High-Pressure Durability: With heavy-wall MS construction, these units are ideal for Class 300# applications in steam, oil, and gas lines.
- Ease of Maintenance: The Y-configuration allows for debris removal without disconnecting the entire strainer from the flange.
- Cost-Effective for Large Sizes: For pipe diameters above 150mm (6 inches), fabrication is often more economical and faster to produce than large castings.
FlowBiz Quality Assurance: The MTC Advantage
Every MS Y-Type Strainer dispatched from our facility is accompanied by a Material Test Certificate (MTC). This document provides:
- Chemical Analysis: Detailed breakdown of Carbon, Manganese, and Silicon levels.
- Mechanical Testing: Verification of Yield Strength (Y.S), Tensile Strength (UTS), and Hardness (BHN).
- Hydrostatic Validation: Records of Shell and Seat tests (e.g., Shell test at 32 kg/cm²) to guarantee safety under pressure.
Strategic Supply: Serving Local and Global Markets
As a leading Industrial Strainer Manufacturer in India, FlowBiz operates a robust supply chain serving both domestic industrial hubs and international projects.
- Local Dominance (Gujarat & Maharashtra): We provide rapid delivery to chemical and pharma zones in Ahmedabad, Vapi, Dahej, and Mumbai.
- Global Export: Our products are trusted by process plants across Africa, Southeast Asia, and the Middle East, ensuring international standards like ASME B16.5 flange compliance.
Conclusion: Engineering Flow Assurance
Investing in a high-quality MS Fabricated Y-Type Strainer is an investment in the longevity of your plant. By removing scale, rust, and weld metal before they reach your equipment, you reduce maintenance costs and increase operational uptime.
Ready to upgrade your filtration system? Contact FlowBiz Export Private Limited today for a technical consultation or a competitive quote on our fabricated range.
