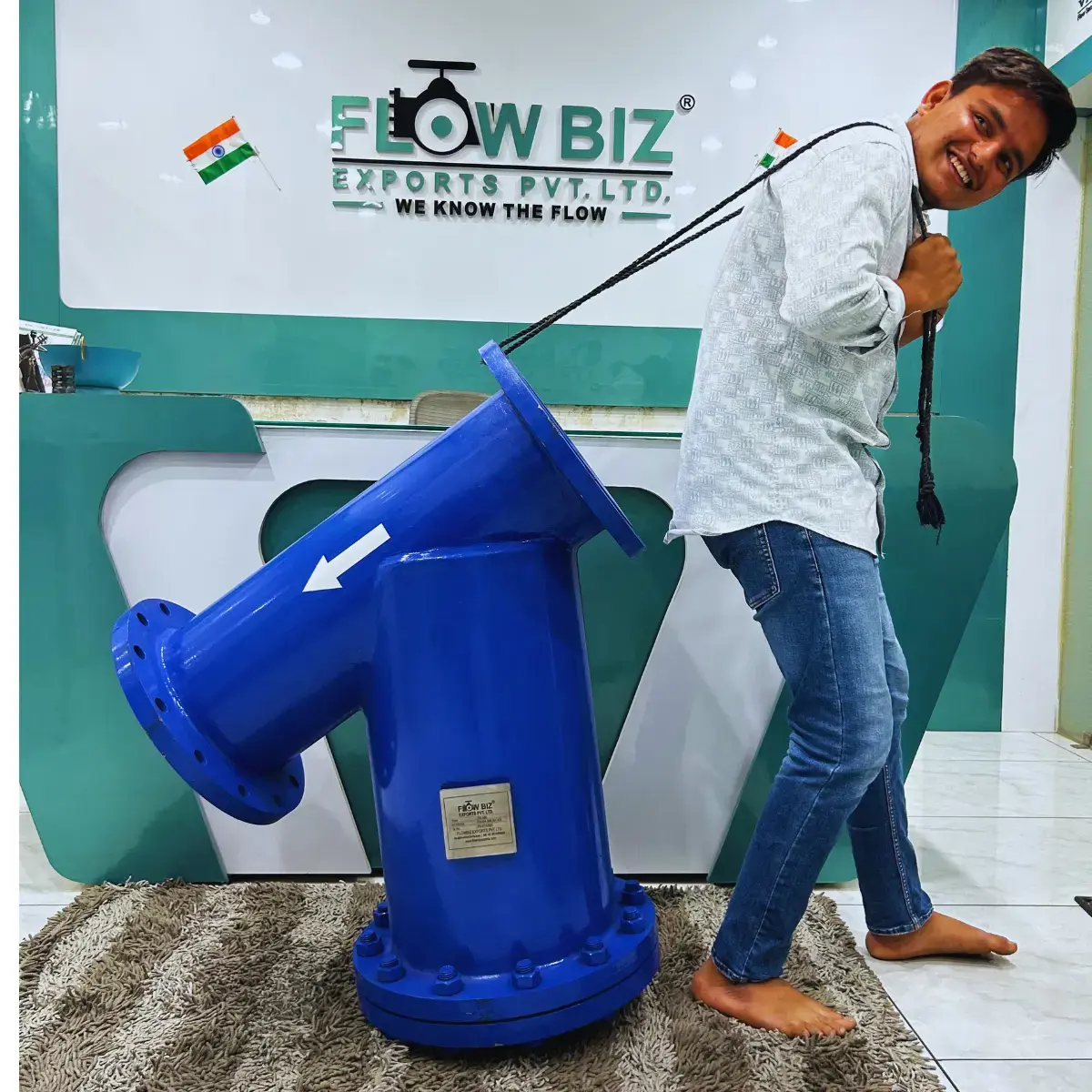

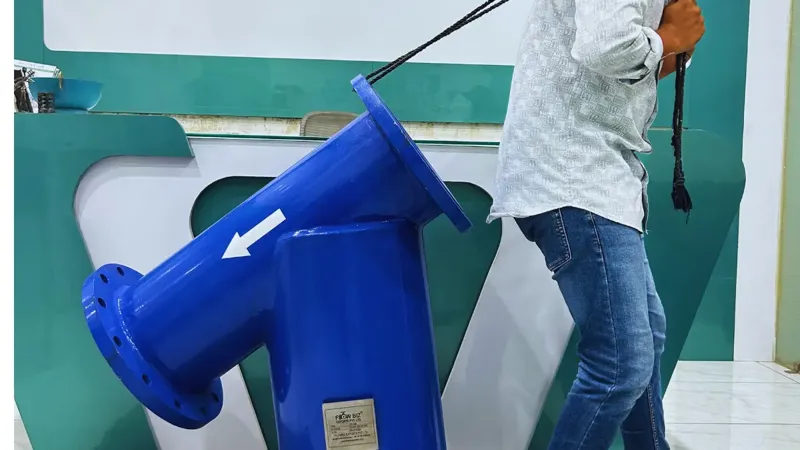

MS Fabricated Y-Type Strainers

The Essential Guide to MS Fabricated Y-Type Strainers: Engineering Purity in Industrial Piping

In the high-pressure world of industrial fluid handling, equipment longevity is directly tied to effective filtration. The MS Fabricated Y-Type Strainer serves as the primary guardian for downstream assets, ensuring that high-end pumps, turbines, and sensitive instrumentation remain shielded from the destructive impact of pipeline debris.

At FlowBiz Export Private Limited, we specialize in engineering high-integrity fabricated filtration solutions that bridge the gap between structural durability and flow efficiency.

What is an MS Fabricated Y-Type Strainer?

Unlike standard cast strainers, which are confined by the static dimensions of casting patterns, Fabricated Y-Type Strainers are custom-built from Mild Steel (MS) pipes and plates. This manufacturing method offers unparalleled flexibility in size, pressure ratings, and face-to-face dimensions, making it the ultimate choice for specialized industrial layouts and heavy-duty utility lines.

Technical Specifications & Construction

  • Body Material: Constructed from high-grade Mild Steel (MS) or Carbon Steel (IS:2062 / ASTM A106 Gr. B).
  • Screen/Filter Element: Outfitted with Stainless Steel 304 (SS304) or SS316 wire mesh for maximum corrosion resistance and mechanical strength.
  • Pressure Ratings: Precision-engineered for Class 150#, Class 300#, PN16, and PN25.
  • Design Compliance: Manufactured in strict accordance with ASME B16.34, ASME Section VIII Div 1, or specific manufacturer standards.
  • Testing Protocol: Every unit is subjected to rigorous API 598 hydrostatic and pneumatic testing to guarantee leak-proof performance under extreme conditions.

Why Fabrication is the Preferred Choice for Large-Scale Plants

  1. High-Pressure Durability: Featuring heavy-wall MS construction, these strainers are ideal for demanding Class 300# applications in steam, oil, gas, and petrochemical sectors.
  2. Bespoke Customization: Fabricated units can be adjusted to fit existing pipeline gaps (Face-to-Face dimensions), providing a perfect "drop-in" fit where standard cast units often fail.
  3. Operational Efficiency: The Y-configuration allows for rapid debris removal and "blow-off" cleaning without disconnecting the entire strainer from the flange, minimizing downtime.
  4. Scale and Economy: For pipelines exceeding 150mm (6 inches) to 600mm+, fabrication is typically faster to manufacture and more cost-effective than sourcing large-scale custom castings.

The FlowBiz Quality Standard: MTC Verification

In the B2B valve industry, reliability is backed by data. Every MS Y-Type Strainer shipped by FlowBiz is accompanied by a comprehensive Material Test Certificate (MTC) per EN 10204 Type 3.1. This documentation ensures full transparency through:

  • Chemical Analysis: A detailed breakdown of Carbon (C%), Manganese (Mn%), and Silicon (Si%) levels via spectrometer analysis to verify material grade.
  • Mechanical Testing: Physical verification of Yield Strength (Y.S), Ultimate Tensile Strength (UTS), and Hardness (BHN).
  • Hydrostatic Validation: Official records of Shell tests (e.g., 32 kg/cm² for Class 300) and Seat tests to ensure total system safety.

Strategic Supply Partner: Serving India and Global Markets

As a premier Industrial Strainer Manufacturer in India, FlowBiz leverages a sophisticated supply chain and strategically located offices to serve diverse industrial hubs.

  • Domestic Impact: We provide rapid delivery and on-site technical support to the chemical and pharmaceutical corridors of Ahmedabad, Vapi, Dahej, Bharuch, and Mumbai.
  • Global Footprint: Our products are trusted in process plants across Africa (Nigeria, Kenya, South Africa), Southeast Asia (Vietnam, Thailand), and the Middle East, adhering strictly to international standards like ASME B16.5 flange compliance.

Conclusion: Engineering Flow Assurance:

Choosing a high-quality MS Fabricated Y-Type Strainer is a long-term investment in your plant’s health. By intercepting scale, rust, and weld slag before they reach your machinery, you significantly reduce maintenance overhead and increase operational uptime.

Ready to protect your infrastructure with certified filtration? Contact FlowBiz Export Private Limited today for a technical consultation or a competitive quote on our full range of fabricated filtration solutions.
