In high-volume industrial pipelines, verifying the presence, direction, and colour of process fluids is non-negotiable. While transparent fluids can be difficult to track visually, specialized inline flow indicators offer a mechanical solution.

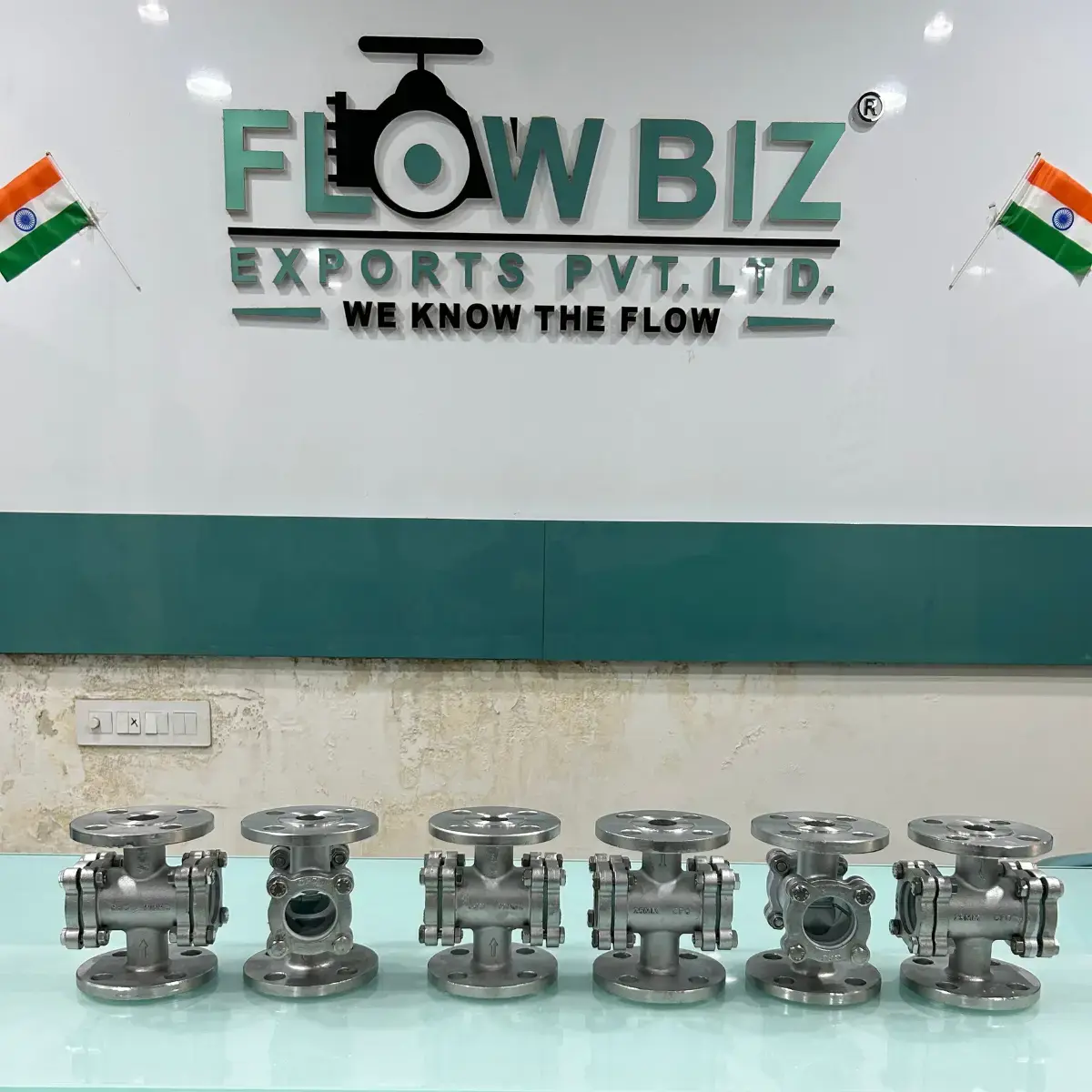

The Stainless Steel (SS) Double Window Sight Glass Flapper Type is an indicator engineered for both gas and liquid visualization. Featuring a hinged mechanical flap inside its chamber, this device gives operators an immediate indicator of fluid velocity and movement—even when monitoring clear or completely transparent process media.
As a premier global flow-control partner, FlowBiz Exports Pvt. Ltd. manufactures high-performance double-window sight flow indicators designed to meet strict industrial compliance protocols.
Technical Design & Working Principle
The construction of a flapper-type double window sight glass places two robust, tempered observation lenses opposite each other within a heavy-duty stainless steel frame.
How it Works:
- Static Phase: When there is zero fluid movement inside the pipeline, gravity keeps the internal stainless steel flapper hanging in a vertical, closed position.
- Dynamic Phase: As process fluid or gas begins to push through the system, the kinetic energy moves the hinged flap upward.
- Flow Measurement: The precise angle of the flapper correlates directly to the internal fluid velocity. This allows control room personnel or field walk-downs to easily check line status through the dual-viewing lenses.
Engineering Parameter | Technical Profile / Options |
Size Availability Range | 15 NB to 400 NB (1/2" to 16" pipe diameters) |
Body Material of Construction (MOC) | ASTM A351 CF8 (SS 304) / ASTM A351 CF8M (SS 316) / SS316L |
Internal Flapper Material | High-grade Stainless Steel matches the body metallurgy |
Observation Lens Type | Toughened Borosilicate Glass conforming to DIN 7080 |
Sealing Gaskets | Premium PTFE (Teflon) / Viton / Graphite Spiral Wound |
Maximum Operating Pressure | Up to 25 to 40 Kg/cm² (ASME Class 150 / Class 300) |
Maximum Thermal Threshold | Up to 200°C to 300°C (Based on sealing selections) |
End Connections Standard | Flanged Ends (ANSI B16.5, DIN, JIS) / Screwed NPT & BSP |
Comparative Evaluation: Advantages & Disadvantages
To help procurement officers and piping engineers balance performance against application requirements, the FlowBiz engineering desk has outlined the operational trade-offs below:
Advantages | Disadvantages |
Excellent Low-Flow Tracking: The hinged flapper reacts dynamically to subtle pressure drops, making it useful for tracking low-velocity gas or liquid systems. | Unidirectional Limitation: Standard flapper arrangements function effectively in only one flow path (Horizontal or Vertical-Upward). |
Dual Window Structural Redundancy: Opposite-facing windows allow ambient light to pass completely through, providing clean visibility compared to single-window designs. | Particle Sensitivity: Coarse construction debris, heavy scale, or slag can lodge inside the pin hinge, jamming the flapper. |
Zero Electrical Requirements: Functions as a self-contained mechanical instrument, making it safe for explosive or hazardous chemical zones. | Pressure Limitation: High-velocity line shocks can damage the internal assembly if the unit is not matched to the correct pressure class. |
Simple Visual Calibration: Operators can assess relative volume changes by watching the angle of the flapper without relying on external flow meters. | Regular Maintenance Needs: Particulate matter can cloud the glass over time, requiring routine cleanings or flushing. |
Primary Industrial Deployment
- Gas and Compressed Air Lines
Because gases are completely transparent, standard full-view indicators cannot show if lines are pressurized. The flapper design provides a simple mechanical confirmation for air, nitrogen, and process gas lines.
- Condensate and Steam Trap Sourcing
Installed downstream of industrial steam traps to verify proper condensate removal and isolate steam blowing faults before they compromise boiler efficiency.
- Oil Filtration & Lubrication Loops
Essential for chemical and manufacturing infrastructure to confirm that critical turbine bearings and high-pressure compressors receive uninterrupted oil flow.
Procurement & Global Supply by FlowBiz
FlowBiz Exports Pvt. Ltd. builds these flow instruments at our manufacturing core in Ahmedabad, Gujarat, with international logistics managed through our export office in Mumbai, Maharashtra.
Every sight glass undergoes rigorous hydrostatic shell pressure testing according to API 598 standards to guarantee leak-free service before shipping to clients across India, the Middle East, and European markets.
Need a Custom Quote?
Contact the FlowBiz Exports sales desk today to review your pipeline criteria, request standard dimensions, or order custom PTFE-lined variants for aggressive acid piping networks.
