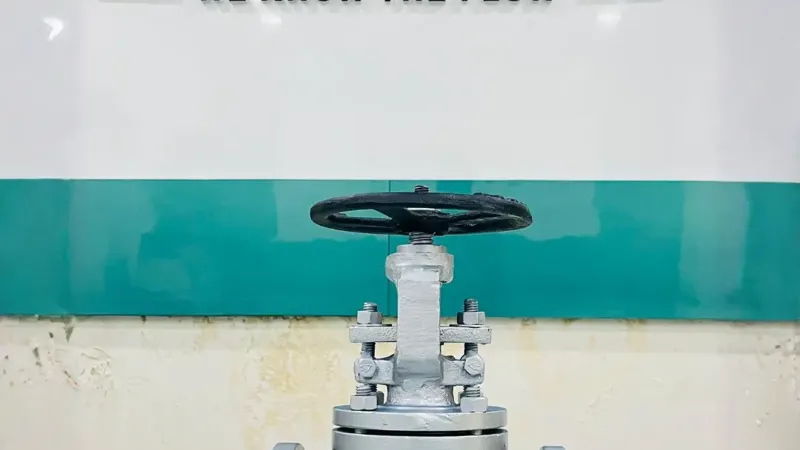

Precision Throttling Under Pressure: FlowBiz Flanged Cast Steel Globe Valves
When industrial pipelines demand rigorous flow regulation, standard isolation valves fall short. For reliable throttling, frequent operation, and absolute control over fluid velocity, the Flanged Cast Steel Globe Valve is the definitive industry standard.
FlowBiz is a premier manufacturer and supplier of heavy-duty cast steel globe valves. Engineered to manage high temperatures, extreme pressures, and volatile media, our valves provide the safety and sealing integrity modern processing plants require.
What Makes a Cast Steel Globe Valve Critical?
Unlike ball or gate valves designed primarily for fully open or fully closed isolation, a globe valve is specifically engineered for flow regulation and throttling.
The fluid changes direction as it passes through the valve body, moving upward against a horizontal plug. This unique internal geometry ensures linear, proportional flow control. By casting the body from high-grade steel (such as WCB or WC6), the valve gains the structural elasticity and strength needed to resist thermal expansion and high mechanical stress.
Why Choose FlowBiz Flanged Cast Steel Globe Valves?
At FlowBiz, we combine state-of-the-art manufacturing infrastructure with strict quality control protocols to deliver valves that excel in the field.
1. Superior Throttling and Regulating Characteristics
FlowBiz globe valves feature precision-machined plugs (discs) and seat rings. Whether your system requires a standard plug for general regulation, a needle plug for micro-metering, or a parabolic disc for linear flow characteristics, our designs ensure stable performance without fluid hammering.
2. Robust Cast Steel Construction (WCB & Beyond)
Our standard globe valves are cast from premium ASTM A216 Gr. WCB carbon steel, making them incredibly resilient in high-temperature utility systems. For more corrosive or extreme temperature applications, we offer alloys like WC6, WC9, and LCB/LCC to prevent body erosion and material degradation.
3. Leak-Proof Gland & Sealing Integrity
To eliminate fugitive emissions, FlowBiz utilizes die-formed flexible graphite packing rings with braided anti-extrusion wiper rings. The outside screw and yoke (OS&Y) rising stem design keeps the stem threads out of the process media, ensuring smooth mechanical operation and a long packing lifespan.
4. Hard-Faced Seating Surfaces (Stellited)
To combat the high velocity and wear associated with throttling, our globe valves come standard with Stellite#6 or 13% Cr hard-faced seating surfaces. This heavy-duty overlay protects the critical sealing zone against wire-drawing, erosion, and cavitation.
Technical Specifications at a Glance
Feature | Specification Details |
Design & Manufacturing Standard | BS 1873 / API 623 / ASME B16.34 |
Face-to-Face Dimensions | ASME B16.10 |
Flange Drilling Standard | ASME B16.5 (RF, RTJ) |
Size Range | 2" to 12" (Higher sizes available on request) |
Pressure Class Rating | Class 150, Class 300, Class 600 |
Body Material Options | ASTM A216 WCB, A352 LCB, A217 WC6 / WC9 |
Trim Material | API 600 Trim No. 1, 5, 8, 10, or custom |
Operation Type | Handwheel, Impact Handwheel, Gear Operated, or Actuated |
Primary Industrial Applications
FlowBiz flanged cast steel globe valves are deployed globally across demanding thermal and chemical utilities:
- Steam and Boiler Utilities: Managing high-pressure superheated steam loops and condensate lines.
- Oil & Gas Refineries: Regulating hydrocarbons and bypass lines around control valve stations.
- Chemical Processing: Controlling non-corrosive and moderately aggressive fluid transfers.
- Power Plants: Handling feedwater lines, thermal isolation, and cooling system regulation.
- Petrochemical Plants: Serving as robust isolation and throttling points for process gases.
The FlowBiz Quality Guarantee
Every FlowBiz flanged cast steel globe valve undergoes strict testing in accordance with API 598 standards, including shell hydrostatic testing, high-pressure closure testing, and low-pressure air seat testing. Our manufacturing line uses precision CNC machinery to ensure that tolerances on the seat-to-plug interface are flawlessly maintained.
Partnering with FlowBiz means securing reliable flow management, decreasing unexpected maintenance downtime, and installing absolute peace of mind along your pipeline.
Contact Our Engineering Experts
Need a reliable, high-performance throttling solution for your facility? Contact the FlowBiz technical sales team today to request a comprehensive catalog, technical drawings, or a competitive quotation for your project.
