Visual Process Assurance: High-Durability Double Window Sight Glasses by FlowBiz

In complex industrial piping networks, keeping a real-time visual check on process fluids is critical. Whether you need to verify flow direction, check for discoloration, or monitor downstream steam traps, relying blindly on electronic sensors isn't enough. You need absolute visual confirmation.

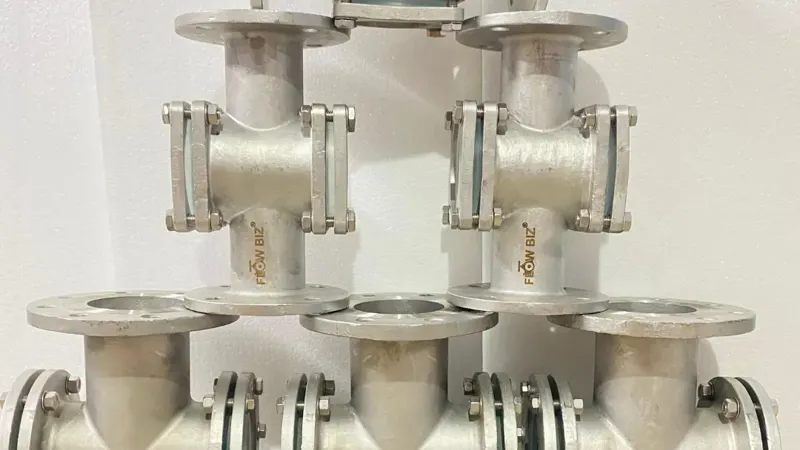

FlowBiz is a leading manufacturer of high-performance Double Window Sight Glasses (also known as Sight Flow Indicators). Designed to provide dual-sided, clear-through visibility under extreme system pressures and temperatures, our sight glasses deliver the structural safety and transparency that modern process lines demand.

Why a Double Window Design Matters

While standard single-window indicators are suitable for simple tanks, inline pipeline monitoring requires a more robust approach.

The primary engineering advantage of a double window sight glass is its opposite-facing dual portals. This layout allows ambient light to pass completely through the pipeline chamber. This high-contrast cross-illumination makes it significantly easier to evaluate fluid turbulence, tracking color changes, and detecting particulate contamination—even in dim, enclosed plant layouts.

Key Advantages of FlowBiz Double Window Sight Glasses

At FlowBiz, we design our inline sight flow indicators to balance heavy-duty containment with absolute clarity.

1. Crystal-Clear, High-Temperature Glass Options

We fit our sight glasses with premium, toughened Borosilicate Glass (conforming to DIN 7080) as standard. This material withstands extreme thermal shocks up to 280°C to 300°C and avoids chemical clouding from acids or alkalis. For extreme high-heat utilities, ultra-pure Quartz Glass options are available up to 1000°C.

2. Built-In Structural Safety Redundancy

Industrial safety is paramount. The robust metal body and dual-pane structure of our sight glass act as a defensive barrier. In the rare event that an external impact chips or stresses the primary lens, the opposing lens and heavy-duty frame maintain structural pressure integrity, preventing catastrophic blowout leaks.

3. Customized Internal Flow Indicators

To help track transparent liquids or low-velocity gases, FlowBiz provides a variety of internal media tracking mechanisms:

• Flapper Type: Features a hinged stainless steel mechanical flap that lifts proportionally with fluid velocity—perfect for horizontal or vertical-upward gas and liquid tracking.
• Rotator / Blade Type: Uses a spinning wheel indicator driven by fluid movement, making it highly effective for clear liquids.
• Plain Chute Type: Offers an unobstructed viewing path ideal for turbulent, multi-phase, or higher-viscosity flows.

4. Leak-Proof Sealing & Zero Contamination

Every glass pane is secured using precision-machined seats and premium PTFE, Viton, or graphite spiral wound gaskets. This design achieves bubble-tight inline sealing, dampens structural pipe vibrations, and prevents fugitive chemical emissions.

Technical Specifications at a Glance

Primary Industrial Deployments

FlowBiz double window sight glasses serve as reliable inspection touchpoints across critical process loops:

• Steam Trap Monitoring: Installed downstream of steam traps to instantly verify correct condensate drainage and isolate wasteful steam blow-through faults.
• Chemical & Pharmaceutical Lines: Ensuring process line purity, verifying fluid color consistency, and detecting contamination.
• Oil Filtration & Lubrication Loops: Visually verifying continuous lubricant flow and oil clarity to safeguard heavy machinery.
• Water & Wastewater Treatment: Continuous monitoring of water filtration phases, chemical dosing accuracy, and sludge lines.

The FlowBiz Quality Commitment

Every single Double Window Sight Glass manufactured by FlowBiz undergoes 100% hydrostatic shell pressure testing in strict accordance with API 598 parameters. Our advanced CNC manufacturing guarantees perfectly level, even torque across the retaining bolts, ensuring that the glass lenses are never subjected to uneven mechanical stress.

With a distribution network providing rapid technical support across major industrial zones, FlowBiz is your trusted manufacturing partner for pipeline safety and visual clarity.

Upgrade Your Process Visibility Today

Don't let line blockages or fluid contamination go unnoticed. Reach out to the FlowBiz engineering and technical sales team today to request a product catalog, dimensional drawings, or an optimized quote for your facility.
