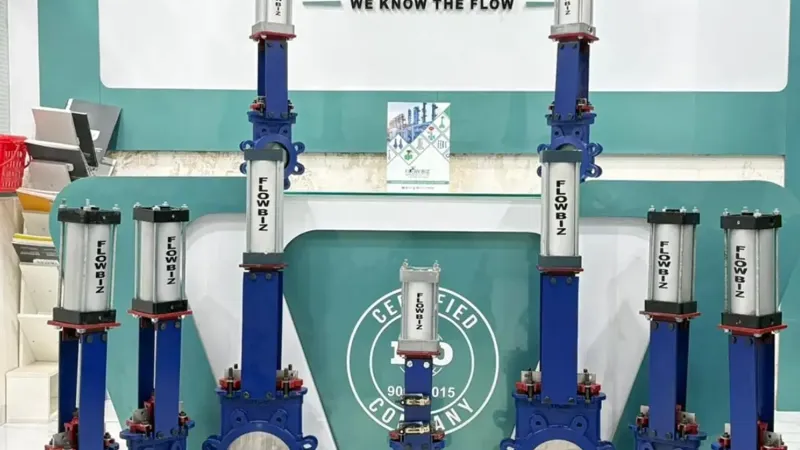

Heavy-Duty Automation: High-Performance Pneumatic Knife Gate Valves by FlowBiz
Handling thick slurries, abrasive powders, dry bulk solids, and highly viscous media requires a specialized class of valve. Standard gate valves quickly clog, jam, or fail under these grueling conditions. The definitive industrial solution is the Pneumatic Knife Gate Valve.
FlowBiz is a premier manufacturer and supplier of top-tier pneumatic knife gate valves. By pairing a razor-sharp gate design with heavy-duty pneumatic linear actuators, our valves provide lightning-fast, automated isolation for the most challenging fluid and solid handling systems.
The Engineering Advantage of a Pneumatic Knife Gate Valve
A knife gate valve features a sharp, chamfered blade that mechanically shears through thick materials, scale build-up, and heavy solids to create a tight seal.
By integrating a pneumatic cylinder actuator, manual labor is entirely eliminated. These valves run on compressed air, delivering high-speed open/close stroke cycles, remote control integration, and fail-safe automation options ideal for modern process facilities.
Why Choose FlowBiz Pneumatic Knife Gate Valves?
At FlowBiz, we engineer our automated knife gate valves to resolve the common pain points of abrasion, clogging, and actuator misalignment.
1. Self-Cleaning Shearing Design
The edge of the FlowBiz knife gate blade features a precision-machined bevel. As the pneumatic cylinder pushes the gate downward, it cleanly cuts through suspended solids, fibers, pulp, and sludge, clearing the sealing path and avoiding blockages inside the valve body cavity.
2. High-Speed, Reliable Pneumatic Actuation
Our integrated pneumatic cylinders are sized with ample safety torque factors. They deliver smooth linear motion, quick stroke times, and can be customized with double-acting or spring-return (fail-safe) configurations. Optional accessories include:
- Solenoid Valves: For remote electrical control.
- Limit Switches: For real-time open/closed position feedback in your control room.
- Proximity Sensors & Air Filter Regulators (AFR): To protect the pneumatic system and monitor performance.
3. Bidirectional & Unidirectional Options
Depending on your piping layout, FlowBiz offers both unidirectional and bidirectional sealing configurations. Our bidirectional models utilize a reinforced, perimeter-molded resilient seat that ensures bubble-tight shutoff against pressure differentials coming from either direction.
4. Rugged Materials for Extreme Wear
To counter the aggressive nature of slurry and mining media, we manufacture our valves using wear-resistant alloys:
- Body Elements: Cast Iron, Cast Steel (WCB), Stainless Steel (CF8, CF8M, CF3M).
- Gate Blades: Heavily polished SS304, SS316, or specialized hard-faced overlays to minimize friction and erosion.
- Resilient Seats: EPDM, Viton, Nitrile, or PTFE for chemically aggressive materials.
Technical Specifications at a Glance
Feature | Specification Details |
Design Standard | MSS SP-81 / AWWA C520 / ASME B16.34 |
Size Availability | 2" to 24" (Larger customized diameters available) |
Pressure Rating | PN10, PN16, Class 150 (Light & Heavy Duty Options) |
Actuator Type | Double-Acting / Single-Acting Pneumatic Cylinder |
Supply Air Pressure | 4 to 7 bar |
End Connections | Wafer, Lugged, Flanged End Style |
Testing Compliance | MSS SP-81 / API 598 Inspection & Testing |
Core Industrial Applications
FlowBiz pneumatic knife gate valves excel in environments where standard valves experience high failure rates:
- Pulp & Paper Plants: Shearing through dense paper stock, wood pulp, and fibrous slurries.
- Mining & Minerals Processing: Controlling highly abrasive iron ore tailings, coal slurries, and wash-plant media.
- Wastewater Treatment: Handling raw sewage, thick sludge, mud, and grit channels.
- Cement & Dry Bulk Handling: Controlling dry fly ash, cement powder, sand, and granular polymers.
- Chemical Utilities: Managing non-homogeneous mixtures, crystallization loops, and waste streams.
The FlowBiz Quality Edge
Every FlowBiz pneumatic knife gate valve undergoes precision testing prior to shipping. We verify cylinder performance, test pneumatic seal integrity under full pressure cycles, and conduct seat-leakage tests according to MSS SP-81 standards. The result is a highly reliable automated system that eliminates line clogs, extends maintenance intervals, and keeps your operations running efficiently.
Automate Your Pipeline Today
Maximize your system efficiency and eliminate downtime with FlowBiz automated valve solutions. Contact our engineering support and technical sales team today to discuss your media specifications, dimensional needs, or to receive a competitive quote.
