Driving Industrial Automation: Premium Pneumatic Actuated Ball Valves by FlowBiz Exports
In the fast-paced world of industrial processing, manual flow control is rapidly giving way to smart automation. To achieve high-speed operation, remote monitoring, and fail-safe safety protocols, engineering plants rely heavily on automated quarter-turn solutions.
FlowBiz Exports stands at the forefront as a premier pneumatic actuated ball valve manufacturer in India. We engineer integrated, high-precision automated valve packages designed to withstand extreme cycle frequencies, high pressures, and corrosive chemical media.
Understanding the Pneumatic Actuated Ball Valve Assembly

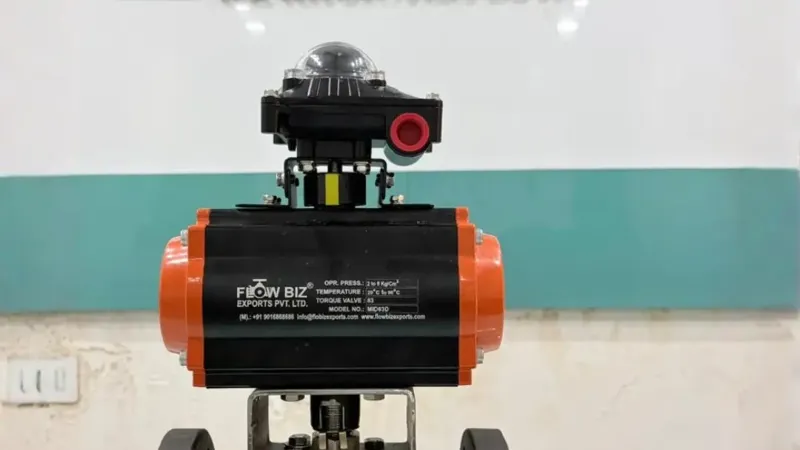

A pneumatic actuated ball valve combines a high-flow quarter-turn ball valve with a robust compressed-air-driven rotary actuator. Instead of a manual lever, the system uses pneumatic pressure applied to internal pistons or vanes to instantly rotate the valve stem by 90 degrees.
Why FlowBiz Exports is the Preferred Choice in India & Globally
At FlowBiz Exports, we don't just assemble parts—we engineer perfectly matched, factory-tested automated valve systems.
1. High-Performance Rack & Pinion Actuators
Our pneumatic actuators utilize an advanced rack-and-pinion design enclosed in a hard-anodized aluminum or stainless steel housing. This configuration ensures a compact footprint, linear torque output across the full 90-degree stroke, and an exceptionally long cycle life.
2. Versatile Automation Configurations
We customize our pneumatic ball valves based on your operational fail-safe requirements:
- Double-Acting (DA): Uses air pressure to both open and close the valve. Ideal for systems with stable air supplies requiring precise dual-direction control.
- Spring-Return (SR / Fail-Safe): Uses air pressure to move the valve in one direction and heavy-duty mechanical springs to instantly snap it shut (Fail-Close) or open (Fail-Open) if air pressure or electrical power fails.
3. Integrated Smart Accessories
To seamlessly bridge the gap between your pipeline and your Distributed Control System (DCS) or PLC, FlowBiz provides a fully equipped accessory suite:
- NAMUR Solenoid Valves (3/2 or 5/2 Way): For electronic pilot control.
- Limit Switch Boxes: For clear visual and electronic remote position feedback.
- Electro-Pneumatic Positioners (4-20mA): For precise throttling and modulating control rather than simple on/off isolation.
4. Rugged Construction and Zero-Leakage Sealing
Our ball valves feature ISO 5211 direct-mounting pads to eliminate alignment errors between the actuator and stem. Available in Stainless Steel (CF8/CF8M) and Carbon Steel (WCB), our valves use premium PTFE, TFM, or metal-to-metal seating to ensure bubble-tight shutoff.
Technical Specifications at a Glance
Feature | Specification Details |
Valve Design Standard | ASME B16.34 / API 6D / ISO 17292 |
Actuator Standard | ISO 5211 / NAMUR VDI/VDE 3845 |
Size Range | 1/2" to 12" (Flanged & Screwed variants) |
Pressure Class | ASME Class 150, Class 300 / PN16 to PN64 |
Actuator Type | Pneumatic Rack & Pinion (Double Acting / Single Acting) |
Air Supply Pressure | 2.5 bar to 8 bar max |
Body Materials | ASTM A216 WCB, ASTM A351 CF8 / CF8M / CF3M |
Primary Industrial Applications
FlowBiz Exports pneumatic actuated ball valves are trusted across a diverse range of automated utilities:
- Chemical & Process Industries: Safe, remote handling of volatile, acidic, and hazardous fluids.
- Water & Wastewater Automation: Automated water distribution, chemical dosing, and filtration management.
- Oil & Gas Utilities: Rapid isolation along fuel lines, tank farms, and blending systems.
- Pharmaceuticals & Food Processing: High-purity fluid management utilizing sanitary stainless steel designs.
- Power & Manufacturing Plants: Managing rapid-on/off cooling loops and pneumatic conveyor air lines.
The FlowBiz Exports Quality Guarantee
Every automated valve package manufactured by FlowBiz Exports undergoes rigorous testing before shipment. We perform comprehensive hydrostatic seat and shell tests (API 598) alongside functional pneumatic cycle tests. This ensures that the actuator torque, accessory calibration, and valve sealing operate in perfect harmony right out of the box.
As a trusted exporter from India, FlowBiz Exports combines world-class engineering standards with competitive pricing to keep your plant automated, efficient, and completely safe.
Empower Your Infrastructure with FlowBiz Automation
Ready to elevate your pipeline efficiency with robust pneumatic ball valves? Contact the FlowBiz Exports technical engineering team today to receive a customized quote, dimensional drawings, or comprehensive technical consulting for your upcoming project.
