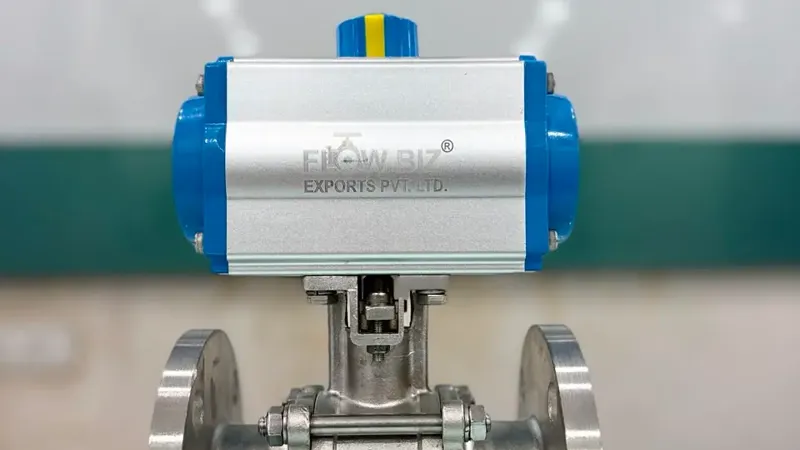

Automated Fluid Control: Pneumatic Double-Actuated 3-Piece Ball Valves by FlowBiz Exports Pvt. Ltd.

In modern industrial processing, system efficiency relies heavily on high-speed automation and robust flow control. Standard manual isolation valves often struggle to keep pace with high-cycle automated lines, leading to potential process lags or costly downtime.

FlowBiz Exports Pvt. Ltd. addresses this critical requirement with our specialized Pneumatic Double-Actuated 3-Piece Ball Valves. Precision-engineered at our advanced manufacturing hubs in India, these automated quarter-turn units combine heavy-duty metallurgy with smooth pneumatic torque dynamics. They are purpose-built to deliver fast, bubble-tight on/off regulation across severe-service pipeline infrastructures globally.

Technical Specifications & Compliance Matrix

Every automated valve package is fully integrated, calibrated, and multi-parameter tested to satisfy strict international pipeline and pressure vessel codes:

Double-Actuated Mechanical Flow Dynamics

The underlying mechanics of a double-actuated pneumatic system rely on active, dual-sided control. Unlike single-acting spring-return variations—which lose kinetic force as the mechanical spring decompresses—double-actuated configurations maintain uniform torque throughout the entire 90-degree rotational stroke.

When plant instrument air is fed into Port A, it drives the internal balanced dual pistons outward along a precision-machined rack-and-pinion assembly, turning the stem counter-clockwise to open the line. When air is directed into Port B, it forces the pistons inward, driving the stem clockwise to seal the valve. This balanced pneumatic operation provides quick cycle times and completely removes the risk of internal spring fatigue or mechanical failure.

Strategic Design & Core Operational Advantages

Specifying FlowBiz double-actuated three-piece ball valves provides automated process loops with clear mechanical, structural, and financial advantages:

1. High-Torque Double-Actuated Automation

Because our units utilize plant air pressure to power both the opening and closing cycles, they supply steady torque over extended operational lifespans. This continuous power makes them well-suited for pipelines carrying viscous media or handling unexpected line pressure spikes, where automated valves must operate reliably without sticking.

2. 3-Piece Inline Serviceability

In high-cycle automated systems, soft valve seats will eventually experience normal wear. With a standard 1-piece or 2-piece valve layout, maintenance crews must cut the unit out of the line or break heavy pipeline connections. The FlowBiz 3-Piece Ball Valve splits the main housing into two fixed flange ends and a removable center block. Technicians simply remove the body bolts and swing the center segment out to replace seats and seals quickly, leaving the flange ends securely in the pipe to minimize plant downtime.

3. Traceable CF8M (SS316) Metallurgy

The pressure-retaining body shell and internal ball are cast from premium, trace-verified CF8M stainless steel. The presence of molybdenum gives CF8M exceptional resistance to chloride pitting, crevice corrosion, and chemical erosion. This heavy-duty metallurgy preserves the mirror-smooth finish of the ball, ensuring low operating torque and preventing seat scoring over years of continuous service.

4. Hard-Anodized Actuator Protection

To protect the automation package from harsh external elements, the pneumatic actuator body is treated with an advanced hard-anodized protective finish. This industrial coating shields the aluminum alloy components from aggressive chemical vapors, ambient humidity, and acid splashes, preventing exterior corrosion.

High-Cycle Automated Cross-Sector Performance

Our pneumatic double-actuated three-piece ball valves provide durable, obstruction-free flow control for diverse media—including Water, Corrosive Chemicals, Gases, Volatile Solvents, and Utilities—across multiple sectors:

• Chemical Processing Plants & Refineries: Safely manages high-frequency isolation for reactive organic compounds, industrial acids, chemical blending headers, and hot hydrocarbons.
• Water Treatment & Desalination Facilities: Delivers dependable automation for high-salinity brackish water circuits, chemical dosing lines, filtration backwash networks, and wastewater processing.
• Pharmaceutical & Clean Utility Networks: Offers smooth full-bore fluid tracking, minimal line pressure drops, and zero fluid hold-up inside high-purity batch production systems.

Frequently Asked Questions (FAQs)

Q: Why is a double-actuated pneumatic configuration preferred over a spring-return alternative?

A: A double-actuated actuator utilizes active compressed air to move the valve in both directions, which yields consistent operating torque throughout the entire stroke. This balanced torque profile often allows you to select a smaller, more cost-effective actuator size for your valve. Spring-return (single-acting) actuators must use extra force to compress heavy internal springs during the air stroke, and they rely entirely on those springs to close. If your system layout does not require a specific mechanical fail-safe position during a total loss of plant air pressure, a double-actuated valve is the more efficient, compact, and low-maintenance option.

Q: What advantages does the full-bore design of the FlowBiz ball valve provide?

A: Our full-bore ball valves are engineered so that the internal diameter of the ball port matches the inside diameter of the connecting pipeline perfectly. When the valve is in the fully opened position, the fluid flows straight through a smooth, unobstructed path. This geometry eliminates fluid turbulence, minimizes internal pressure drop, and prevents abrasive wear along the seating boundaries, maximizing overall system efficiency.

Q: How does the visual position tracking indicator benefit plant operations?

A: Every automated valve assembly features a highly visible, two-color beacon pointer located on top of the actuator stem. This high-contrast indicator allows field technicians to easily confirm whether the valve is fully open or closed from a distance. This immediate visual tracking helps prevent line coordination errors and improves safety in busy processing environments.

Q: Why partner with FlowBiz Exports Pvt. Ltd. as your long-term process automation partner?

A: FlowBiz Exports Pvt. Ltd. balances precision industrial engineering with strict compliance to global validation benchmarks like ASME B16.5 and API 598 testing protocols. By combining traceable, high-grade metallurgies (such as CF8M stainless steel) with robust double-acting actuators, custom-tailored seal packages, and dependable pan-India and international logistics support, we eliminate operational risks in the field. Our focus on reducing maintenance downtime and providing long-lasting, high-cycle automated valves makes us a trusted supply chain partner for critical process needs worldwide.
