Mastering High-Pressure Isolation: Premium Forged Steel Gate Valves by FlowBiz Exports
In severe industrial processing lines handling superheated steam, high-pressure hydrocarbons, and volatile gases, structural vulnerability is not an option. Standard cast valves can contain micro-porosities that fail under extreme thermal shock or intense cyclical pressure pressures. For absolute mechanical integrity and tight isolation in compact pipelines, engineering plants depend on forged metallurgy.
FlowBiz Exports is an industry-leading forged steel gate valve manufacturer in India. We engineer heavy-duty, compact forged gate valves designed to deliver bubble-tight shutoff, excellent wear resistance, and long-term sealing reliability across critical high-pressure and high-temperature utility systems.
Anatomy of the FlowBiz Forged Steel Gate Valve

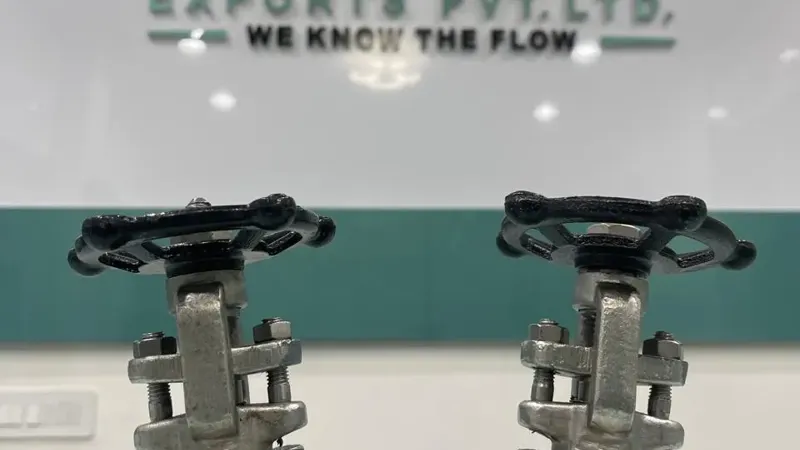

As showcased in our precision engineering lineup (Models FB-3803 and FB-3811), our 20mm (3/4") forged gate valves are built for severe-service applications. Featuring an outside screw and yoke (OS&Y) design with a rising stem and a sturdy handwheel, these valves are optimized for reliable on/off isolation.
Why FlowBiz Exports is the Trusted Choice in India & Globally
At FlowBiz Exports, we combine elite forged metallurgy with precision machining to create valves that easily outperform common castings.
1. Superior Void-Free Forged Metallurgy
Our valve bodies and bonnets are forged using premium grade carbon steel (A105) or stainless steel alloys. The high-pressure forging process refines the internal grain structure of the metal, eliminating internal voids, gas pockets, and cooling defects. This yields maximum structural density and resistance to pipeline fatigue.
2. Compact Outside Screw & Yoke (OS&Y) Design
The OS&Y configuration keeps the stem threads entirely outside the flow of aggressive process fluids. This protects the actuation threads from corrosion, media scaling, and thermal expansion while allowing easy lubrication. The rising stem provides an immediate visual indicator of whether the valve is open or closed.
3. High Pressure Class 800 Performance
Engineered for demanding utility lines, our compact forged gate valves are built to handle standard Class 800 pressures. They are available in versatile end connections to match your piping specifications:
- Socket Weld (SW Ends): Prevents leak paths in high-vibration systems.
- Screwed / Threaded (NPT/BSP Ends): Provides easy installation for compact instrumentation and utility loops.
4. Precision Hard-Faced Trim Kits
To combat the erosive effects of high-velocity steam and hydrocarbons, the internal gates and seats feature precision-ground finishes and hard-faced trim configurations (such as Stellite or 13% Cr). This prevents galling, reduces operating torque, and guarantees a tight fluid seal over thousands of operation cycles.
Technical Specifications at a Glance
Feature | Specification Details |
Design & Valve Standards | API 602 / BS 5352 / ASME B16.34 |
Testing Standards | API 598 (Hydrostatic & Pneumatic Proofing) |
Size Availability Range | ½" to 2" (DN15–DN50) |
Pressure Class Rating | Class 800, Class 1500 |
Materials of Construction (MOC) | ASTM A105 (Carbon Steel), ASTM A182 F304 / F316 (Stainless Steel) |
Bonnet Construction Profile | Bolted Bonnet (Standard), Welded Bonnet (Severe Leak-Proof) |
End Connections | Socket Weld (ASME B16.11), Screwed End (ANSI B1.20.1 NPT) |
Primary Industrial Deployments
FlowBiz Exports forged steel gate valves are crucial manual isolation points across punishing industrial utilities:
- High-Pressure Steam & Boiler Utilities: Safe isolation along main steam lines, condensate return lines, and boiler blowdown systems.
- Oil & Gas Petrochemical Lines: Reliable management of refined petroleum products, gases, and high-temperature hydrocarbons.
- Power Generation Facilities: High-integrity utility drain lines, sampling manifolds, and feed-water isolation loops.
- Chemical Processing Utilities: Corrosion-resistant containment using premium forged stainless steel ($A182\text{ }F316$) bodies.
The FlowBiz Exports Quality Guarantee
Every forged steel gate valve package manufactured by FlowBiz Exports undergoes exhaustive testing before shipment. We perform comprehensive hydrostatic seat, shell, and backseat tests (API 598 compliance) to ensure pressure containment. Our strict quality metrics verify that both the body forging and the precise machining of the gate seating faces function flawlessly under extreme pressures right out of the box.
As a trusted manufacturer and exporter from India, FlowBiz Exports combines heavy-duty manufacturing with strict dimensions to keep your facility safe, leak-free, and running continuously.
Secure Superior Forged Safety Today
Ready to eliminate pipeline risk with robust forged steel isolation valves? Contact the FlowBiz Exports technical engineering team today to receive a prompt technical quote, custom dimensional drawings, or an in-depth product catalog.
