Mastering Corrosive Flow Control: Premium Stainless Steel Butterfly Valves by FlowBiz Exports
When pipeline networks handle aggressive chemicals, food-grade ingredients, treated water, or high-velocity utilities, rust and material degradation cannot be tolerated. Standard cast iron valves risk fluid contamination and premature seal blowout due to localized pitting corrosion. For ultimate process hygiene, long-term structural integrity, and minimal fluid resistance, modern process layouts rely on high-grade stainless steel metallurgy.
FlowBiz Exports is an industry-leading stainless steel butterfly valve manufacturer in India. We engineer elite manual and automated quarter-turn valves that combine high-purity alloy bodies with rugged operation mechanisms to deliver superior isolation performance across demanding industrial environments.
Anatomy of the FlowBiz Stainless Steel Manual Butterfly Valve

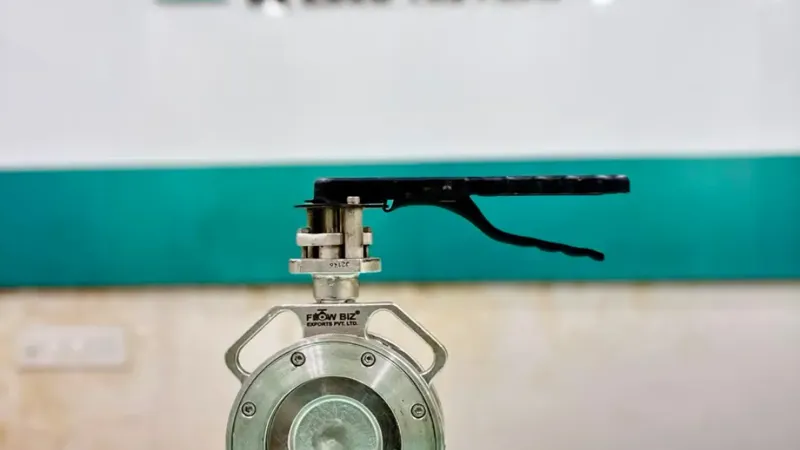

As displayed in our production line image, our stainless steel butterfly valves utilize an ultra-compact wafer style body with dual integrally cast alignment loops. Operation is handled by a heavy-duty, multi-position manual notch plate and hand lever mechanism, allowing technicians to lock the internal disc into precise throttling or full-isolation orientations.
Why FlowBiz Exports is the Trusted Choice in India & Globally
At FlowBiz Exports, we combine rigorous surface polishing with premium structural alloys to design quarter-turn valves that outlast standard industry variants.
1. High-Purity Stainless Steel Metallurgy
Our entire valve body, shaft, and internal disc assembly are manufactured from solid stainless steel—typically ASTM A351 CF8 (SS304) or CF8M (SS316). As illustrated in the file, this gives the valve a clean, highly polished metallic finish that stands up against pitting from chlorine, sanitizing chemicals, organic acids, and corrosive vapors.
2. Space-Saving Concentric Wafer Profile
The sleek wafer body is engineered to slip neatly between standard pipeline flanges. This face-to-face design significantly cuts down the physical footprint and overall weight of the piping manifold compared to bulky gate or ball valves, saving substantial structural space and installation costs.
3. Precision Ergonomic Notched Hand Lever
The manual notch handle gives operators full visual and mechanical control over the internal disc sweep. The rugged spring-loaded lever clicks firmly into individual teeth along the throttling plate, allowing precise manual control of flow volume while preventing the fluid velocity from shifting the disc out of place.
4. Zero-Leakage Resilient Seating Options
To guarantee a true bubble-tight shutoff, our stainless steel discs press uniformly into high-performance elastomeric or polymer seats (including EPDM, Viton, Nitrile, or Virgin PTFE). This combination keeps operating torque low, isolates the valve body from friction wear, and guarantees total sealing integrity under full differential pressures.
Technical Specifications at a Glance
Feature | Specification Details |
Design & Valve Standards | API 609 / BS EN 593 / ASME B16.34 |
Testing Standards | API 598 (Dual-Sided Hydrostatic & Pneumatic Testing) |
Size Availability Range | 1.5" to 24" (DN40 to DN600 Larger sizes upon request) |
Pressure Class Compatibility | ASME Class 150 / PN10 / PN16 |
Materials of Construction (MOC) | ASTM A351 CF8 (SS304), CF8M (SS316), CF3M (SS316L) |
Seat Material Availability | PTFE (Teflon), EPDM, Viton, Silicon (Food-Grade) |
Actuation Adaptability | Bare Stem ISO 5211 Pad for Gear, Pneumatic, or Electric Upgrades |
Primary Industrial Deployments
FlowBiz Exports stainless steel wafer butterfly valves are critical components across severe-service industries:
- Pharmaceutical & Biotech Infrastructure: Handling ultra-pure water loops, clean-in-place (CIP) lines, and utility distribution.
- Food, Beverage & Dairy Processing: Regulating raw fluid transfers and batch mixing while preventing bacterial colonization.
- Desalination & Water Treatment: Resisting chloride corrosion in brackish water processing, chemical dosing, and reverse osmosis loops.
- Chemical Processing Utilities: Safely managing weak acids, organic solvents, and corrosive chemical raw ingredients.
The FlowBiz Exports Quality Advantage
Every stainless steel butterfly valve manufactured by FlowBiz Exports undergoes a series of precise pressure checks before leaving our factory floor. In strict compliance with API 598 quality standards, we execute rigorous shell pressure tests and positive seat leak verifications. This attention to detail guarantees that the internal disc edge seats seamlessly against the liner, giving you smooth mechanical operation and a complete, zero-leak seal the moment the valve is deployed on your processing line.
As a prominent industrial valve manufacturer and global exporter from India, FlowBiz Exports delivers superior engineering and competitive pricing to keep your production facilities running efficiently.
Upgrade to Stainless Steel Sealing Today
Ready to protect your fluid purity and defeat pipeline corrosion with premium stainless steel wafer butterfly valves? Contact the FlowBiz Exports technical sales team today to secure a prompt technical quote, dimensional drawings, or an extensive product catalog.
