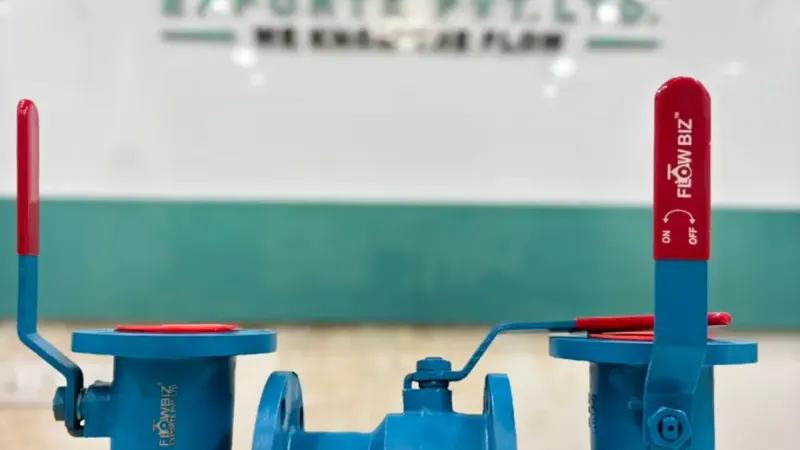

Single Piece Flanged Ball Valve Manufacturer India | FlowBiz Exports

In industrial piping networks, eliminating potential leak paths while managing fluid flow efficiently is a top priority. Conventional multi-piece valves utilize body joints that can weaken over time under fluctuating thermal cycles and vibration.

As a premier single piece flanged ball valve manufacturer in India, Flowbiz Exports Pvt. Ltd. provides an incredibly rigid, ultra-reliable flow control solution. Engineered with a solid, one-piece body casting, our flanged ball valves offer exceptional structural integrity and leak-proof performance across critical liquid, gas, and steam utilities.

Here is a detailed guide highlighting the technical excellence, features, and advantages of the Flowbiz Single Piece Flanged Ball Valve.

What is a Single Piece Flanged Ball Valve?

A Single Piece Flanged Ball Valve (often referred to as a 1-piece ball valve) features a solid, unibody construction. Unlike 2-piece or 3-piece variants, the entire valve body is cast or forged from a single piece of metal. The internal ball, stem, and seats are inserted through an end-entry port, which is then secured by a low-profile threaded retainer or insert.

Equipped with integrated flanged ends, this valve connects seamlessly into standard pipeline assemblies, providing space-saving isolation with minimal maintenance.

Key Features & Design Excellence

Flowbiz builds every single piece ball valve to meet the most exacting industrial safety and performance standards:

• Unibody Minimalist Design: The absence of body bolts and mid-body gaskets eliminates external joint leak paths completely, making it ideal for managing toxic, volatile, or hazardous media.
• Reduced Bore Efficiency: Engineered with a slightly smaller internal port size compared to the pipeline diameter. This design provides robust flow throttling capabilities, a lower operational torque requirement, and a highly economical design profile.
• Integrated Heavy-Duty Flanges: Formed as a singular piece with the valve body, the flanged connections offer exceptional resistance to pipeline warping, heavy thermal stress, and bending forces.
• Blow-Out Proof Stem Assembly: The valve stem is loaded from the inside, ensuring that it cannot be displaced or blown out under high internal line pressures.
• Ergonomic Quartz-Turn Lever: Outfitted with a durable, easy-grip lever handle wrapped in a signature protective sleeve with stark "ON" and "OFF" directional markings for fast manual actuation.

Technical Specification Snapshot

How the Valve Optimizes Pipeline Performance

The unibody configuration of the Flowbiz Single Piece Ball Valve ensures streamlined operation:

1. Sturdy Open State: When aligned to the open position, fluids pass cleanly through the reduced bore. The single-piece body ensures no pressure loss through flexing structural components.
2. Instant Zero-Leak Shutoff: A swift 90-degree manual rotation presses the floating ball firmly against premium PTFE seats. Line pressure naturally pushes the ball downstream into the seat, forming a tight, leak-proof seal.
3. Enhanced Maintenance Profiles: Because there are no body bolts to stretch or retorque over time, plant operators save valuable maintenance hours during routine shutdowns.

Primary Industrial Applications

Flowbiz Single Piece Flanged Ball Valves are highly favored in spaces where structural compactness and minimal leak risks are mandatory:

• Petrochemical and Refining Plants: Safe handling of light hydrocarbons, fuel oils, and low-pressure gas distributions.
• Chemical Lined Utilities: Managing utility lines, heating jackets, and cooling circuits running around active chemical reactors.
• Water Treatment & HVAC Systems: Reliable isolation for municipal water, chilled water loops, and air conditioning lines.
• Pulp and Paper Industry: Perfect for handling clean water, low-viscosity starches, and additives.
• OEM Piping Skids: Ideal for tight-space installations within modular compact process skids.

Why Partner with Flowbiz Exports?

Choosing Flowbiz Exports Pvt. Ltd. means choosing a standard of engineering that leaves nothing to chance. True to our corporate motto, "We Know the Flow," we perform strict fire-safe, shell, and seat pneumatic and hydraulic pressure tests on every valve before it is packaged for dispatch. When you trust Flowbiz with your flow control requirements, you secure absolute durability, minimal maintenance footprints, and superior reliability for your industrial processes.
