Forged Steel Gate Valve Manufacturer India | FlowBiz Exports

In high-pressure and high-temperature industrial piping networks, material integrity is paramount. While cast valves are suitable for standard utilities, severe-service pipelines handling volatile, superheated, or corrosive media demand a much tougher solution. Micro-porosities inherent in castings can fail under extreme stress, making structural density non-negotiable.

As a leading forged steel gate valve manufacturer in India, FlowBiz Exports Pvt. Ltd. provides premium, high-density flow isolation solutions. Precision-machined from solid forged blocks, our valves are engineered to offer ultimate structural safety, zero-leak performance, and long operational lifecycles under extreme industrial stress profiles.

Here is a comprehensive breakdown of the technical advantages, design features, and structural superiority of the FlowBiz Forged Stainless Steel Gate Valve.

What is a FlowBiz Forged Steel Gate Valve?

A Forged Steel Gate Valve is a heavy-duty, compact isolation valve designed for fully open or fully closed service in small-bore pipelines. Unlike cast valves, the forging process refines the grain structure of the metal, dramatically increasing its resistance to thermal shocks, mechanical impacts, and high internal pressures.

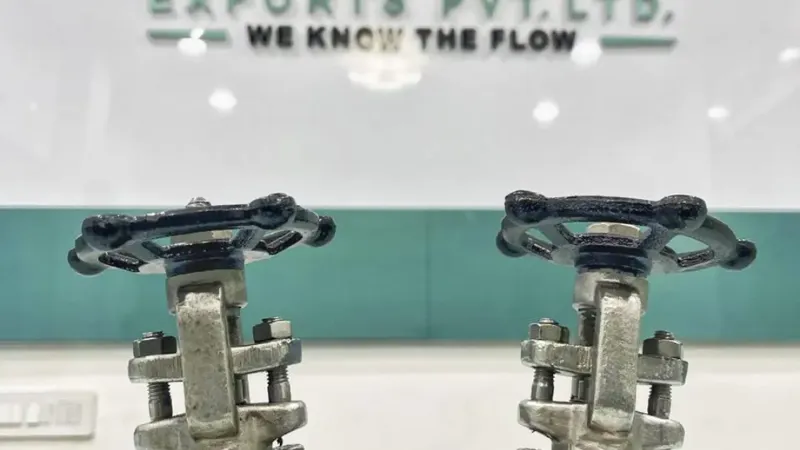

Featuring an OS&Y (Outside Screw and Yoke) rising stem configuration, this valve isolates flow by dropping a precision-ground solid wedge perpendicular to the fluid stream. The model displayed above highlights high-purity ASTM A182 F304L forged stainless steel construction, making it perfectly suited for aggressive environments.

Key Features & Design Excellence

FlowBiz builds every forged valve to surpass rigid API and ASME quality standards. Key design elements include:

• Superior Forged Structural Density: Manufactured from premium ASTM A182 F304L/F316L or A105 bar stock. This guarantees zero internal porosity and maximum resistance to high mechanical stresses.
• OS&Y Rising Stem Design: The stem threads sit completely outside the fluid media zone, protecting them from chemical corrosion or process particulate build-up while offering a clear visual indicator of the valve’s open/closed state.
• Heavy-Duty Bolted Bonnet: Outfitted with a high-integrity bolted bonnet joint and heavy-duty gland studs to allow simple inline repacking and straightforward maintenance during routine plant turnarounds.
• Low Carbon Resilient Metallurgy: The "L" grade stainless steel (F304L) minimizes harmful carbide precipitation during welding, preserving excellent corrosion resistance at heat-affected pipe junctions.
• Secure Compact Ports: Designed with a compact, rugged layout featuring threaded (NPT/BSP) or Socket Weld (SW) end connections to ensure a high-tightness, leak-proof integration into small-bore piping skids.

Technical Specification Snapshot

Operational Safety Mechanics

The internal engineering of the FlowBiz Forged Gate Valve ensures absolute line isolation:

1. Streamlined Open Path: When the handwheel is rotated counter-clockwise, the rising stem lifts the wedge entirely out of the flow path, allowing process fluid to pass through with minimal pressure drop or turbulence.
2. High-Tightness Closure: Turning the handwheel clockwise drives the solid wedge down between two matching angled seats. The mechanical force provides a tight, uniform seal across both upstream and downstream faces.
3. Backseat Capability: Every valve includes an integral backseat design, allowing operators to safely isolate the stuffing box from line pressure when the valve is fully open.

Primary Industrial Applications

FlowBiz Class 800 Forged Gate Valves are highly trusted to protect systems across severe industrial sectors:

• Oil & Gas Refining: Safe isolation of high-pressure hydrocarbons, crude oils, and natural gas tracking lines.
• Petrochemical & Chemical Plants: Managing highly corrosive fluids, process reagents, and active organic acids.
• Power Generation Facilities: Controlling high-pressure boiler feed-water, superheated steam lines, and condensation loops.
• Cryogenic & Gas Utilities: Providing dependable isolation in low-temperature liquid gas storage transfer panels.
• Modular Process Skids: Ideal for compact, space-restricted integration inside automated dosing, filtration, and pump skids.

Why Partner with FlowBiz Exports?

Choosing FlowBiz Exports Pvt. Ltd. means integrating premium manufacturing integrity into your plant's infrastructure. Living up to our core commitment, "We Know the Flow," every forged steel gate valve undergoes rigorous high-pressure hydrostatic shell and seat testing to guarantee zero-leak reliability. Our unyielding dedication to high-purity metallurgy and tight machining tolerances delivers an exceptionally durable asset that minimizes operational downtime and maximizes plant safety.
