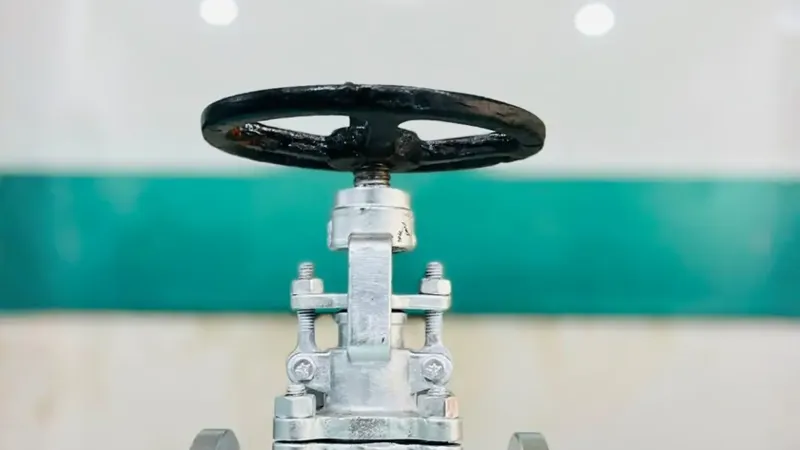

High-Temperature Hot Oil Globe Valves by Flow Biz Exports

Thermal oil and hot oil heat transfer systems operate under extreme temperatures, placing intense thermal and physical stress on piping components. Standard valves often fail due to stem packing degradation, causing dangerous leaks and downtime. Flow Biz Exports Pvt. Ltd. manufactures specialized Globe Valves for Hot Oil Applications, engineered to provide leak-tight isolation and precise flow regulation in severe thermal fluid environments.

Technical Specifications for Thermal Fluid Service

Parameter

Specification Details

Media Compatibility

Thermal Fluids, Hot Oil, Dowtherm, Thermic Fluids, Synthetic Oils

Temperature Range

Up to 400°C (752°F)

Body Materials

Cast Steel (ASTM A216 WCB), Forged Steel (A105), Stainless Steel (SS 304/316)

Stem Sealing Options

Stainless Steel Bellows Seal / High-Density Graphite Packing

Pressure Ratings

Class 150, 300, 600, PN16, PN25, PN40

End Connections

Flanged (ANSI B16.5 / DIN), Butt-Weld, Socket Weld

Core Features & Engineering Benefits

  • Bellows Seal & Extended Bonnet Design: Protects the stem packing from direct thermal exposure, ensuring zero stem leakage and eliminating maintenance associated with packing adjustments.
  • Hardened Seat Trims: Stellite-faced or hardened stainless steel seating surfaces resist thermal shock, erosion, and scoring at high operating temperatures.
  • Precise Throttling Control: Linear disc arrangement enables accurate flow adjustment, maintaining optimal heat transfer rates across heat exchangers and reactors.
  • Fire-Safe and Durable Body: Heavy-duty cast and forged bodies prevent body distortion and cracking under rapid thermal cycling.

Key Applications in Hot Oil Systems

  • Thermic Fluid Heaters: Main line isolation and control for thermal oil boilers and heaters.
  • Chemical & Resin Plants: Temperature regulation in jacketed vessels, reactors, and distillation units.
  • Textile & Paper Processing: Heat distribution networks in stenters, dryers, and calendar rolls.
  • Asphalt & Bitumen Processing: Safe handling of high-viscosity, high-temperature binder materials.

Reliable Supply Chain Across India & Abroad

FlowBiz provides high-temperature valve solutions backed by an extensive distribution and support network across:

  • Gujarat: Key industrial hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
  • Maharashtra: Major manufacturing centers including Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
  • International: Exporting specialized hot oil and thermal fluid valves across Africa and global markets.

Protect your thermal oil infrastructure with high-temperature Globe Valves engineered by Flow Biz Exports.
