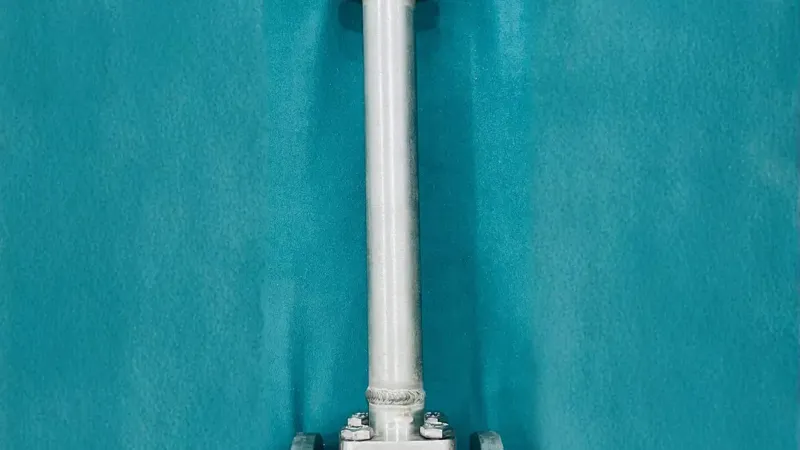

Gate Valve for Cryogenic Services – Flowbiz Exports
Controlling fluids at sub-zero temperatures requires specialized valve architecture to maintain structural integrity and prevent dangerous pressure entrapment. Flowbiz Exports Pvt. Ltd. manufactures top-tier Gate Valves for Cryogenic Services, designed to operate reliably in sub-zero environments reaching down to -196°C across Liquefied Natural Gas (LNG), liquid nitrogen, and cryogenic gas processing facilities.
What is a Cryogenic Gate Valve?
A cryogenic gate valve features an extended bonnet column that elevates the stem packing seal away from the sub-zero pipeline media. This gas column creates a thermal barrier, allowing boiled-off gas to insulate the packing gland and keeping stem seals flexible to prevent catastrophic leakage and valve stem freezing.
Technical Specifications & Features
Feature | Specification Details |
Brand / Manufacturer | Flowbiz Exports Pvt. Ltd. |
Valve Type | Extended Bonnet Cryogenic Gate Valve |
Body / Bonnet Material | Stainless Steel (SS304 / SS316 / SS304L / SS316L / CF8 / CF8M) |
Stem & Trim Material | Stainless Steel with Stellite Hardfacing options |
Temperature Range | -46°C to -196°C |
Size Range | 1/2 inch to 24 inch (15 mm to 600 mm) |
Pressure Class | ASME Class 150 / 300 / 600 / 800 / 1500 |
End Connections | Flanged End / Butt Weld (BW) / Socket Weld (SW) |
Design Standards | BS 6364 / API 600 / API 602 / ASME B16.34 |
Testing Standards | API 598 / BS 6364 Cryogenic Testing |
Key Operational Advantages
- Extended Bonnet Design: Elevates stem packing out of the cold zone, ensuring stem seal flexibility and preventing gland frost-up.
- Pressure Relief Cavity / Flexible Wedge: Features a pressure-relief hole drilled into the upstream side of the wedge to vent trapped liquid expanding in the body cavity during thermal warming.
- Stellite Hardfaced Seats: Hard-faced seating surfaces prevent galling, metal wear, and thermal binding under extreme cold cycles.
- Fire-Safe & Low Emission Packing: Flexible graphite packing and spiral-wound gaskets maintain leak-tight performance under high-pressure thermal shock.
Target Applications
- LNG Industry: Production plants, regasification terminals, LNG bunkering lines, and transport tankers.
- Industrial Gases: Air separation units (ASUs), liquid nitrogen (LN₂ ), liquid oxygen (LOX), and liquid argon handling.
- Aerospace & Chemical Processing: Liquid hydrogen ($LH_2$) fuel systems and ultra-low temperature chemical reaction loops.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted Forged Steel Ball Valve manufacturer with a massive distribution network. We provide rapid delivery and local support in:
- Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting high-pressure valve solutions to clients across Africa.
Why Choose Flowbiz Exports Pvt. Ltd.?
Every cryogenic gate valve from Flowbiz Exports Pvt. Ltd. undergoes rigorous non-destructive examination, hydrostatic shell testing, and low-temperature leakage checks in compliance with BS 6364 standards. Contact Flowbiz Exports today to request a quotation or consult our engineering team for customized cryogenic fluid control systems.
