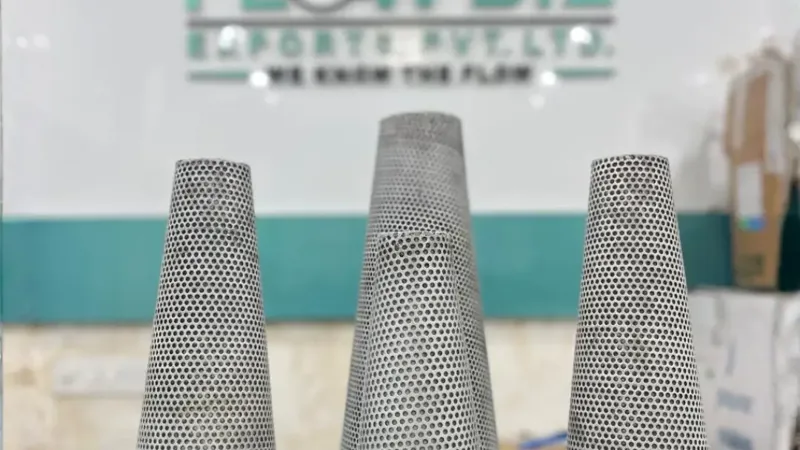

Industrial Stainless Steel Conical Strainers (Witch Hat Strainers) by FlowBiz
During plant startup, system commissioning, or continuous operations, pipeline debris such as weld slag, scale, rust, and construction waste can severely damage downstream equipment like pumps, control valves, and meters. FlowBiz Conical Strainers (Witch Hat Strainers) provide an effective, cost-efficient solution to capture particulate solids and safeguard critical process machinery.
Designed for installation between standard pipe flanges, these temporary and permanent strainers feature high open-area ratios to minimize pressure drops while offering high filtration efficiency. Manufactured using high-grade stainless steel wire mesh and perforated sheets, FlowBiz conical strainers withstand heavy flow velocities and differential pressures.
Technical Specifications & Features
FlowBiz conical strainers are precision-engineered to meet diverse industrial pipeline requirements:
- Strainer Type: Conical Strainer / Witch Hat Strainer / Temporary Flange Strainer
- Material of Construction (MOC): Stainless Steel (SS304 / SS304L / SS316 / SS316L) & Exotic Alloys on demand
- Element Construction: Precision-punched perforated sheet outer cone with optional inner/outer wire mesh lining for fine filtration
- Flange Ring Design: Raised Face (RF) or Flat Face (FF) mounting ring designed to fit ANSI, DIN, and BS standard flange specifications
- Flow Direction: Available for both Inside-to-Outside and Outside-to-Inside flow configurations
- Pressure Drop Optimization: Engineered with open-area ratios ranging from 150% to 300% of the pipe cross-sectional area to prevent pressure losses
Technical Overview Table
Technical Parameter | Specification Details |
Manufacturer | FlowBiz Exports Pvt. Ltd. |
Product Type | Conical Strainer (Witch Hat Type) |
Size Range | 1/2" (DN15) to 24" (DN600) and larger custom sizes |
Flange Compatibility | ANSI Class 150#, 300#, 600# / PN10 to PN40 |
Materials | SS 304, SS 316, SS 316L, Monel, Inconel |
Perforation / Mesh | 1mm to 6mm perforations / 20 to 200 Mesh lining options |
Mounting | Sandwich-style installation between companion flanges |
Key Applications Across Industries
FlowBiz Conical Strainers are extensively used across process engineering and fluid handling networks:
- Plant Startup & Commissioning: Protects new piping networks from construction debris and welding slag before main operations begin.
- Oil & Gas Refineries: Filters crude oil, natural gas lines, and hydrocarbon fluids ahead of pumps and compressors.
- Chemical & Petrochemical Processing: Shields sensitive instrumentation and control valves from process contaminants.
- Power & Utility Utilities: Installed on cooling water lines, steam systems, and water treatment intake networks.
Why Choose FlowBiz Exports Pvt. Ltd.?
FlowBiz delivers precision-crafted filtration solutions manufactured under stringent quality protocols:
- High Structural Integrity: Solid-welded seam construction prevents mesh collapsing under differential pressure.
- Custom Engineering: Tailored dimensions, mesh sizes, and open-area ratios built to your exact piping drawings.
- Corrosion Resistance: High-grade stainless steel construction ensures long service life even in harsh chemical environments.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted manufacturer and exporter with an extensive supply network. We provide rapid delivery and technical support in:
- Gujarat: Key industrial hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting industrial strainer solutions to clients across Africa and global markets.
