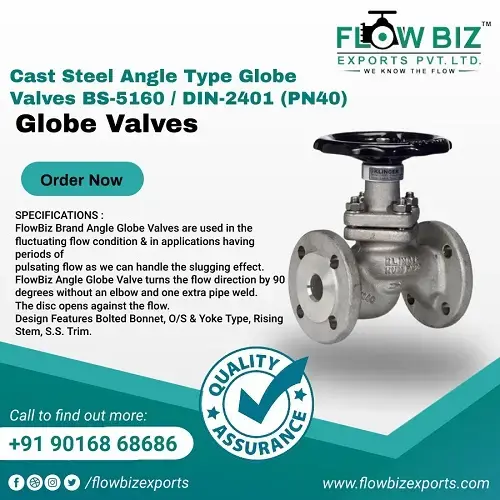

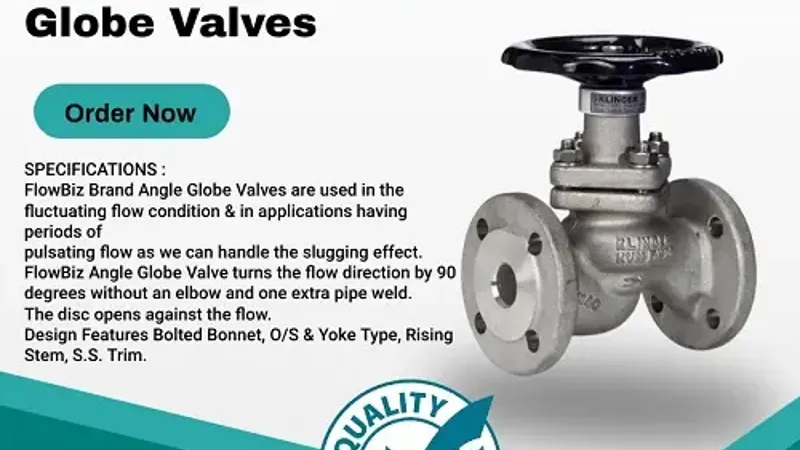

Cast Steel Angle Type Globe Valve – PN40 (BS-5160/DIN-2401) | FlowBiz
FlowBiz is a premier manufacturer and global exporter of high-performance Angle Type Globe Valves. Specifically engineered to manage fluctuating flow conditions and pulsating pressure, our angle globe valves serve a dual purpose: providing precision throttling while acting as a 90-degree piping elbow.
Complying with BS-5160 / DIN-2401 standards and rated for PN40 pressure, these valves are the industry benchmark for handling the "slugging effect" in high-pressure liquid, steam, and oil systems.
Technical Specifications & Standards
The FlowBiz Angle Globe Valve is "Type Approved" and built for the most rigorous industrial and marine environments.
Feature | Technical Specification |
Design Standard | BS-5160 / DIN-2401 / EN 13709 |
Pressure Rating | PN40 (40 Bar) |
Body Material | High-Grade Cast Steel (GP240GH / ASTM A216 WCB) |
Trim Material | Stainless Steel (X20Cr13 / SS 410 / SS 316) |
End Connection | Raised Face (RF) Flanges as per DIN |
Configuration | Bolted Bonnet, Outside Screw & Yoke (OS&Y) |
Application | Hot/Cold Water, Steam, Oil, High-Pressure Fluids |
Key Advantages of FlowBiz Angle Globe Valves
1. Integrated 90-Degree Flow Direction
The unique angle body design allows the media to turn 90 degrees within the valve itself. This eliminates the need for an additional pipe elbow and an extra weld joint, significantly reducing material costs, installation time, and potential leak paths.
2. Superior Slugging & Pulsation Control
FlowBiz Angle Globe Valves are perfectly suited for fluctuating conditions. The robust internal construction is designed to dampen the "slugging effect" of heavy liquids and pulsating flow, ensuring stable control and protecting downstream instrumentation.
3. Marine & Type-Approved Performance
Our 956401 Series is extensively utilized in marine engineering and aboard commercial vessels. Its compact footprint and high-pressure rating make it the preferred choice for:
- Fuel oil and lubricating oil transfer.
- High-pressure steam and thermal oil systems.
- Bilge, ballast, and fire-fighting lines.
4. Precision Throttling & Durability
Featuring an Outside Screw & Yoke (OS&Y) design, the stem threads are protected from the process media, preventing corrosion and ensuring smooth actuation. The stainless steel trim offers exceptional resistance to erosion and "wire-drawing."
FlowBiz Exports: A Global Supply Leader
FlowBiz Exports is recognized as a top-tier manufacturer and supplier of flow control accessories across India and international markets.
- Domestic Presence: Serving critical sectors in Mumbai, Pune, Ahmedabad, Chennai, and major industrial hubs.
- Global Reach: Our high-pressure valves are trusted by engineering firms in Dubai, Turkey, Nepal, Thailand, and Vietnam, as well as across the African continent (Nigeria, Kenya, South Africa, Morocco, Tanzania, Uganda, Mozambique, and Congo).
The FlowBiz One-Stop Valve Ecosystem
Beyond Angle Globe Valves, we manufacture a comprehensive range of industrial solutions:
- Check Valves: Swing, Lift, Piston, and Universal NRVs.
- Isolation Valves: Gate, Globe, Ball, Butterfly, and Plug Valves.
- Specialty Solutions: Knife Edge Gate, PFA/FEP Lined, and Diaphragm Valves.
- Filtration: Y-Type, Basket, and Conical Strainers.
- Instrumentation: Needle Valves, Sight Glass, and IBR-certified solutions.
Do you require specific Cv values, Pressure-Temperature charts, or IBR Certification for your project? Contact the FlowBiz technical team today for a customized quote.
