Dual Plate Check Valve (DPCV / NRV) by FlowBiz – Non-Return Flow Control

Reverse flow and water hammer can cause catastrophic damage to industrial pumps, compressors, and piping infrastructure. The FlowBiz Dual Plate Check Valve (DPCV / Non-Return Valve) is a compact, high-efficiency check valve designed to prevent backflow in liquid, gas, and steam utility systems.

Featuring twin spring-loaded plates hinged on a central pin, this valve opens easily under forward flow and closes rapidly prior to flow reversal. FlowBiz Exports Pvt. Ltd. manufactures these wafer-style DPCV units using high-grade stainless steel to deliver low pressure drop, silent operation, and reliable sealing across continuous process lines.

Technical Specifications & Features

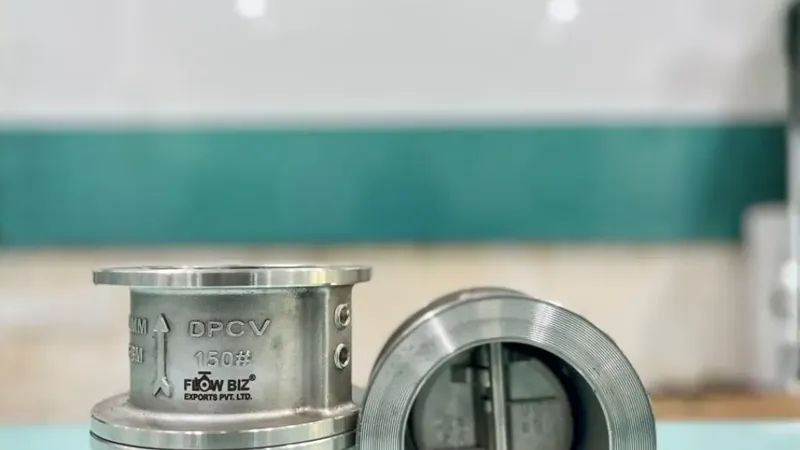

Based on the body markings shown in the image, the FlowBiz DPCV NRV delivers high mechanical stability and corrosion resistance:

• Product Type: Dual Plate Check Valve (DPCV) / Non-Return Valve (NRV)
• Valve Design: Spring-assisted dual-disc design for rapid, non-slam closure
• Pressure Rating: ANSI Class 150#
• Material of Construction (MOC): Stainless Steel CF8M (Cast SS316) body and plates for superior chemical and pitted corrosion resistance
• Flow Direction: Permanent flow arrow cast into the outer body for error-free installation
• Body Pattern: Compact wafer/lug design fits flush between standard pipe flanges, minimizing footprint and overall piping weight
• Sealing: Soft (Resilient) or Metal-to-Metal seating options ensuring bubble-tight shut-off

Technical Overview Table

Key Applications Across Industries

The FlowBiz Dual Plate Check Valve is widely installed across high-velocity fluid networks to guard rotating equipment:

• Pump Discharge Protection: Prevents back-pressure and back-spin on centrifugal pumps and compressors.
• Water & Wastewater Treatment: Eliminates water hammer damage in municipal and industrial pumping stations.
• Chemical & Petrochemical Facilities: Safely manages aggressive process fluids, solvents, and hydrocarbons.
• HVAC & Cooling Towers: Maintained on chilled water lines and condenser circulating systems.

Why Choose FlowBiz Exports Pvt. Ltd.?

FlowBiz engineering prioritizes hydraulic performance and longevity across all non-return valve lines:

• Zero Water-Hammer: Torsion springs force the dual plates to shut before fluid momentum reverses, preventing pressure surges.
• Compact & Lightweight: Weighs up to 80% less than conventional full-body swing check valves, reducing pipe support costs.
• 100% Quality Inspected: Pressure tested for shell strength and seat leakage in full accordance with API 598 standards.

Reliable Supply Chain Across India & Abroad

FlowBiz serves as a trusted Forged Steel Ball Valve and Non-Return Valve manufacturer with a massive distribution network. We provide rapid delivery and local support in:

• Gujarat: Key industrial hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
• Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
• International: Proudly exporting high-pressure valve solutions and non-return valves to clients across Africa and global markets.
