High-Pressure Ball Valves by FlowBiz – Engineered for Hydro-Testing & Industrial Washing
High-pressure fluid systems, pipeline hydro-testing rigs, and industrial high-pressure washing systems demand valves capable of enduring extreme working pressures without leakage or mechanical failure. FlowBiz High-Pressure Ball Valves are precision-machined flow control devices engineered specifically to manage fluid pressures up to 425 Bar (6160 PSI) with smooth quarter-turn operational reliability.
Manufactured using high-tensile stainless steel (SS304 / SS316), these valves feature a compact square-body design, blow-out proof stems, and reinforced Delrin (POM) or PEEK seating. FlowBiz high-pressure ball valves provide absolute shut-off safety during pressure testing skids, hydraulic power packs, and heavy-duty industrial washdown applications.
Technical Specifications & Features

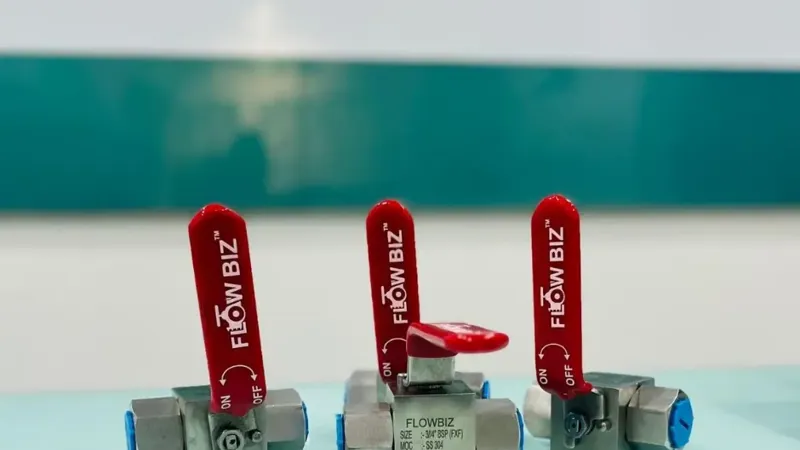

Based on the body markings shown in the image (SIZE: 3/4" BSP, MOC: SS 304, PRESS: 425 BAR), FlowBiz High-Pressure Ball Valves meet exact engineering specifications:
- Product Type: High-Pressure Barstock Ball Valve / Hydro-Test Isolation Valve
- Valve Size: 3/4" BSP (Female x Female Threaded)
- Working Pressure Rating: 425 BAR (6160 PSI / Class 2500)
- Material of Construction (MOC): Stainless Steel (ASTM A276 SS304 / SS316) forged barstock body
- Seat & Packing Material: Delrin (POM) / PEEK / CFT seats with Viton / NBR O-ring secondary seals
- Stem Design: Bottom-entry blow-out proof stem with integrated stop pin
- Operation: Quarter-turn ergonomic red sleeve lever handle with clear ON/OFF directional indicators
- Protection: Protective plastic cap plugs installed on threaded ends to prevent thread damage prior to installation
Technical Overview Table
Technical Parameter | Specification Details |
Manufacturer | FlowBiz Exports Pvt. Ltd. |
Product Type | Ball Valve for High-Pressure Hydro-Testing & Washing |
Size | 3/4" BSP (F x F Threaded) |
Pressure Rating | 425 BAR (6160 PSI) |
Body Material | SS304 (Stainless Steel 304) |
Seat Material | High-Density Delrin / POM / PEEK |
End Connections | BSP / NPT / BSPT Female Threads |
Traceability | Laser Etched Body Tag (SR NO: BV.Y.25062010.03) |
Key Applications Across High-Pressure Utilities
FlowBiz High-Pressure Ball Valves deliver safety and durability across demanding hydraulic and testing operations:
- Hydrostatic Pressure Testing Skids: Controls high-pressure water holding and pressure relief lines during vessel, pipe, and valve testing.
- Industrial High-Pressure Washing Systems: Handles high-velocity water jets in automated vehicle, equipment, and tank cleaning units.
- Hydraulic Power Units (HPUs): Regulates hydraulic fluid flow in high-pressure oil lubrication and actuation circuits.
- Oil & Gas Injection Systems: Manages high-pressure chemical injection and wellhead control manifolds.
Why Choose FlowBiz Exports Pvt. Ltd.?
FlowBiz barstock high-pressure valves are built for maximum safety and mechanical resistance:
- Extreme Pressure Endurance: Forged barstock body eliminates casting porosity, ensuring safety up to 425 Bar.
- Low Operating Torque: Precision-ground mirror-finish ball and low-friction polymer seats ensure effortless manual operation under maximum line pressure.
- 100% Factory Pressure Tested: Every valve undergoes rigorous hydrostatic and nitrogen seat leakage testing prior to delivery.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted Forged Steel Ball Valve manufacturer with a massive distribution network. We provide rapid delivery and local support in:
- Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting high-pressure valve solutions to clients across Africa.
