Block and Bleed Needle Valves by FlowBiz – Precision Instrumentation & Pressure Calibration Isolation

Accurate pressure measurement, instrument isolation, and safe calibration routines require robust control components that can safely isolate and vent high-pressure process media. FlowBiz Block and Bleed Needle Valves integrate process isolation (block valve) and pressure venting (bleed valve) into a single compact barstock body, reducing leak paths and enhancing site safety.

Engineered with high-tensile stainless steel (SS304 / SS316) barstock construction rated up to 6000 PSI (413 Bar), this 2-valve manifold configuration simplifies instrument mounting, in-situ gauge calibration, and pressure transmitter venting. FlowBiz block and bleed valves feature color-coded dust caps, non-rotating needle tips, and high-integrity PTFE/Graphite stem packings for precise throttling and leak-tight shut-off.

Technical Specifications & Features

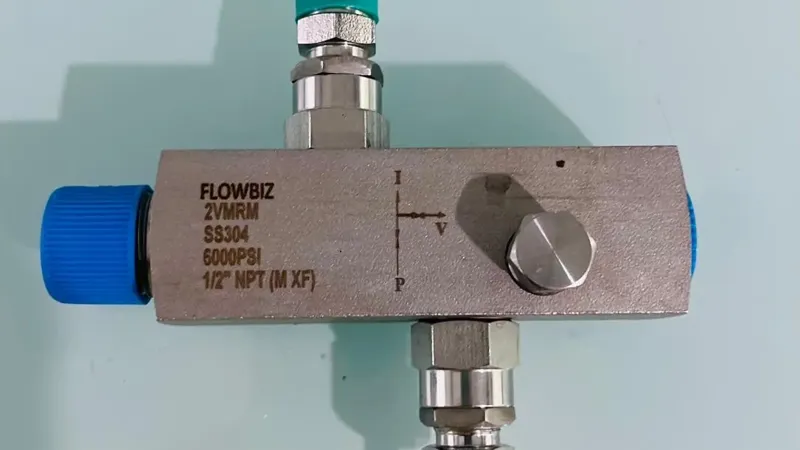

Based on the laser body markings shown in the image (FLOWBIZ, 2VMRM, SS304, 6000PSI, 1/2" NPT (M x F)), FlowBiz Block and Bleed Needle Valves meet strict instrumentation standards:

• Product Type: 2-Valve Manifold / Block and Bleed Needle Valve (Remote Mounting Type)
• Model Code: 2VMRM (2-Valve Manifold Remote Mounting)
• Valve Connections: 1/2" NPT Male x Female (Inlet/Outlet) with 1/4" NPT Vent/Bleed Port
• Working Pressure Rating: 6000 PSI (413 Bar) / Class 2500
• Material of Construction (MOC): Stainless Steel (ASTM A276 SS304 / SS316 / SS316L barstock)
• Valve Operation: Dual T-Bar Handles with color-coded bonnet rings (Green for Isolation/Block, Red for Vent/Bleed)
• Stem Tip: Hardened non-rotating needle tip for positive bubble-tight shut-off and long seat life
• Stem Packing: Low-friction PTFE / Grafoil packing for high-temperature and high-pressure service
• Protective Caps: Blue dust covers provided on end connections to prevent contamination before installation

Technical Overview Table

Key Applications Across Process & Instrumentation Control

FlowBiz Block and Bleed Needle Valves offer critical isolation and venting functions across process utilities:

• Pressure Gauge & Transmitter Mounting: Provides complete process line isolation and instrument venting during routine maintenance or replacement.
• In-Situ Calibration: Allows technicians to vent trapped pressure between the block valve and gauge to connect external calibration equipment.
• Chemical & Petrochemical Lines: Safely isolates hazardous liquids and gases from monitoring equipment.
• High-Pressure Hydraulic & Gas Manifolds: Prevents pressure spikes and ensures safe sampling in oil, gas, and power plants.

Why Choose FlowBiz Exports Pvt. Ltd.?

FlowBiz instrumentation manifolds deliver mechanical durability and maximum operational convenience:

• Compact Two-in-One Design: Combines primary isolation and secondary vent functions into one block, eliminating extra fittings and leakage risks.
• Color-Coded Handles: Green and red color coding clearly identifies isolation versus vent valves to prevent operational errors.
• 100% Factory Pressure Tested: Hydrostatically and pneumatically tested at maximum operating pressure per API 598 and MSS-SP-99 standards.
