Knife Gate Valves for Pulp & Paper Industry by FlowBiz – Non-Clogging Shearing Isolation

Handling thick wood pulp slurries, paper stock, recycled fiber suspensions, and abrasive liquor lines requires specialized valve architecture. Standard valves quickly clog when solid fibers get trapped between conventional seats. FlowBiz Knife Gate Valves for Pulp & Paper Industry feature a bevel-edged stainless steel gate engineered to slice cleanly through high-consistency pulp and suspended solids, guaranteeing positive shut-off without line blockages.

Built with high-grade stainless steel castings (ASTM A351 CF8 / SS304) and a compact lugged wafer pattern, these valves minimize face-to-face dimensions and overall system weight. FlowBiz knife gate valves feature self-cleaning seat pockets, robust packing glands, and ergonomic manual handwheels to maintain continuous, leak-free performance across heavy-duty paper processing utilities.

Technical Specifications & Features

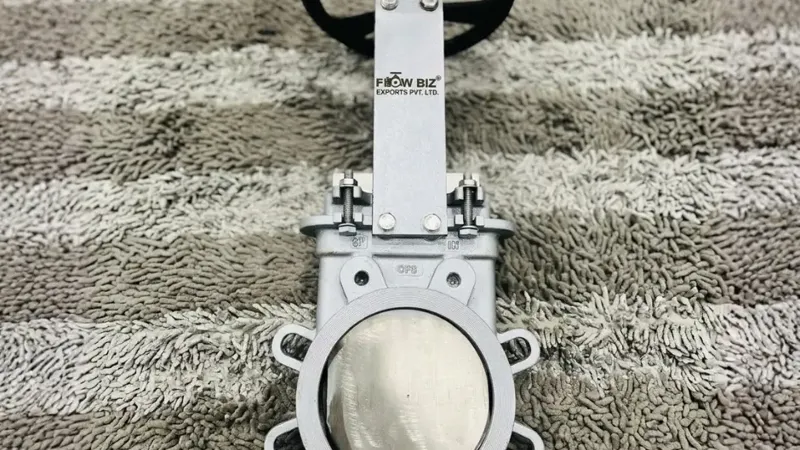

Based on the body markings shown in the image (FLOWBIZ EXPORTS PVT. LTD., CF8, 3" / 80mm), FlowBiz Knife Gate Valves conform to international industrial standards:

• Product Type: Knife Gate Valve / Slurry Shearing Gate Valve (Unidirectional / Bidirectional options)
• Nominal Size: 3" (DN80) (Size range available from 2" / DN50 to 36" / DN900)
• Body Pattern: Wafer / Semi-Lugged / Fully Lugged Body Pattern with drilled and tapped bolt holes
• Pressure Rating: PN10 / 150# (Max working pressure 10 Bar for sizes up to 12")
• Material of Construction (MOC): Cast Stainless Steel CF8 (ASTM A351 CF8 / SS304) or CF8M (SS316)
• Gate Blade Material: Heavy-gauge Stainless Steel (SS304 / SS316 / SS316L) with ground and polished surface finish
• Beveled Gate Edge: Precision machined knife edge cuts through dense fiber slurries, strings, and solid media
• Seat Type: Metal-to-Metal tight fit or Resilient Replaceable EPDM / Nitrile / PTFE / Viton seats
• Operation: Manual handwheel with heavy-duty yoke bracket (Pneumatic and Electric Actuator options available)

Technical Overview Table

Key Applications Across Pulp & Paper Processing

FlowBiz Knife Gate Valves excel in handling fibrous, sticky, and abrasive slurry applications:

• Pulp Digester & Bleaching Lines: Isolates chemical pulp stock, wood chip suspensions, and bleaching liquors.
• Paper Stock Preparation: Regulates high-density stock lines, recycled fiber pulpers, and refiner discharge systems.
• Black & Green Liquor Lines: Resists caustic chemical scaling and high-temperature black liquor in recovery boilers.
• De-Inking & Wastewater Treatment: Controls de-inking sludge, reject slurry, and fibrous effluent streams in water treatment loops.

Why Choose FlowBiz Exports Pvt. Ltd.?

FlowBiz knife gate technology prevents costly downtime in continuous process plants:

• Self-Cleaning Design: The shearing action of the gate pushes trapped fibers and debris out of the seating area into the pipeline flow path during closure.
• Compact Footprint: Narrow wafer/lugged face-to-face geometry saves installation space and simplifies inline flange mounting.
• Adjustable Stem Packing: External packing gland bolts allow quick in-service adjustment to maintain leak-free stem sealing.
