Multi Port Ball Valves for Thermal Energy Control by FlowBiz – Efficient Flow Diversion & Mixing
Thermal energy management, heat transfer fluid circuits, district heating systems, and industrial cooling loops require precise flow redirection and mixing without pressure drops or inter-port leakage. FlowBiz Multi Port Ball Valves for Thermal Energy Control provide multi-directional flow control, allowing operators to divert, mix, or isolate thermal fluid streams through a single valve body.
Featuring a 3-way flanged body construction, heavy-duty lever operation, and precision-machined L-port or T-port ball configurations, these valves streamline complex piping networks. FlowBiz multi-port ball valves eliminate the need for multiple 2-way isolation valves, lowering installation costs, reducing potential leak paths, and enhancing overall system efficiency in thermal management networks.
Technical Specifications & Features
FlowBiz Multi Port Ball Valves are engineered to deliver seamless fluid switching in thermal and process utilities:
- Product Type: 3-Way Multi Port Ball Valve (Flanged Connection)
- Port Configurations: L-Port (3-Way Diverting) / T-Port (3-Way Mixing & Diverting)

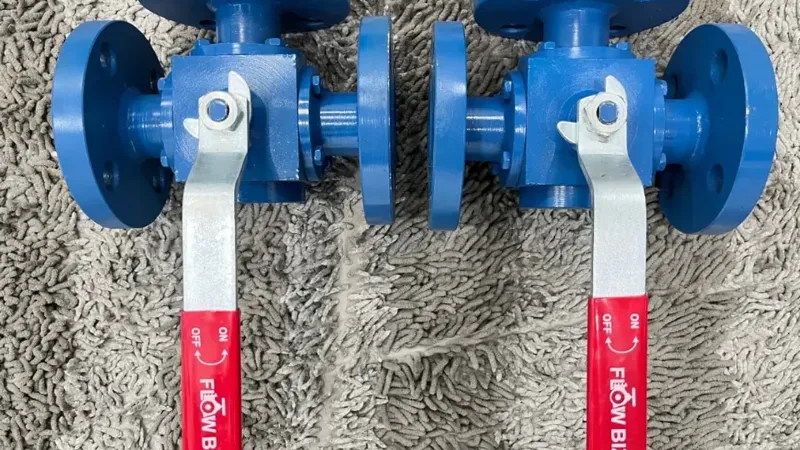

- Body Construction: 3-Piece / Multi-Piece Bolted Flanged Design with blue protective finish
- Pressure Class: ANSI Class 150# / Class 300# / PN16 Flanged Ends
- Material of Construction (MOC): Cast Carbon Steel (ASTM A216 WCB) / Stainless Steel (ASTM A351 CF8 / CF8M)
- Seat & Packing: High-temperature Reinforced PTFE (RPTFE) / Carbon-Filled PTFE (CFT) / PEEK seats
- Operation: Manual stainless steel lever with red FlowBiz sleeve handle and mechanical travel stop locking mechanism
- Mounting Pad: ISO 5211 direct mounting pad option for electric or pneumatic actuator automation
Technical Overview Table
Technical Parameter | Specification Details |
Manufacturer | FlowBiz Exports Pvt. Ltd. |
Product Type | Multi Port Ball Valve for Thermal Energy Control |
Configuration | 3-Way L-Port / T-Port Flanged Ball Valve |
Size Range | 1/2" (DN15) to 6" (DN150) |
Pressure Rating | ANSI Class 150# / Class 300# / PN16 |
Body Material | Cast Carbon Steel (WCB) / SS304 (CF8) / SS316 (CF8M) |
Seat Material | RPTFE / Carbon PTFE / PEEK |
Operating Temp | -20°C to +220°C (Extended range up to +350°C for thermal oil) |
Key Applications Across Thermal Energy & Process Utilities
FlowBiz Multi Port Ball Valves are optimized for complex thermal energy distribution and process fluid switching:
- Heat Transfer Fluid Systems: Diverts hot thermal oil (Thermic Fluid) between process jackets, reactors, and heat exchangers.
- District Heating & Cooling Networks: Regulates supply and return water loops to maintain consistent thermal balance.
- HVAC Chilled Water Systems: Mixes or diverts chilled water flow across air handling units (AHUs) and cooling towers.
- Steam & Condensate Management: Redirects steam lines and condensate return flows in industrial boiler plants.
Why Choose FlowBiz Exports Pvt. Ltd.?
FlowBiz multi-port valve technology simplifies piping layouts while maximizing fluid control integrity:
- Reduced Piping Complexity: Replaces two or three conventional 2-way valves with a single multi-port unit, cutting space requirements and maintenance downtime.
- Bubble-Tight Four-Seat Design: Four-sided seat geometry ensures positive sealing at all ports regardless of flow direction or pressure differential.
- Thermal Expansion Resilience: Engineered seat cavities prevent locking caused by thermal expansion of fluids at elevated temperatures.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted Forged Steel Ball Valve manufacturer with a massive distribution network. We provide rapid delivery and local support in:
- Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting high-pressure valve solutions to clients across Africa.
