Basket Type Strainers by FlowBiz – Heavy-Duty Pipeline Filtration & Debris Protection
Protecting downstream pumps, control valves, meters, and heat exchangers from pipeline debris, rust, and suspended particles requires efficient inline filtration. FlowBiz Basket Type Strainers feature a high-capacity basket chamber designed to trap foreign solid matter with minimal pressure drop across liquid handling and processing lines.
Featuring a heavy-duty fabricated or cast steel body, blue protective coating, top lifting eye nut, top air vent plug, and a bottom blow-down drain plug, these strainers make basket removal, cleaning, and maintenance simple. FlowBiz basket strainers maintain continuous process integrity across water treatment, chemical processing, fuel oil handling, and industrial utility loops.
Technical Specifications & Features

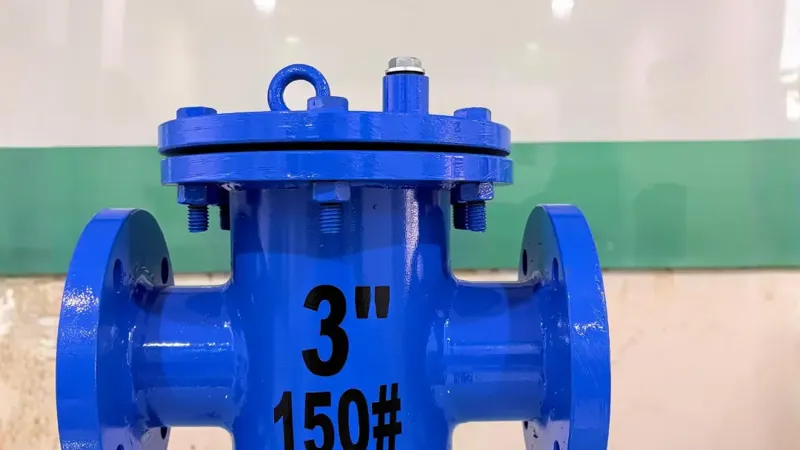

Based on the body markings shown in the image (3", 150#, flow direction arrow), FlowBiz Basket Type Strainers meet exact industrial standards:
- Product Type: Simplex Basket Strainer / Bucket Type Pipeline Strainer
- Nominal Size: 3" (DN80) (Size range available from 1" / DN25 to 24" / DN600)
- Pressure Rating: ANSI Class 150# Flanged Ends (Raised Face / Flat Face)
- Material of Construction (MOC): Cast Carbon Steel (ASTM A216 WCB) / Stainless Steel (SS304 / SS316) / Fabricated Steel Body
- Basket Element: Heavy-gauge Stainless Steel (SS304 / SS316) mesh basket with fine wire lining (40 Mesh to 200 Mesh)
- Cover Type: Bolted Flanged Cover with top eye-bolt / lifting lug for easy cover removal
- Vent & Drain Fittings: Top NPT vent plug for air bleeding and bottom NPT drain plug for quick chamber flushing
- Flow Direction: Unidirectional flow path with permanent directional arrow marking on the body
Technical Overview Table
Technical Parameter | Specification Details |
Manufacturer | FlowBiz Exports Pvt. Ltd. |
Product Type | Basket Type Strainer / Bucket Strainer |
Size Range | 1" (DN25) to 24" (DN600) (Featured: 3" / DN80) |
Pressure Class | ANSI Class 150# / Class 300# / PN16 |
Body Material | Cast Carbon Steel (WCB) / SS304 / SS316 |
Filter Element | Removable Stainless Steel Basket (SS304/SS316) |
End Connections | Flanged Ends per ASME B16.5 |
Features | Top Vent Plug, Bottom Drain Plug, Top Lifting Lug |
Key Applications Across Industrial Utilities
FlowBiz Basket Type Strainers offer dependable protection across continuous liquid process networks:
- Pumping Station & Intake Lines: Protects water pumps, impellers, and mechanical seals from stones, gravel, and pipe debris.
- Chemical & Process Industries: Filters particulate matter from process fluids, solvents, and liquid chemicals.
- Oil & Gas / Fuel Handling Systems: Traps dirt and sediment in diesel, heavy fuel oil (HFO), and lube oil lines.
- Cooling Towers & HVAC Systems: Traps scale, algae, and suspended solids in chilled and condenser water lines.
Why Choose FlowBiz Exports Pvt. Ltd.?
FlowBiz basket filtration designs deliver maximum holding capacity and low maintenance downtime:
- Large Free-Area Ratio: Basket area provides a large screen-to-pipe area ratio, reducing frequency of basket cleaning and minimizing pressure drop.
- Convenient Maintenance: Top vent relieves internal pressure before cover removal, while the bottom drain allows complete flushing of collected solids.
- Durable Construction: Precision-machined flange faces and heavy-duty body wall thickness ensure extended service under continuous working pressures.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted Forged Steel Ball Valve manufacturer with a massive distribution network. We provide rapid delivery and local support in:
- Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting high-pressure valve solutions to clients across Africa.
