FlowBiz Globe Valve for Hydrocarbon Processing – High-Pressure Throttling & Leak-Proof Isolation

Downstream oil refineries, petrochemical plants, natural gas processing units, and heavy hydrocarbon distillation circuits demand rugged flow control components capable of handling high temperature, severe vibration, and extreme pressure differentials. The FlowBiz Globe Valve for Hydrocarbon Processing is engineered for precision throttling and positive shut-off in critical process headers, bypass loops, and auxiliary steam lines.

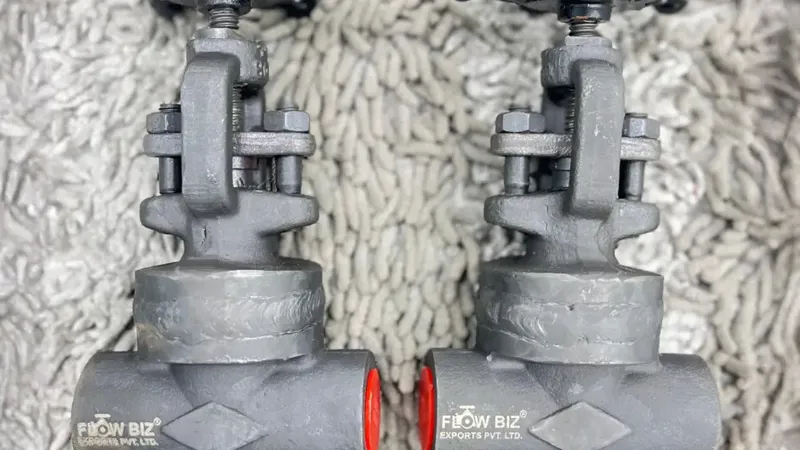

Featuring a heavy-duty forged steel body (ASTM A105 / A182 F316 / F11) with a robust welded bonnet structure, this valve eliminates potential body-bonnet leak paths under thermal cycling and volatile hydrocarbon service. Built with an Outside Screw and Yoke (OS&Y) rising stem architecture, hardened conical plug disc, and high-purity graphite packing, the FlowBiz Globe Valve for Hydrocarbon Processing guarantees zero fugitive emissions and precise flow adjustment across volatile media.

Technical Specifications & Features

The FlowBiz Globe Valve for Hydrocarbon Processing complies with rigid API, ASME, and BS standards:

• Product Name: FlowBiz Globe Valve for Hydrocarbon Processing
• Design Standards: API 602 / BS 5352 / ASME B16.34
• Size Range: 1/2" (DN15) to 2" (DN50) (Forged Steel Construction)
• Pressure Rating: ANSI Class 800# / Class 1500# / Class 2500#
• Material of Construction (MOC): Forged Carbon Steel (ASTM A105) / Forged Alloy Steel (ASTM A182 F11 / F22) / Stainless Steel (ASTM A182 F316 / F304)
• Bonnet Construction: Welded Bonnet (Hermetically Sealed for Zero Leakage) / Bolted Bonnet option
• Stem & Seat Trim: API Trim 8 (13% Cr / Hardfaced Stellite Seats) for erosion and galling resistance
• End Connections: Socket Weld (SW) per ASME B16.11 / Threaded (NPT / BSPT) per ASME B1.20.1 / Butt Weld (BW)
• Operation: Heavy-duty cast iron handwheel with OS&Y rising stem and position indicator

Technical Overview Table

Key Applications Across Hydrocarbon & Petrochemical Processing

The FlowBiz Globe Valve for Hydrocarbon Processing is optimized for severe-service thermal and chemical hydrocarbon applications:

• Crude Oil Refining & Distillation: Regulates flow on high-temperature atmospheric and vacuum distillation tower lines.
• Petrochemical Feedstock Lines: Controls naphtha, ethylene, propylene, and aromatic chemical loops.
• Hydrotreating & Catalytic Reforming: Operates reliably under high hydrogen partial pressures and elevated process temperatures.
• High-Pressure Utility Steam & Drain Lines: Serves as dependable isolation and throttling valves on boiler blowdown and steam trap bypass skids.

Why Choose FlowBiz Exports Pvt. Ltd.?

The FlowBiz Globe Valve for Hydrocarbon Processing delivers maximum reliability in hazardous and volatile fluid systems:

• Welded Bonnet Leak-Proof Integrity: Hermetically seal-welded bonnet joint eliminates gasket degradation, preventing hazardous hydrocarbon emissions under continuous thermal cycling.
• Precision Throttling Profile: Conical parabolic plug disc provides linear flow characteristics and tight shut-off without seat chatter.
• Hardfaced Trim Options: Stellite 6 overlay on disc and seat rings resists high-velocity erosion, particle impact, and fluid flashing.
• Fugitive Emission Compliance: Engineered gland packing arrangements prevent volatile organic compound (VOC) leakage into the atmosphere.

Reliable Supply Chain Across India & Abroad

FlowBiz serves as a trusted Forged Steel Ball Valve manufacturer with a massive distribution network. We provide rapid delivery and local support in:

• Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
• Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
• International: Proudly exporting high-pressure valve solutions to clients across Africa.
