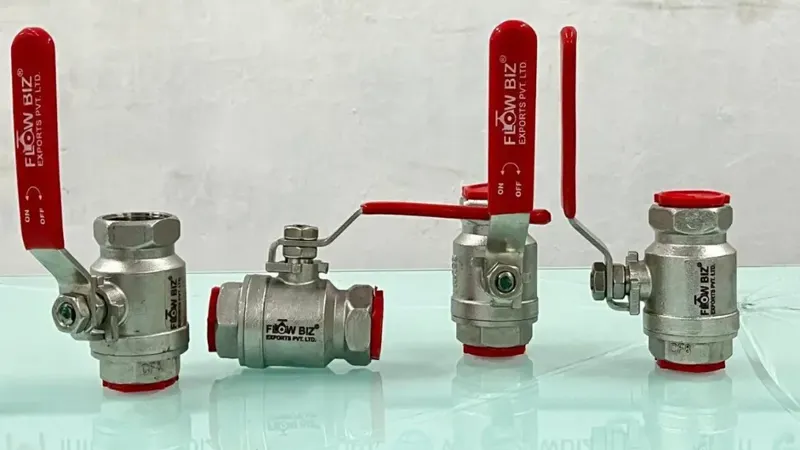

FlowBiz Stainless Steel Ball Valve – Full Bore, Screwed End – Precision Isolation for Industrial Utilities

Reliable fluid control in chemical processing, water treatment, compressed air, food processing, and general industrial utilities requires dependable inline shut-off valves. The FlowBiz Stainless Steel Ball Valve – Full Bore, Screwed End is engineered to deliver zero-leakage performance, high flow capacity, and smooth quarter-turn operation across demanding fluid handling pipelines.

Featuring precision investment-cast stainless steel bodies (ASTM A351 CF8 / CF8M), this screwed end ball valve features a full port (full bore) design that matches the internal pipe diameter. This minimizes pressure drop, fluid turbulence, and cavitation across process loops. Equipped with high-density PTFE seats, a blow-out proof stem, and a heavy-duty red sleeve lever handle, the FlowBiz Stainless Steel Ball Valve ensures tight bi-directional sealing in water, steam, oil, gas, and corrosive liquid service.

Technical Specifications & Features

The FlowBiz Stainless Steel Ball Valve – Full Bore, Screwed End is engineered to strict international valve standards:

• Product Name: FlowBiz Stainless Steel Ball Valve – Full Bore, Screwed End
• Design Standards: BS 5351 / ASME B16.34 / ISO 17292
• Size Range: 1/4" (DN8) to 4" (DN100)
• Pressure Rating: 1000 WOG (1000 PSI / PN63)
• Body Construction: 1-Piece / 2-Piece Investment Cast Body
• Material of Construction (MOC): Cast Stainless Steel ASTM A351 CF8 (SS304) / CF8M (SS316)
• Bore Type: Full Bore / Full Port (Unrestricted Flow Path)
• Seat & Packing Material: Virgin PTFE / Glass-Filled PTFE (RPTFE) for wear resistance and bubble-tight shut-off
• End Connections: Female Threaded Ends (NPT per ASME B1.20.1 / BSPP / BSPT per ISO 7-1)
• Operation: Heavy-duty stainless steel lever handle with bright red vinyl sleeve and ON/OFF directional marking
• Stem Design: Blow-out proof stem for enhanced operational safety under high pressure

Technical Overview Table

Key Applications Across Industrial Utilities

The FlowBiz Stainless Steel Ball Valve – Full Bore, Screwed End delivers reliable isolation across diverse industrial applications:

• Chemical & Pharmaceutical Manufacturing: Controls corrosive chemical lines, solvent transfers, and purified water distribution.
• Food, Beverage & Dairy Processing: Maintains clean, corrosion-free isolation in hygienic liquid and utility piping systems.
• Water & Wastewater Treatment: Offers reliable service in chemical dosing, filtration, and water distribution networks.
• Pneumatic & Compressed Air Systems: Serves as dependable main header and branch isolation valves for high-pressure plant air systems.

Why Choose FlowBiz Exports Pvt. Ltd.?

The FlowBiz Stainless Steel Ball Valve – Full Bore, Screwed End offers key design benefits for liquid and gas utilities:

• Zero Pressure Drop: Full bore architecture allows media to flow unrestricted, maintaining system pressure and lowering pumping costs.
• Investment Cast Integrity: Superior body casting finish ensures uniform wall thickness and high structural strength under working pressure.
• Bubble-Tight Sealing: Precision-ground SS304/SS316 solid ball paired with virgin PTFE seats guarantees zero seat leakage.
• Easy Installation: Compact threaded construction allows quick assembly and disassembly in tight manifold configurations without requiring special tools.

Reliable Supply Chain Across India & Abroad

FlowBiz serves as a trusted Forged Steel Ball Valve manufacturer with a massive distribution network. We provide rapid delivery and local support in:

• Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
• Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
• International: Proudly exporting high-pressure valve solutions to clients across Africa.
