Ultimate Guide to Industrial Rod Gate Valves: Design, Working, and Applications

In bulk solid handling systems, controlling the flow of heavy, abrasive, or large-sized materials can quickly damage standard slide gates. When dealing with clinker, gravel, coal, limestone, or slag, traditional solid blades often jam, bend, or get stuck due to material packing.

This is where the Industrial Rod Gate Valve becomes an essential engineering asset.

FlowBiz Exports Pvt. Ltd. manufactures heavy-duty Rod Gates (also known as Needle Gates or Bar Gates) engineered specifically for isolation and maintenance shut-off under heavy gravity-drop conditions.

What is a Rod Gate Valve?

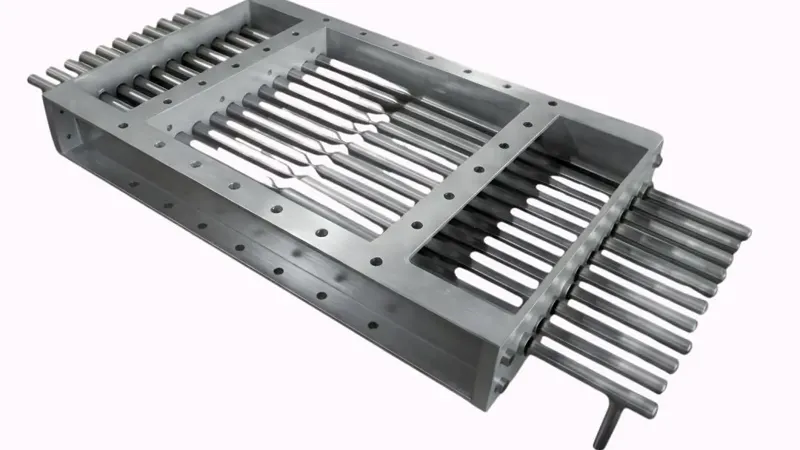

A Rod Gate Valve is a specialized mechanical shut-off device designed for gravity-feed bulk material handling systems. Instead of using a single solid metal blade to close off an opening, a rod gate utilizes a series of parallel, individually insertable steel rods or bars to penetrate through a standing column of material.

Because individual round rods displace material rather than pushing a flat wall against it, insertion forces are significantly lower. This unique mechanism enables operators to shut off or regulate the flow of coarse, lumpy, or abrasive materials without jamming the valve frame.

How Does a Rod Gate Valve Work?

The operation of a rod gate valve is straightforward yet highly effective:

  1. Open State: During normal plant operation, all rods are retracted outside the flow chamber, leaving an unobstructed passage for raw materials to drop vertically from hoppers, bins, or chutes into downstream equipment.
  2. Shut-Off / Maintenance State: When downstream equipment (such as a rotary airlock feeder, screw conveyor, or belt feeder) requires maintenance, operators drive the steel rods through the material stream across the flow opening.
  3. Material Displacement: The tapered or rounded ends of the individual rods push between the large mineral chunks and aggregate particles, creating a secure protective matrix or grate that holds back the material column above.
  4. Partial Flow Regulation: Operators can selectively insert or remove specific numbers of rods to adjust the clear opening size, allowing rough metering of coarse materials.

Key Benefits of FlowBiz Industrial Rod Gates

  • Zero-Jamming Performance: Unlike solid slide gates that compact fine grit into their side seals, independent round rods glide smoothly between material pockets.
  • Low Actuation Effort: Inserting thin individual bars reduces friction and force requirements compared to forcing a broad, flat metal plate through a packed column of stone or ore.
  • Ease of Maintenance: If a single rod gets bent due to extreme impact or tramp metal, it can be individually pulled out and replaced without dismantling the entire valve assembly or shutting down the process line.
  • Heavy-Duty Construction: Built with carbon steel, IS 2062, or stainless steel (SS304/SS316) frames with hardened alloy rods designed to handle aggressive continuous wear.
  • Flexible Actuation: Available in manual push-pull configurations, handwheel rack-and-pinion drives, pneumatic cylinder setups, or motor-driven electric linear actuators depending on process automation requirements.

Technical Specifications Overview

Parameter

Specifications & Options

Size Range

200 mm x 200 mm up to 2000 mm x 2000 mm (Custom shapes & sizes available)

Frame Material

Carbon Steel (IS 2062), Stainless Steel (SS304, SS316, SS316L), Hardox

Rod Material

High-Tensile Carbon Steel, Hard-Chrome Plated Steel, Stainless Steel (304/316)

Operation Type

Manual (Individual push-pull), Handwheel / Chain Wheel, Pneumatic, Electric

Temperature Range

Standard up to 250°C; High-temp custom designs up to 600°C+

Flange Standard

ANSI B16.5, DIN, IS Standard, or Custom Square/Rectangular patterns

Key Industrial Applications

FlowBiz Rod Gate Valves are critical flow control solutions across multiple process industries:

  • Cement & Aggregates: Isolating clinker, limestone, gypsum, and raw meal hoppers above crushers and weigh feeders.
  • Mining & Mineral Processing: Controlling the flow of iron ore, bauxite, copper concentrate, gravel, and crushed rock.
  • Thermal Power Plants: Handling coal, bottom ash, fly ash, and boiler feed chutes.
  • Steel & Metallurgical Works: Regulating sinter, iron pellets, coke breeze, and slag feed lines.
  • Chemical & Bulk Processing: Shut-off for dense granules, fertilizer salts, and synthetic resins.

Supplying Industrial Hubs Across India & Globally

FlowBiz Exports Pvt. Ltd. supplies precision-engineered rod gate valves to major industrial, manufacturing, and mining hubs nationwide, including:

  • Gujarat & West: Ahmedabad, Vadodara, Surat, Rajkot, Bharuch, Vapi
  • Maharashtra: Mumbai, Pune, Nagpur, Nashik, Aurangabad
  • North India: Delhi NCR, Faridabad, Ghaziabad, Ludhiana, Baddi
  • South India: Bengaluru, Chennai, Hyderabad, Coimbatore, Visakhapatnam
  • East & Central: Kolkata, Jamshedpur, Bhilai, Rourkela, Raipur

FlowBiz also exports industrial valve solutions to global markets across the Middle East, Southeast Asia, Africa, and Europe.

Why Choose FlowBiz Exports Pvt. Ltd.?

At FlowBiz Exports Pvt. Ltd., every valve undergoes rigorous Quality Assurance (QA) testing for dimensional accuracy, material composition, and smooth mechanical actuation. Whether you require a standard manual needle gate for periodic maintenance or an automated pneumatic rod gate for hazardous material control, FlowBiz delivers reliable engineering tailored to your plant requirements.

Looking for reliable flow control solutions?

Contact FlowBiz Exports Pvt. Ltd. today for technical datasheets, CAD models, and customized quotes for your bulk material handling needs.
