Ultimate Guide to Industrial Butterfly Damper Valves: Design, Working, and Applications
Regulating high-volume flue gases, hot air, exhaust emissions, and corrosive process vapors requires flow control valves engineered specifically for low-pressure gas dynamics. Standard isolation valves often warp, stick, or fail when subjected to extreme gas temperatures and thermal expansion inside industrial ductwork.
An Industrial Butterfly Damper Valve provides an efficient, lightweight, and low-maintenance solution for modulating or isolating large-volume gas and air streams.
FlowBiz Exports Pvt. Ltd. manufactures heavy-duty, custom-engineered Butterfly Damper Valves designed for high-temperature service, precise air modulation, and reliable shut-off in demanding industrial duct systems.

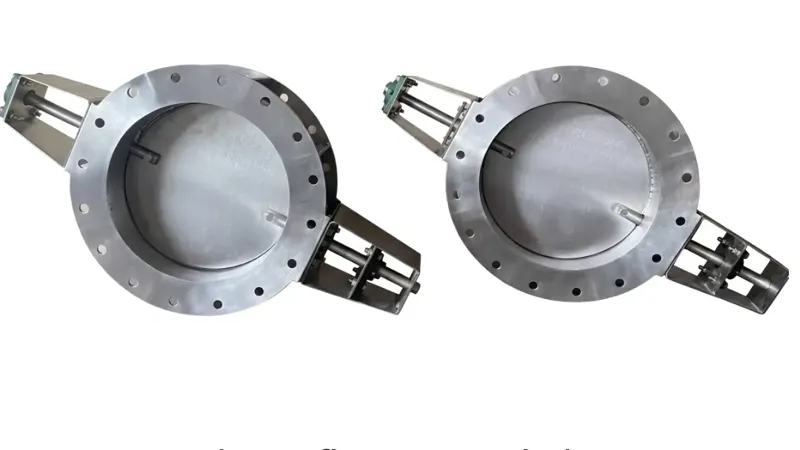

What is a Butterfly Damper Valve?
A Butterfly Damper Valve is a lightweight flow control device mounted directly within circular or rectangular ducting systems. It features a single rotating disc or blade mounted on a central shaft.
Unlike tight-sealing liquid valves, damper valves are optimized for low-pressure air and gas regulation. They control the volume of gas flowing through ductwork by pivoting the disc between 0 degrees (fully closed) and 90 degrees (fully open).
How Does a Butterfly Damper Valve Work?
The operation of a butterfly damper valve relies on precise quarter-turn rotation:
- Modulating / Throttling Mode: The central shaft rotates the internal blade to intermediate angles (e.g., 30°, 45°, or 60°), restricting or increasing airflow to balance system pressure, boiler draft, or temperature.
- Isolation Mode: When rotated to 0° (perpendicular to airflow), the blade seats against the inner housing wall or metallic stop to shut off gas flow for maintenance or process diversion.
- Low Pressure Drop: When rotated to 90° (parallel to airflow), the thin profile of the disc offers minimal resistance, allowing maximum gas throughput with negligible pressure loss.
- Actuation: Driven manually via hand lever/gearbox, or automatically using pneumatic quarter-turn actuators and electric motorized actuators integrated with DCS/PLC systems.
Key Benefits of FlowBiz Butterfly Damper Valves
- High-Temperature Resistance: Fabricated with high-grade alloys capable of continuous operation in thermal exhaust environments exceeding 800°C.
- Low Operating Torque: The balanced, center-pivoted disc design minimizes the force required to open and close the valve, reducing actuator sizing and power requirements.
- Compact & Lightweight Construction: Fits easily into tight ductwork arrangements without requiring heavy structural supports.
- Multiple Sealing Options: Available with swing-through seats (for thermal expansion clearance), step-cut seats, or flexible metallic/fabric seal arrangements depending on shut-off tightness needs (up to 99.5% tight).
- Minimal Maintenance: High-durability external shaft bearings installed away from the hot gas stream prevent heat degradation and contamination.
Technical Specifications Overview
Technical Parameter | Specifications & Available Options |
Size Range | 100 mm (4") up to 3000 mm (120") in round, square, or rectangular profiles |
Operating Temperature | Ambient up to 800°C+ (Refractory lined or alloy builds available) |
Operating Pressure | Low pressure duct systems (Up to 0.5 bar / 5000 mm WC) |
Body Material | Mild Steel (IS 2062), Carbon Steel, Stainless Steel (SS304, SS316, SS310, SS321) |
Disc / Blade Material | High-Tensile Steel, SS304/316/310, Inconel, or Abrasion-Resistant Alloy |
Seat Design | Swing-through (clearance type), Step-seat, Metallic Seal Ring, Rubber/Fabric Soft Seat |
Actuation Options | Manual Lever, Worm Gearbox, Pneumatic Cylinder/Quarter-Turn, Electric Actuator |
Key Industrial Applications
FlowBiz Butterfly Damper Valves are widely deployed across air & gas control operations:
- Thermal Power Plants & Boilers: Flue gas desulfurization (FGD), ESP inlet/outlet ducting, primary/secondary air regulation, and chimney isolation.
- Cement & Lime Works: Kiln exhaust systems, preheater tower gas regulation, and clinker cooler ductwork.
- Steel & Metallurgical Works: Blast furnace gas ducting, sinter plant exhaust, coke oven gas lines, and heat recovery systems.
- Chemical & Petrochemical Refineries: Incinerator exhaust control, flare stack gas lines, and hot process air distribution.
- HVAC & Industrial Dust Collection: Air intake regulation, baghouse isolation, and ventilation exhaust balancing.
Supplying Major Industrial Hubs Across India & Globally
FlowBiz Exports Pvt. Ltd. manufactures and supplies high-performance butterfly damper valves across major manufacturing and power-generation hubs:
- Gujarat & West India: Ahmedabad, Vadodara, Surat, Rajkot, Bharuch, Vapi, Ankleshwar
- Maharashtra: Mumbai, Pune, Nagpur, Nashik, Aurangabad, Thane
- North India: Delhi NCR, Faridabad, Ghaziabad, Ludhiana, Baddi, Jaipur
- South India: Bengaluru, Chennai, Hyderabad, Coimbatore, Visakhapatnam
- East & Central India: Kolkata, Jamshedpur, Bhilai, Rourkela, Raipur
FlowBiz also exports duct control damper valves across the Middle East, Southeast Asia, Africa, and Europe.
Why Choose FlowBiz Exports Pvt. Ltd.?
Every Butterfly Damper Valve manufactured by FlowBiz Exports Pvt. Ltd. is custom-engineered to match your duct dimensions, temperature profile, and pressure conditions. With robust shaft designs, precision-machined discs, and heat-resistant metallurgy, FlowBiz damper valves ensure long-term operational reliability in high-temperature gas handling.
Need customized gas regulation or duct isolation valves?
Contact FlowBiz Exports Pvt. Ltd. today for technical datasheets, CAD drawings, and factory quotes.
