Ultimate Guide to Industrial Guillotine Dampers: Design, Working, and Applications
In heavy-duty power generation, cement manufacturing, steel production, and incineration, complete line isolation of large-volume flue gas ducts is essential during routine maintenance, repair, or process bypass. Standard butterfly or louver dampers provide excellent gas modulation, but when absolute zero-leakage isolation is required against high-temperature, ash-laden gases, Guillotine Dampers are the industry standard.

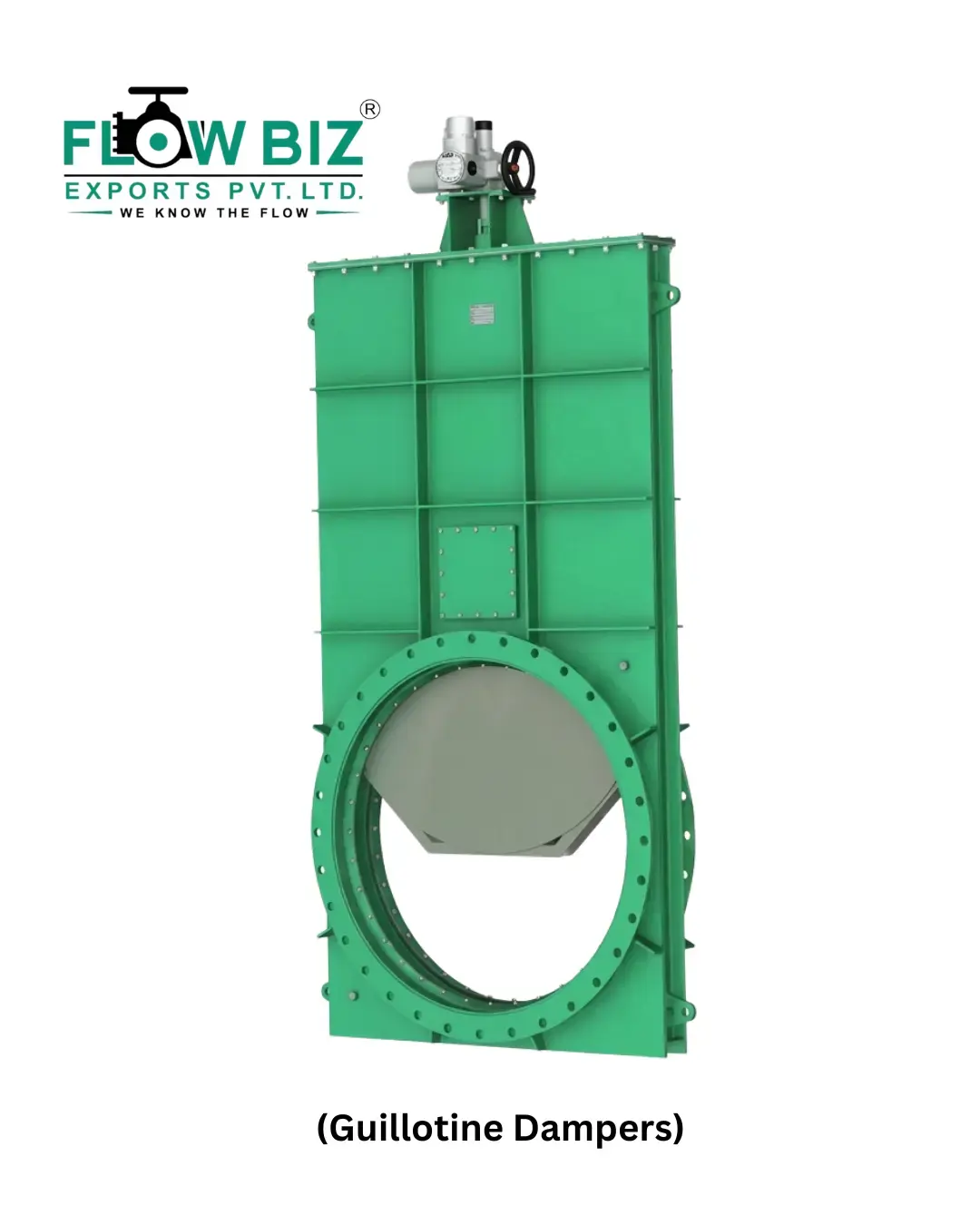

An Industrial Guillotine Damper (also known as a Slide Gate Damper or Blade Damper) provides a robust 100% positive shut-off seal across large circular or rectangular ductwork.
FlowBiz Exports Pvt. Ltd. manufactures custom-engineered, heavy-duty Guillotine Dampers designed to withstand severe thermal shock, heavy dust loading, and corrosive flue gas environments.
What is a Guillotine Damper?
A Guillotine Damper is a linear-action isolation valve engineered specifically for low-pressure air and gas duct systems. It consists of a single solid blade that slides vertically or horizontally across the duct cross-section to completely block gas flow.
When fully open, the blade retracts completely out of the gas stream into an external bonnet assembly. This leaves a 100% unobstructed flow path with zero pressure drop and eliminates blade erosion caused by high-velocity, particulate-laden gases.
How Does a Guillotine Damper Work?
The operational sequence of a guillotine damper ensures maximum sealing integrity:
- Fully Open Position: The blade is completely pulled out of the duct line into a top-mounted bonnet enclosure. Gas flows through the duct with zero pressure resistance and zero turbulence.
- Closing Cycle: A heavy-duty rack-and-pinion, drive screw, or pneumatic/hydraulic cylinder drives the blade vertically down through precision guide tracks across the duct opening.
- Sealing Phase: As the blade reaches the fully closed position, peripheral metallic or flexible seal systems (such as flexible stainless steel leaf seals or seal-air pressurization systems) form a tight barrier around the blade edge.
- Zero-Leakage Air Seal (Optional): For human-safe maintenance isolation, a dedicated seal-air blower pressurizes the chamber between double blade seals, preventing 100% of flue gas from escaping downstream.
Key Benefits of FlowBiz Guillotine Dampers
- 100% Positive Isolation: Provides strict shut-off for safe worker access during downstream maintenance or equipment servicing.
- Zero Pressure Drop: Fully retracted blade design offers zero resistance to gas flow, reducing fan energy consumption.
- No Material Accumulation: Self-cleaning blade edge slices through heavy fly ash, soot, and chemical buildup without binding or jamming.
- Extreme Temperature & Shock Resistance: Constructed with heat-resistant stainless steel alloys or refractory linings capable of handling temperatures up to 800°C+.
- Low Thermal Distortion: Engineered structural bonnet frame absorbs thermal expansion without pinching or warping the sliding blade.
Technical Specifications Overview
Technical Parameter | Specifications & Available Options |
Duct Size Range | 300 mm x 300 mm up to 4000 mm x 4000 mm (Custom shapes & sizes) |
Operating Temperature | Ambient up to 800°C+ (Alloy/Refractory builds available) |
Operating Pressure | Low pressure duct systems (Up to 0.5 bar / 5000 mm WC pressure differential) |
Body / Frame Material | Mild Steel (IS 2062), Carbon Steel, Stainless Steel (SS304, SS316, SS310) |
Blade Material | Heavy-gauge SS304, SS316, SS310, Corten Steel, or Hastelloy |
Sealing System | Metallic Leaf Seal, Inconel Flexible Seal, Seal-Air Pressurization (Zero Leakage) |
Actuation Options | Electric Motorized (Rack & Pinion / Lead Screw), Pneumatic, Hydraulic, Manual |
Key Industrial Applications
FlowBiz Guillotine Dampers provide critical duct isolation across harsh industrial environments:
- Thermal Power Plants: Boiler flue gas desulfurization (FGD) systems, ESP inlet/outlet duct isolation, and chimney stack isolation.
- Cement & Lime Works: Preheater tower bypass, kiln exhaust ducting, and raw mill gas isolation.
- Steel & Metallurgical Plants: Waste heat recovery systems (WHRS), sinter gas lines, and coke oven battery exhausts.
- Incinerators & Chemical Refineries: Hazardous gas abatement lines, flare stack bypasses, and thermal oxidizer isolation.
- Pulp & Paper Mills: Recovery boiler flue gas ducts and lime kiln exhaust systems.
Supplying Major Industrial Hubs Across India & Globally
FlowBiz Exports Pvt. Ltd. manufactures and supplies precision-engineered guillotine dampers across major industrial and manufacturing hubs nationwide:
- Gujarat & West India: Ahmedabad, Vadodara, Surat, Rajkot, Bharuch, Vapi, Ankleshwar
- Maharashtra: Mumbai, Pune, Nagpur, Nashik, Aurangabad, Thane
- North India: Delhi NCR, Faridabad, Ghaziabad, Ludhiana, Baddi, Jaipur
- South India: Bengaluru, Chennai, Hyderabad, Coimbatore, Visakhapatnam
- East & Central India: Kolkata, Jamshedpur, Bhilai, Rourkela, Raipur
FlowBiz also exports duct isolation dampers across the Middle East, Southeast Asia, Africa, and Europe.
Why Choose FlowBiz Exports Pvt. Ltd.?
Every Guillotine Damper manufactured by FlowBiz Exports Pvt. Ltd. undergoes rigorous structural analysis, seat clearance verification, and smooth drive actuation testing. Engineered to withstand intense thermal expansion and abrasive flue gas environments, FlowBiz dampers guarantee reliable, long-term line isolation with minimal maintenance.
Need absolute gas isolation for your plant's ductwork?
Contact FlowBiz Exports Pvt. Ltd. today for technical datasheets, CAD drawings, and customized factory quotes.
