Ultimate Guide to Industrial Multi-Louver Dampers: Working, Benefits, and Applications
In industrial power generation, petrochemical processing, cement production, and large-scale ventilation systems, controlling gas volume, balancing duct pressure, and modulating flue gas temperature requires fast-responding, precise flow control devices. While single-blade dampers work well for simple shut-off, controlling high-velocity gas in large ducts demands multi-blade flexibility.
An Industrial Multi-Louver Damper (also known as a Multi-Blade Damper) provides exceptional flow control, rapid actuation, and compact installation across large square or rectangular ductwork.
FlowBiz Exports Pvt. Ltd. manufactures custom-engineered Multi-Louver Dampers designed for low pressure drop, linear flow modulation, and high-temperature service in demanding industrial environments.
What is a Multi-Louver Damper?

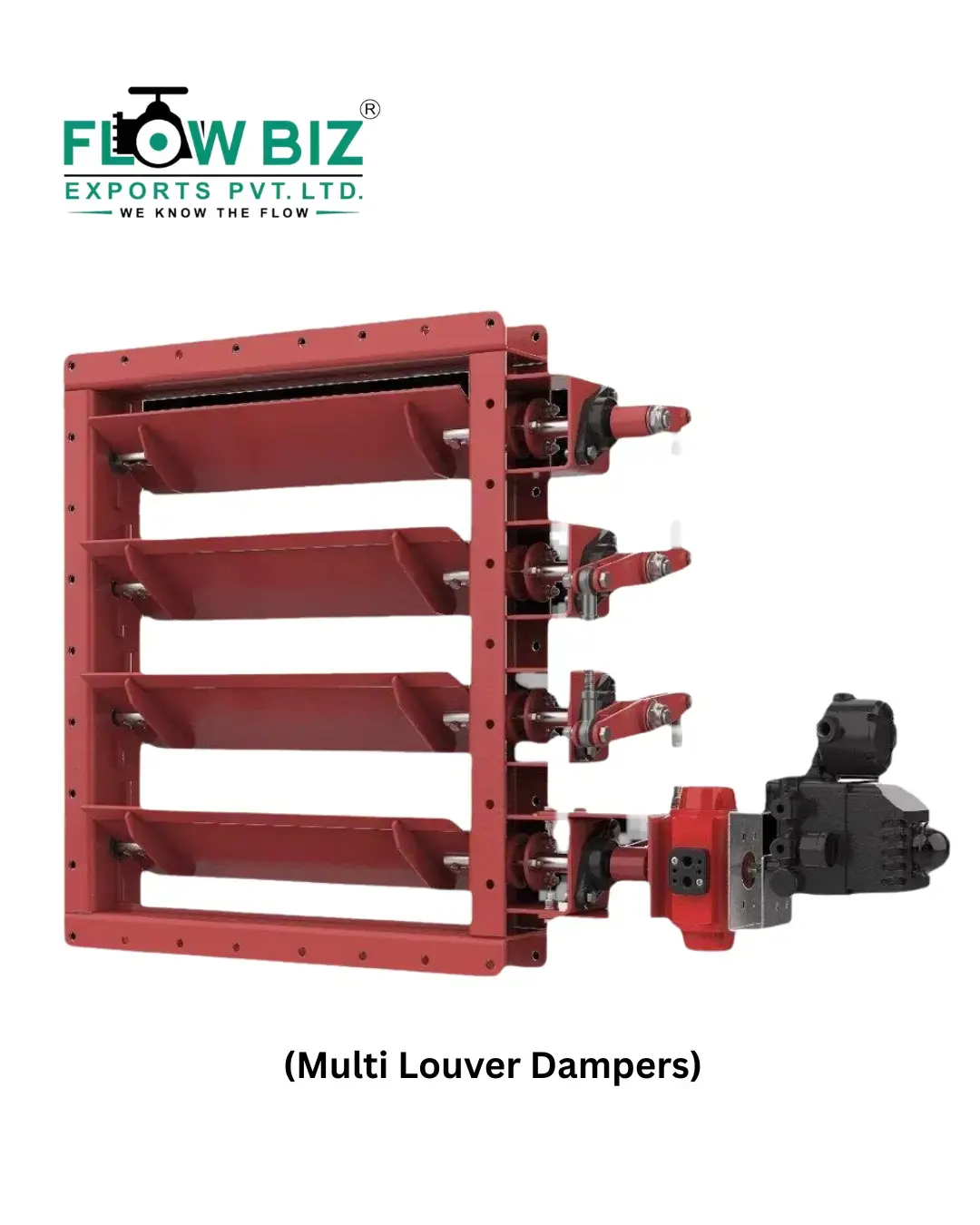

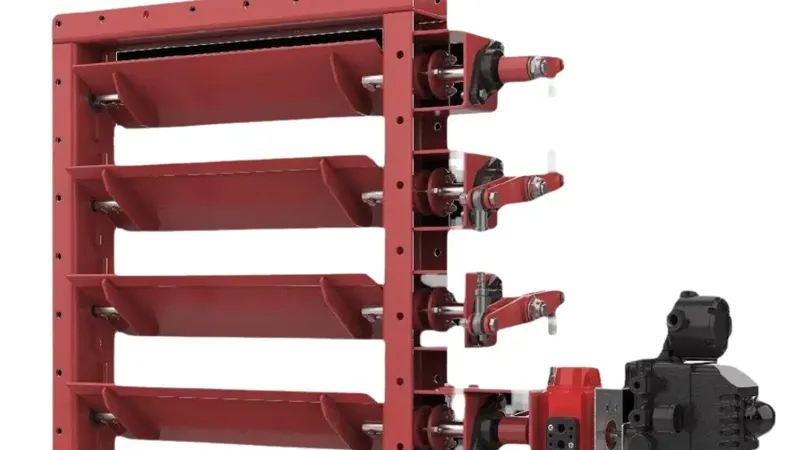

A Multi-Louver Damper is a multi-blade flow regulation valve consisting of a heavy-duty outer frame housing multiple parallel or opposed rotating blades (louvers). The individual blades are interconnected through an external linkage system driven by a single manual lever, pneumatic cylinder, or electric rotary actuator.
Because the total duct opening is divided into smaller, narrow blade sections, multi-louver dampers offer significantly faster actuation speeds, lower operating torque, and superior flow modulation compared to large single-blade dampers.
Parallel vs. Opposed Blade Action
Multi-louver dampers operate in two distinct blade configuration modes depending on process control requirements:
- Opposed Blade Design: Adjacent blades rotate in opposite directions (one clockwise, one counter-clockwise). This creates a converging/diverging airflow pattern that delivers linear flow characteristics, making it ideal for precise volume control and pressure balancing.
- Parallel Blade Design: All blades rotate in the same direction simultaneously. This configuration directs airflow straight through the duct with minimal turbulence, making it ideal for fast, full-open or full-closed isolation service.
How Does a Multi-Louver Damper Work?
The operational cycle of a multi-louver damper involves coordinated blade movement:
- Signal Received: An automated process controller (DCS/PLC) sends a signal to the actuator based on temperature, static pressure, or oxygen levels.
- Linkage Drive: The actuator drives an external drive shaft connected to precision crank arms and tie-rods.
- Synchronized Rotation: The external linkage rotates all internal blades simultaneously through precision shaft bearings located outside the hot gas stream.
- Flow Modulation: Adjusting blade angles from 0° (fully closed) to 90° (fully open) provides precise throttling of high-velocity flue gas or ambient air.
Key Benefits of FlowBiz Multi-Louver Dampers
- Precise Flow Control: Opposed blade designs deliver near-linear flow characteristics across the entire 90-degree movement range.
- Compact Face-to-Face Dimension: Short depth profile allows easy integration into tight duct spaces without altering existing structural ductwork.
- Low Actuation Torque: Dividing the total duct area across multiple smaller blades drastically reduces windage forces and mechanical strain on drive components.
- Rapid Response Speed: Lightweight blades open and close significantly faster than heavy single-blade guillotine gates.
- High-Temperature Reliability: Constructed with high-alloy steels (SS304, SS316, SS310) and heat-resistant external bearings to handle thermal gas streams exceeding 700°C.
Technical Specifications Overview
Technical Parameter | Specifications & Available Options |
Duct Size Range | 300 mm x 300 mm up to 4000 mm x 4000 mm (Custom rectangular/square sizes) |
Blade Arrangements | Opposed Blade (for fine modulation) or Parallel Blade (for fast isolation) |
Operating Temperature | Ambient up to 700°C+ (Refractory lined or high-alloy options available) |
Operating Pressure | Low pressure duct systems (Up to 0.3 bar / 3000 mm WC pressure differential) |
Body / Frame Material | Mild Steel (IS 2062), Carbon Steel, Stainless Steel (SS304, SS316, SS310) |
Blade Material | Heavy-gauge Carbon Steel, SS304, SS316, SS310, or Corten Steel |
Sealing System | Metallic Step-Seat, Flexible Stainless Steel Leaf Seal, Inconel Edge Seals |
Actuation Options | Electric Rotary Actuator, Pneumatic Cylinder/Quarter-Turn, Manual Lever/Gearbox |
Key Industrial Applications
FlowBiz Multi-Louver Dampers serve crucial air and gas control roles across multiple heavy industries:
- Thermal Power Plants: Forced draft (FD) and induced draft (ID) fan inlet/outlet regulation, primary air control, and ESP duct balancing.
- Cement & Lime Works: Preheater fan dampers, raw mill gas recirculation, kiln exhaust regulation, and cooler baghouse controls.
- Steel & Metallurgical Facilities: Waste heat recovery systems (WHRS), sinter plant exhaust balancing, and blast furnace stove gas lines.
- Chemical & Refineries: Incinerator draft control, flare stack gas distribution, and boiler combustion air management.
- HVAC & Large Ducting Systems: Tunnel ventilation, industrial air conditioning main intake control, and cleanroom air balancing.
Supplying Major Industrial Hubs Across India & Globally
FlowBiz Exports Pvt. Ltd. manufactures and supplies high-performance multi-louver dampers across major manufacturing and industrial centers nationwide:
- Gujarat & West India: Ahmedabad, Vadodara, Surat, Rajkot, Bharuch, Vapi, Ankleshwar
- Maharashtra: Mumbai, Pune, Nagpur, Nashik, Aurangabad, Thane
- North India: Delhi NCR, Faridabad, Ghaziabad, Ludhiana, Baddi, Jaipur
- South India: Bengaluru, Chennai, Hyderabad, Coimbatore, Visakhapatnam
- East & Central India: Kolkata, Jamshedpur, Bhilai, Rourkela, Raipur
FlowBiz also exports duct control dampers across the Middle East, Southeast Asia, Africa, and Europe.
Why Choose FlowBiz Exports Pvt. Ltd.?
Every Multi-Louver Damper manufactured by FlowBiz Exports Pvt. Ltd. is precision-engineered to withstand severe thermal expansion, aerodynamic vibration, and abrasive flue gas exposure. Featuring external self-aligning bearings, robust tie-rod linkages, and custom seal options, FlowBiz dampers deliver long-term operational accuracy with low maintenance costs.
