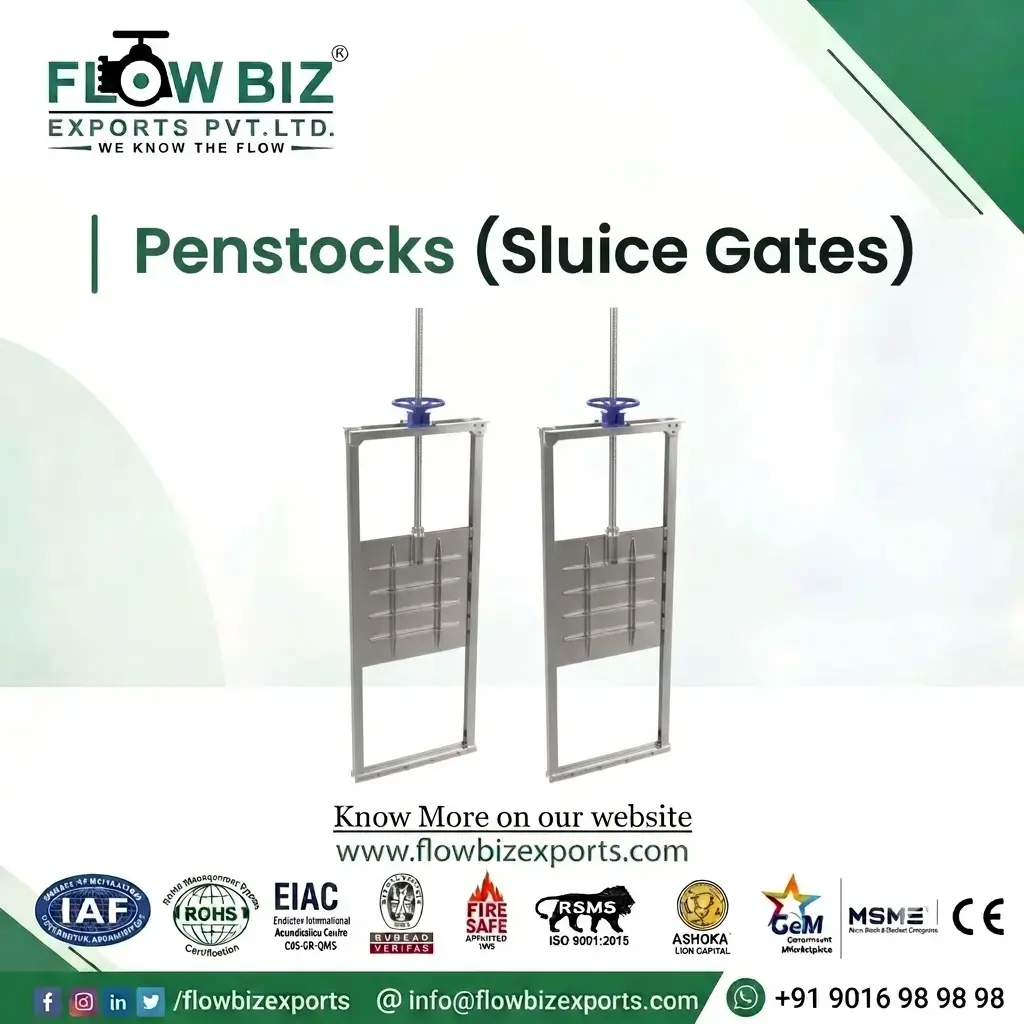

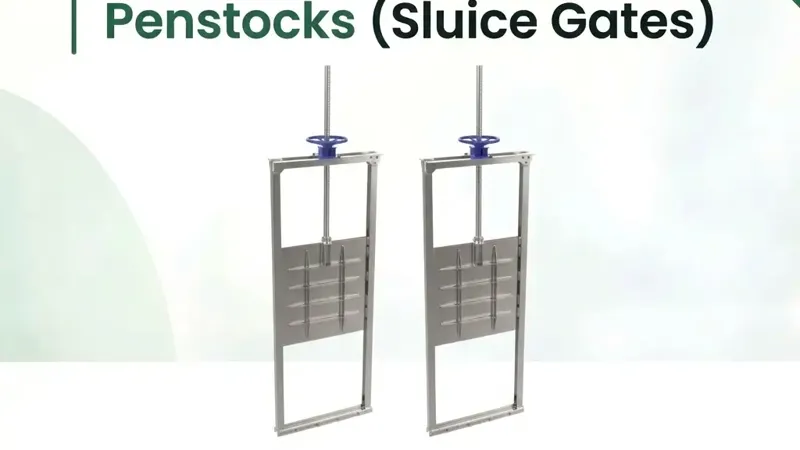

Ultimate Guide to Industrial Penstocks (Sluice Gates): Design, Working, and Applications

In water treatment infrastructure, municipal sewage management, flood mitigation networks, and industrial effluent treatment plants (ETP/STP), controlling and isolating open channel or wall-mounted liquid flow is critical. Standard piping valves cannot accommodate large square or rectangular fluid channels, making specialized isolation gates an engineering necessity.

An Industrial Penstock (also known as a Sluice Gate, Slide Gate, or Channel Gate) provides a robust, heavy-duty barrier for isolating and regulating liquid flow in open channels, culverts, and reservoir outlets.

FlowBiz Exports Pvt. Ltd. manufactures high-performance Penstocks and Sluice Gates engineered for tight sealing (in both seating and unseating pressure conditions), long service life, and smooth manual or automated operation.

What is a Penstock (Sluice Gate)?

A Penstock is a vertically rising, surface-mounted gate valve designed to control liquid flow in fluid containment structures, water treatment channels, and hydraulic works. Unlike round inline pipe valves, penstocks are typically mounted directly over wall openings (wall-mounted) or set into channel grooves (channel-mounted).

The assembly consists of a stationary outer frame, a sliding vertical door (gate), resilient sealing strips, and a threaded spindle shaft driven by a handwheel, gearbox, or electric actuator.

Types of Penstocks & Mounting Styles

Depending on the hydraulic head and civil structure, FlowBiz penstocks are manufactured in three primary configurations:

1. Wall-Mounted Penstocks: Bolted directly onto vertical concrete walls over circular, square, or rectangular orifice openings to isolate pump sumps, tanks, or pipeline outlets.
2. Channel-Mounted Penstocks: Embedded into concrete side recesses within open channels to stop or regulate liquid flow along a canal or flume.
3. Weir Penstocks (Downward Opening): Designed to open by sliding downward, allowing liquid to overflow the top edge of the gate for precise water level regulation and skimming.

Seating vs. Unseating Head Pressure

A critical design consideration when specifying penstocks is the direction of water pressure relative to the mounting frame:

• Seating Head Pressure: Water pressure forces the door against the frame seal. Hydraulic pressure naturally assists in creating a tighter seal.
• Unseating Head Pressure: Water pressure forces the door away from the frame. Requires heavy-duty wedging mechanisms and rigid structural guide frames to maintain zero-leakage performance.

How Does a Penstock Work?

The operational mechanism of a penstock is straightforward and robust:

1. Actuation: Turning the drive handwheel, gearbox, or motorized actuator turns a threaded stem shaft (rising stem or non-rising stem design).
2. Door Travel: The spindle raises or lowers the heavy door panel smoothly through low-friction side guide shoes.
3. Sealing Phase: As the gate reaches the fully closed position, adjustable bronze or synthetic wedges push the door tight against the perimeter seals (such as EPDM, Neoprene, or metallic seats), ensuring a drop-tight hydraulic seal.

Key Benefits of FlowBiz Penstocks

• Bi-Directional Sealing: Engineered to handle both seating and unseating hydraulic head pressures with zero leakage.
• Corrosion-Resistant Construction: Standard builds in Grade 304, 316, or 316L Stainless Steel, duplex alloys, or heavy epoxy-coated Cast Iron for harsh sewage and chemical media.
• Low Operating Torque: Precision ACME-threaded operating spindles and self-lubricating guide shoes minimize manual effort during opening and closing.
• Custom Sizing & Shapes: Custom fabricated to match any civil structural opening—circular, square, or rectangular.
• Low Maintenance Design: Non-corrodible sealing strips and heavy structural frames ensure decades of reliable service with minimal maintenance requirements.

Technical Specifications Overview

Key Industrial & Municipal Applications

FlowBiz Penstocks and Sluice Gates are essential water-control assets across multiple sectors:

• Sewage Treatment Plants (STP): Raw sewage intake channels, grit chamber isolation, aeration tank baffles, and sludge holding tanks.
• Effluent Treatment Plants (ETP): Industrial chemical wastewater isolation, equalization tanks, and neutralizer channels.
• Water Treatment Plants (WTP): River intake structures, raw water canals, clarification basins, and filter bed isolation.
• Flood Mitigation & Canals: Stormwater detention basins, drainage culverts, irrigation sluices, and tidal barrage gates.
• Thermal Power & Hydro Plants: Cooling tower intake basins, condenser discharge channels, and penstock headworks.

Supplying Major Industrial & Municipal Hubs Across India & Globally

FlowBiz Exports Pvt. Ltd. manufactures and supplies heavy-duty penstocks and water control gates to infrastructure projects and industrial hubs nationwide:

• Gujarat & West India: Ahmedabad, Vadodara, Surat, Rajkot, Bharuch, Vapi, Ankleshwar
• Maharashtra: Mumbai, Pune, Nagpur, Nashik, Aurangabad, Thane
• North India: Delhi NCR, Faridabad, Ghaziabad, Ludhiana, Baddi, Jaipur
• South India: Bengaluru, Chennai, Hyderabad, Coimbatore, Visakhapatnam
• East & Central India: Kolkata, Jamshedpur, Bhilai, Rourkela, Raipur

FlowBiz also exports water control gate solutions across the Middle East, Southeast Asia, Africa, and Europe.

Why Choose FlowBiz Exports Pvt. Ltd.?

Every Penstock / Sluice Gate manufactured by FlowBiz Exports Pvt. Ltd. undergoes rigorous hydrostatic pressure testing, seat leakage validation, and structural deflection analysis. Designed in compliance with international standards (such as AWWA C561 / BS 7775 / IS 13349), FlowBiz penstocks guarantee long-term operational reliability in severe water and wastewater environments.

Need reliable liquid isolation or water control gates?

Contact FlowBiz Exports Pvt. Ltd. today for technical datasheets, CAD civil installation drawings, and factory quotes.
