Comprehensive Guide to Industrial Flap Valves (Outfall Gates): Working Principle, Types, and Applications
In municipal storm drainage systems, effluent treatment plants (ETP), sewage treatment plants (STP), and flood protection networks, preventing the reverse flow of water during high tides, heavy rainfall, or rising river levels is essential.
A Flap Valve (also referred to as an Outfall Gate, Flap Gate, or Tidal Gate) acts as an automatic check valve installed at the end of a pipeline, discharge culvert, or wall opening to allow free outward discharge while automatically preventing backflow.
FlowBiz Exports Pvt. Ltd. manufactures heavy-duty, custom-engineered Flap Valves designed for long-term corrosion resistance, leak-tight sealing, and reliable automatic backflow protection.

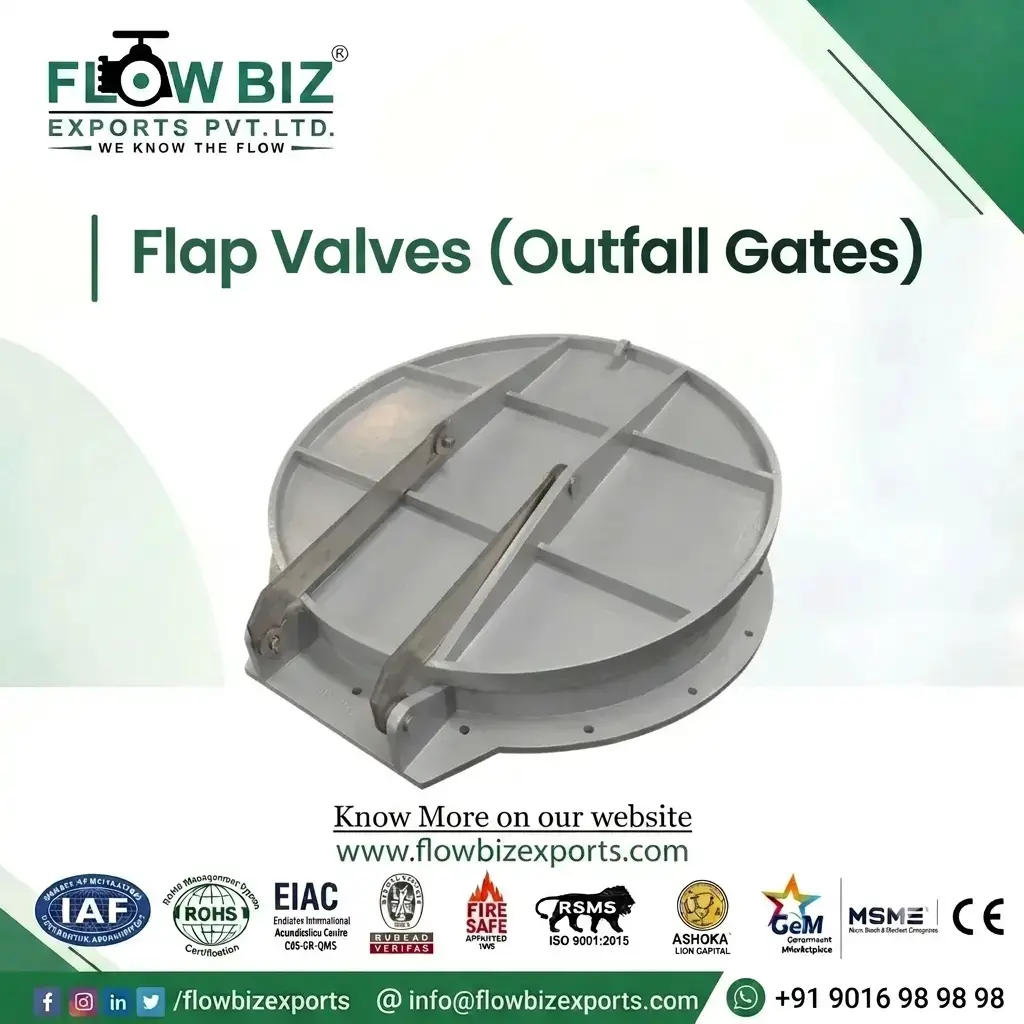

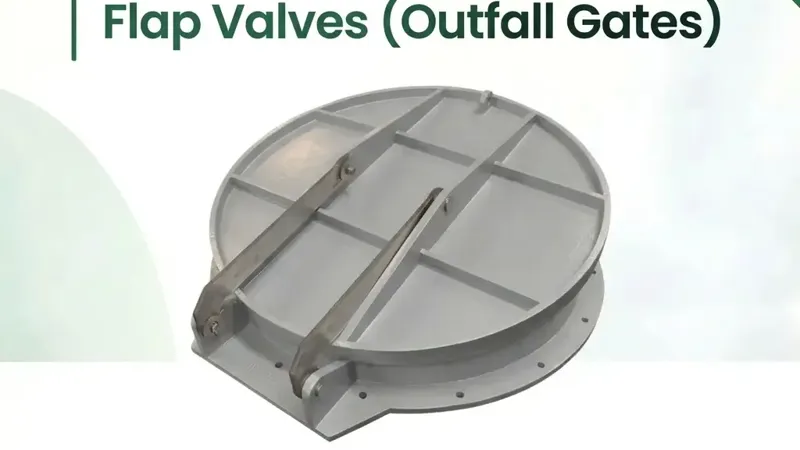

What is a Flap Valve (Outfall Gate)?
A Flap Valve is a gravity-operated non-return valve mounted at the terminal outlet of a pipeline, concrete headwall, or discharge channel. It consists of a hinged shutter door attached to a rigid frame.
Unlike conventional inline check valves, flap valves operate entirely without manual intervention, electrical power, or external actuators. The door swings open when internal fluid pressure exceeds external water pressure and seals shut when external pressure rises, preventing backflow into the upstream system.
How Does a Flap Valve Work?
The operation of an outfall flap gate relies on simple gravity and differential hydraulic head pressure:
- Free Discharge (Open Phase): As wastewater, storm runoff, or treated effluent reaches the outlet, the differential pressure pushes the hinged flap outward, allowing fluid to discharge smoothly into a river, sea, or canal.
- Backflow Prevention (Closed Phase): When external water levels rise (such as high tides, river floods, or elevated receiving tanks), the hydrostatic head pressure on the outer face pushes the flap back against its frame seat. The greater the external water pressure, the tighter the seal.
Key Types of Flap Valves & Mounting Options
Depending on the fluid medium, flow rate, and civil design, outfall gates are available in various configurations:
- Wall-Mounted Flap Valves: Fixed directly onto flat concrete headwalls or outfall structures using anchor bolts.
- Flange-Mounted / Pipe-Mounted Flap Valves: Bolted onto standard pipe flanges (ANSI / DIN / BS) or fitted onto smooth spigot pipe ends at terminal outlets.
- Rectangular vs. Circular Flap Gates: Manufactured in custom round, square, or rectangular geometries to match pre-existing civil apertures and culverts.
- Counterweighted Flap Valves: Equipped with adjustable counterweights on the hinge arms to increase or decrease opening sensitivity under low hydraulic heads.
Key Benefits of Industrial Flap Gates
- Zero Energy Consumption: Operates completely automatically without electrical power, motors, or manual effort.
- Low Opening Resistance: Precision hinge geometry allows the valve to open under minimal internal water pressure.
- Corrosion Resistance: Available in marine-grade SS316, HDPE, or high-build epoxy-coated ductile iron for long service life in saline and chemical environments.
- Minimal Maintenance: Simple mechanical structure with self-cleaning seats minimizes clogging from debris and sediment.
Technical Specifications Overview
Technical Parameter | Standard Configurations |
Size Range | 100 mm to 3000 mm (Circular, Square, or Rectangular) |
Mounting Styles | Wall-Mounted (Face Anchor), Pipe Flange (PN10/16, ANSI 150), Spigot End |
Body & Door Materials | Cast Iron, Stainless Steel (SS304, SS316, SS316L), HDPE / Composite, Mild Steel |
Sealing System | Resilient EPDM / Neoprene rubber, Metallic Land Seats, or Bronze Seats |
Operating Head | Designed for low differential opening heads (< 0.1 m) and high static seating heads |
Operation Type | 100% Automatic (Gravity & Hydrostatic Differential Head Operated) |
Key Industrial & Municipal Applications
- Municipal Stormwater Networks: Installed at drainage outfalls to prevent river water or sea tides from flooding urban drainage systems.
- Sewage Treatment Plants (STP): Positioned at final discharge outlets and treated effluent channels to prevent backflow into clarification basins.
- Effluent Treatment Plants (ETP): Isolates industrial chemical discharge channels and storm overflow lines.
- Flood Mitigation & Coastal Protection: Prevents tidal ingress into estuaries, levees, canals, and agricultural land.
- Thermal & Hydro Power Facilities: Used in cooling water discharge channels, sea outfall structures, and intake basins.
Supplying Major Industrial & Municipal Hubs Across India & Globally
FlowBiz Exports Pvt. Ltd. manufactures and supplies heavy-duty flap valves and outfall control gates across key industrial, infrastructure, and municipal sectors:
- Gujarat & West India: Ahmedabad, Vadodara, Surat, Rajkot, Bharuch, Vapi, Ankleshwar
- Maharashtra: Mumbai, Pune, Nagpur, Nashik, Aurangabad, Thane
- North India: Delhi NCR, Faridabad, Ghaziabad, Ludhiana, Baddi, Jaipur
- South India: Bengaluru, Chennai, Hyderabad, Coimbatore, Visakhapatnam
- East & Central India: Kolkata, Jamshedpur, Bhilai, Rourkela, Raipur
FlowBiz also exports water control gate solutions across the Middle East, Southeast Asia, Africa, and Europe.
Why Choose FlowBiz Exports Pvt. Ltd.?
Every Flap Valve / Outfall Gate manufactured by FlowBiz Exports Pvt. Ltd. undergoes strict quality control, dimensional verification, and seat seal testing. Engineered to withstand harsh saline exposure, tidal forces, and continuous submergence, FlowBiz flap valves deliver decades of maintenance-free, automatic backflow protection.
