Comprehensive Guide to Open Channel Gates (Slide Gates): Working Principle, Types, and Applications

In municipal wastewater treatment plants, industrial effluent processing networks, storm drainage channels, and irrigation canals, controlling and diverting large open-water flows requires specialized flow isolation barriers. Unlike pipeline valves, these systems operate in unpressurized or low-head open channels.

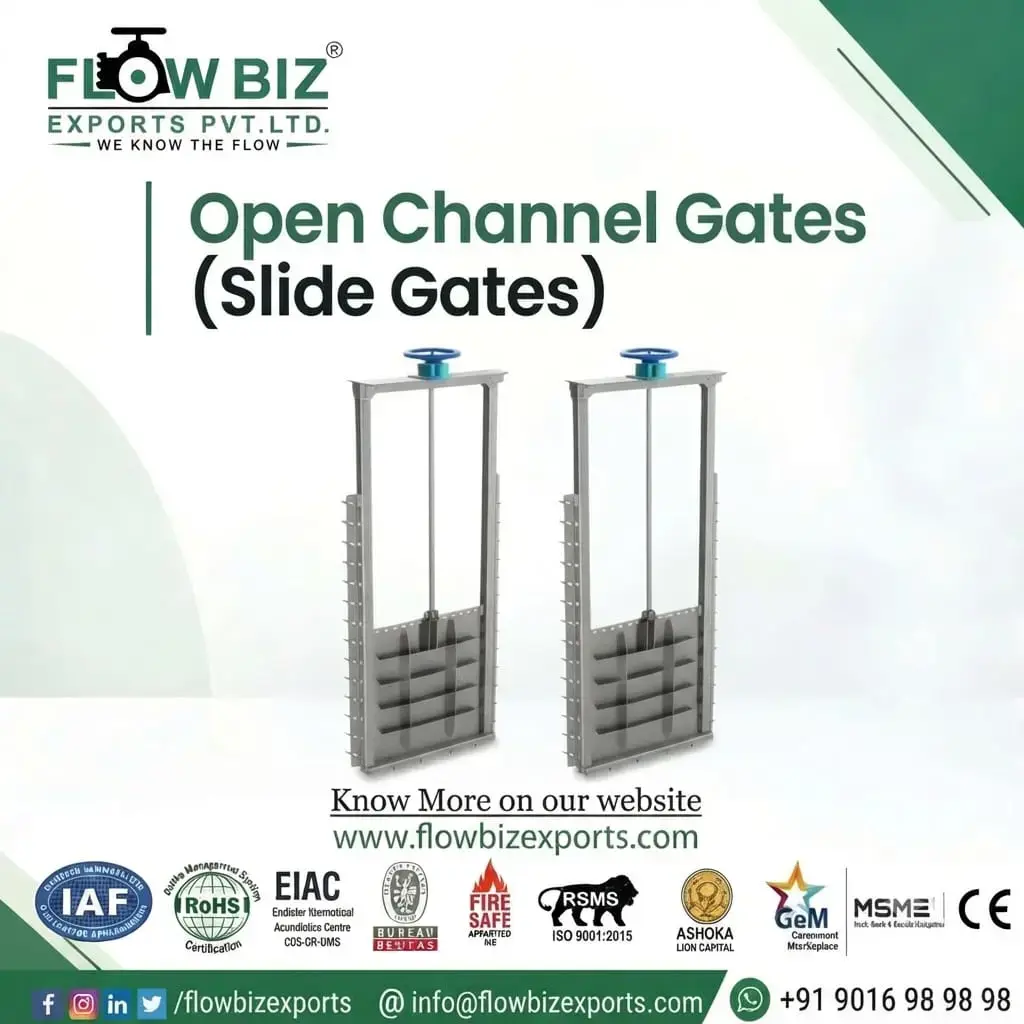

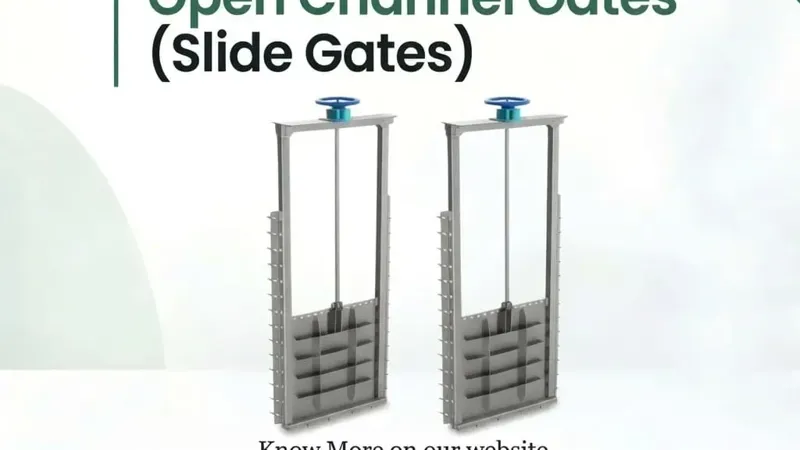

An Open Channel Gate (also known as a Channel Slide Gate, Stop Gate, or Sluice Gate) is a vertical slide gate engineered to isolate, regulate, or divert fluid flow within concrete channels and flumes.

FlowBiz Exports Pvt. Ltd. manufactures custom-engineered Open Channel Gates built for tight sealing, smooth actuation, and maximum corrosion resistance in demanding civil infrastructure environments.

What is an Open Channel Gate?

An Open Channel Gate is a surface-mounted or channel-embedded fluid isolation barrier designed specifically for open conduits and concrete channels. It consists of a rigid door (slide) that moves vertically within a three-sided or four-sided guide frame embedded directly into channel walls or side slots.

Unlike wall-mounted penstocks that seal four sides over a submerged wall opening, open channel gates typically feature a three-sided sealing arrangement (bottom and two vertical sides), leaving the top open to the atmospheric channel height.

How Does an Open Channel Gate Work?

The operation of an open channel slide gate relies on precise vertical linear actuation:

1. Flow Opening: Turning the manual handwheel, gearbox, or electric actuator rotates a precision threaded spindle shaft, raising the slide door completely out of the liquid flow stream.
2. Flow Isolation: Lowering the door panel down through low-friction side guide tracks blocks fluid movement along the channel.
3. Three-Sided Sealing: As the gate closes, bottom flush-invert seals and side-mounted resilient seals (EPDM / Neoprene) compress against the channel frame, forming a leak-tight seal along the invert and side walls.

Key Types of Open Channel Gates

• Channel-Embedded Slide Gates: Embedded into pre-formed concrete side recesses during initial civil channel construction.
• Surface/Wall-Mounted Channel Gates: Bolted onto existing concrete channel side walls using chemical anchor bolts.
• Downward Opening Weir Gates: Designed to slide downward to allow fluid to overflow the top edge, enabling accurate fluid level regulation and surface scum skimming.
• Stop Logs / Hand-Lift Gates: Modular, lightweight panels inserted manually into channel slots for temporary maintenance isolation.

Key Benefits of FlowBiz Open Channel Gates

• Flush-Invert Bottom Sealing: Self-cleaning, flush-bottom rubber seals prevent debris accumulation and sediment buildup at the channel floor, ensuring zero head loss when open.
• Bi-Directional Sealing Integrity: Precision side wedging mechanisms ensure leak-tight sealing regardless of whether fluid pressure comes from upstream or downstream.
• Corrosion-Resistant Metallurgy: Standard fabrication in SS304, SS316, or SS316L stainless steel provides superior resistance to aggressive sewage, industrial chemicals, and saline environments.
• Low Operating Effort: Self-lubricating polymer guide shoes and precision ACME-threaded spindles drastically reduce manual effort during opening and closing.
• Custom Civil Integration: Tailor-made dimensions to fit exact civil engineering drawings and existing concrete channel cross-sections.

Technical Specifications Overview

Key Industrial & Municipal Applications

FlowBiz Open Channel Gates serve essential fluid diversion and isolation functions across multiple sectors:

• Sewage Treatment Plants (STP): Raw sewage channel isolation, screen channel diversion, grit chamber bypass, and aeration basin control.
• Effluent Treatment Plants (ETP): Industrial chemical effluent channel routing, equalization tank inlet/outlet control, and sludge treatment lines.
• Water Treatment Plants (WTP): Raw water intake canals, rapid sand filter channel isolation, and backwash channels.
• Irrigation & Stormwater Canals: Water distribution control in agricultural canals, flood diversion channels, and stormwater drainage networks.
• Desalination & Power Facilities: Cooling water intake canals, seawater intake channels, and brine discharge flumes.

Supplying Major Industrial & Municipal Hubs Across India & Globally

FlowBiz Exports Pvt. Ltd. manufactures and supplies heavy-duty open channel slide gates to major industrial clusters, municipal corporations, and infrastructure projects nationwide:

• Gujarat & West India: Ahmedabad, Vadodara, Surat, Rajkot, Bharuch, Vapi, Ankleshwar
• Maharashtra: Mumbai, Pune, Nagpur, Nashik, Aurangabad, Thane
• North India: Delhi NCR, Faridabad, Ghaziabad, Ludhiana, Baddi, Jaipur
• South India: Bengaluru, Chennai, Hyderabad, Coimbatore, Visakhapatnam
• East & Central India: Kolkata, Jamshedpur, Bhilai, Rourkela, Raipur

FlowBiz also exports water control gate solutions across the Middle East, Southeast Asia, Africa, and Europe.

Why Choose FlowBiz Exports Pvt. Ltd.?

Every Open Channel Gate manufactured by FlowBiz Exports Pvt. Ltd. undergoes rigorous structural deflection analysis, dimensional inspection, and hydrostatic seat leakage testing (conforming to AWWA C561 / BS 7775 / IS 13349 standards). Engineered to withstand continuous submergence and harsh chemical exposure, FlowBiz open channel gates ensure long-term operational reliability with minimal maintenance.
