FlowBiz Temporary Cone Strainer – Pipeline Commissioning & Debris Protection for Natural Gas Systems

During plant commissioning, pipeline tie-ins, and start-up operations in natural gas processing, glycol dehydration units, and gas distribution lines, construction debris like weld slag, rust, pipe scale, and sand can cause severe damage to downstream compressors, control valves, and contactor towers. The FlowBiz Temporary Cone Strainer (commonly referred to as a "Witch's Hat" strainer) provides a cost-effective, high-strength temporary filtration solution installed directly between standard pipeline flanges.

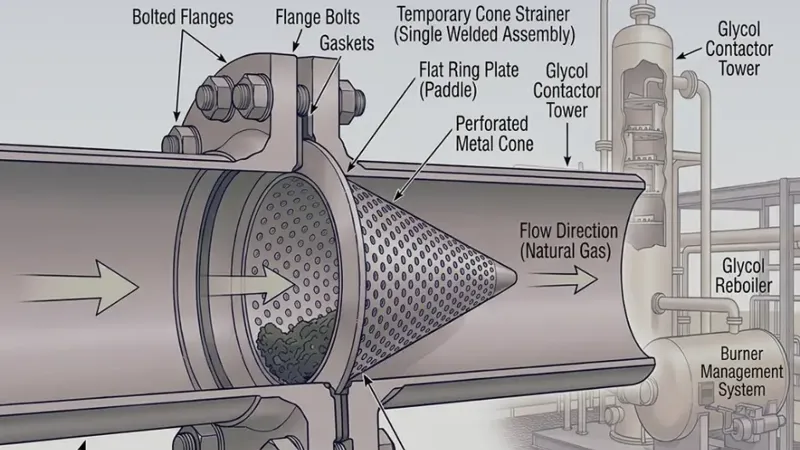

Featuring a heavy-duty single welded assembly consisting of a flat ring plate handle (paddle) and a perforated metal cone, this strainer traps foreign particulates from the upstream gas stream. Engineered to withstand high pressure differentials without basket collapse, the FlowBiz Temporary Cone Strainer safeguards critical infrastructure like glycol contactor towers, reboilers, and burner management systems during initial plant flushing and commissioning phases.

Technical Specifications & Features

The FlowBiz Temporary Cone Strainer is engineered to precise ANSI/ASME piping standards:

• Product Name: FlowBiz Temporary Cone Strainer | Pipeline Commissioning & Debris Protection
• Design Type: Temporary Conical / Witch's Hat Flange Insert Strainer
• Size Range: 1/2" (DN15) to 24" (DN600) (Custom sizes for large-diameter headers)
• Pressure Rating: Fits ANSI Class 150#, 300#, 600#, 900#, and 1500# Raised Face (RF) & Ring Type Joint (RTJ) Flanges
• Material of Construction (MOC): Stainless Steel (ASTM A240 SS304 / SS316 / SS316L) / Carbon Steel / Monel / Inconel
• Screen Mesh / Perforation: Perforated plate (1/8", 1/16", or 1/32" holes) available with optional inner/outer wire mesh lining (20 Mesh to 100 Mesh) for fine particulate capture
• Flange Insertion: Designed to fit neatly inside the bolt circle between standard ASME B16.5 raised-face flanges with standard flange gaskets
• Flow Direction: Available in Cones In (pointing downstream, as shown) or Cones Out (pointing upstream) depending on debris holding capacity requirements
• Paddle Indicator: Flat ring plate handle extends outside the flange joint, serving as a visual indicator for plant engineers to locate temporary strainers during commissioning

Technical Overview Table

Key Applications Across Gas Processing Utilities

The FlowBiz Temporary Cone Strainer delivers crucial initial protection across gas and petrochemical processes:

• Natural Gas Dehydration Units: Protects glycol contactor towers, circulation pumps, and reboilers from pipeline mill scale and weld spatter.
• Compressor & Turbine Intake Headers: Prevents loose construction debris from entering high-speed gas compressor impellers and gas turbines during start-up.
• Gas Metering & Pressure Reduction Skids: Safeguards delicate turbine meters, ultrasonic flow meters, and control valve seats during initial pipeline blowdown.
• Burner Management Systems (BMS): Filters fine scale and rust to prevent clogging of fuel gas burner nozzles and pilot lines.

Why Choose FlowBiz Exports Pvt. Ltd.?

The FlowBiz Temporary Cone Strainer offers vital safeguards for temporary and commissioning filtration:

• High Mechanical Strength: Precision-welded cone geometry withstands high differential pressures without tearing or bursting during heavy debris accumulation.
• Easy Identification: The extended flat ring plate handle (paddle) allows operators to easily identify and remove temporary strainers once the pipeline flushing phase is complete.
• Low Initial Investment: Provides an economical alternative to permanent cast/fabricated Y-strainers during temporary plant Flushing and Cleaning (F&C) operations.
• Customizable Open Area Ratios: Engineered with open area ratios from 150% to over 300% of the pipe cross-sectional area to minimize pressure drop across the filter element.
