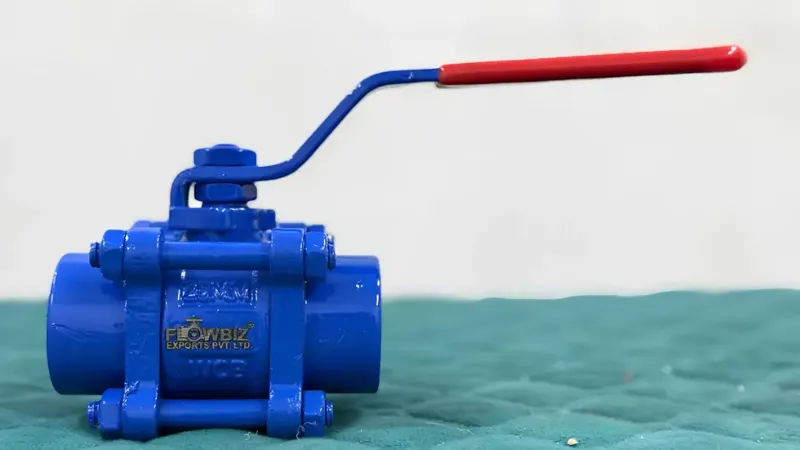

Premium WCB 3 Piece Ball Valve Screwed End Solutions by FlowBiz Exports
FlowBiz Exports is a premier industrial valve manufacturer in India, engineering high-performance WCB 3 Piece Ball Valves with Screwed Ends. Designed to meet stringent global standards, our three-piece ball valves offer continuous operation, tight shut-off, and leak-free performance across extreme pressure and temperature environments. Constructed using high-grade ASTM A216 WCB carbon steel, these valves are an essential component for demanding operations in oil and gas, chemical processing, power generation, and water management infrastructure.
Technical Specifications & Engineering Standards
The 3-piece screwed end ball valve is specifically designed for quick inline servicing, ensuring minimal downtime for critical industrial systems.
Feature / Parameter | Standard Specification |
Valve Type | 3 Piece Design, Full Bore / Reduced Bore |
Body Material | Cast Carbon Steel (ASTM A216 Grade WCB) |
End Connection | Screwed End / Threaded (BSP, NPT, or BSPT) |
Pressure Class | 800# / 1000 WOG / 1500# Class Options |
Ball & Stem Material | Stainless Steel (SS 304 / SS 316 / SS 316L) |
Seat & Seal Material | PTFE / RPTFE / Devlon / PEEK (High Temp) |
Operation | Manual Lever Handle with Vinyl Sleeve / Actuator-Ready |
Testing Standards | API 598 / BS EN 12266-1 |
Key Advantages of FlowBiz WCB 3-Piece Ball Valves
- Inline Maintenance & Ease of Repair: The signature three-piece body construction allows maintenance engineers to swing out the center section. Seals, seats, and the ball can be serviced or replaced without removing the end caps from the pipeline network.
- Superior Pressure & Thermal Resistance: High-density ASTM A216 WCB cast steel provides strong tensile strength and structural resilience under heavy pressure spikes and elevated operating temperatures.
- Precision Machined Threaded Ends: Available in BSP and NPT thread profiles, ensuring tight, leak-proof joints that resist mechanical vibration and pressure fluctuations.
- Bi-Directional Sealing: Equipped with precision-ground stainless steel balls and resilient PTFE seats to deliver bubble-tight shut-off in both flow directions.
- Blow-out Proof Stem Design: Engineered with an bottom-entry stem system to ensure safety during high-pressure fluid transfers.
Primary Industrial Applications
FlowBiz WCB 3 Piece Ball Valves with Screwed Ends are deployed in diverse process flow applications:
- Petrochemical & Refineries: Handling heavy hydrocarbons, fuel oil, and natural gas lines.
- Chemical Processing: Control of non-corrosive chemicals, industrial solvents, and utility streams.
- Power Generation & Steam Lines: High-pressure steam regulation and feedwater control.
- Water Treatment & Utilities: Firefighting networks, industrial water purification, and compressed air lines.
Quality Assurance & International Compliance
At FlowBiz Exports, quality control is integrated into every stage of manufacturing. Every WCB ball valve undergoes hydrostatic testing, shell pressure testing, and low-pressure seat leakage checks in strict compliance with API 598 standards. Our advanced metallurgy checks and dimensional inspection guarantees long-term operational durability.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted Forged Steel Ball Valve manufacturer with a massive distribution network. We provide rapid delivery and local support in:
- Gujarat: Key industrial hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting high-pressure valve solutions to industrial clients across Africa and global markets.
