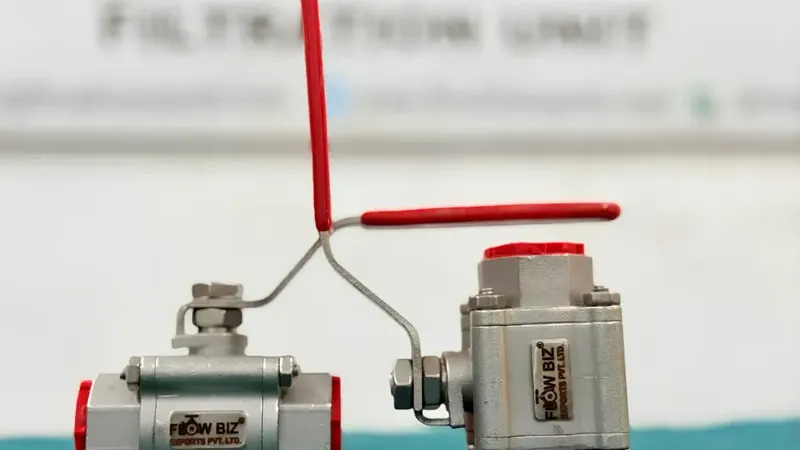

High-Performance Industrial 3 Piece SS Ball Valves by FlowBiz Exports
FlowBiz Exports is a trusted manufacturer of Industrial 3 Piece SS (Stainless Steel) Ball Valves in India, offering robust fluid control solutions engineered for high-pressure, high-temperature, and corrosive operating environments. Utilizing premium-grade stainless steel castings (CF8 / SS 304 and CF8M / SS 316), our 3-piece ball valves deliver bubble-tight shut-off, long operational life, and seamless inline maintenance across demanding process pipelines.
Technical Specifications & Engineering Standards
Designed with a swing-out center section, our 3-piece stainless steel ball valves allow quick inspection, seat replacement, and seal maintenance without disturbing the pipe connections.
Feature / Parameter | Standard Specification |
Product Type | 3 Piece Stainless Steel Ball Valve |
Body Material | SS 304 (CF8) / SS 316 (CF8M) / SS 316L (CF3M) |
Bore Type | Full Port / Reduced Port Options |
End Connections | Screwed (BSP / NPT / BSPT), Socket Weld, Butt Weld |
Pressure Class | 1000 WOG / 800# / Class 150 - Class 600 |
Seat & Seal Material | Reinforced PTFE (RPTFE) / PEEK / Devlon / Metal-Seated |
Operation | Heavy-Duty Lever with Red Vinyl Grip / ISO 5211 Actuator Pad |
Testing Standards | API 598 / BS EN 12266-1 |
Key Advantages of FlowBiz 3-Piece Stainless Steel Ball Valves
- Swing-Out Inline Maintenance: The three-piece split-body design enables maintenance engineers to unbolt the center block and service internal seals, seats, or the ball without dismantling the entire pipeline network.
- Superior Chemical & Corrosion Resistance: High-nickel SS 304 and molybdenum-bearing SS 316 alloys shield the valve body against aggressive media, pitting, rust, and chemical degradation.
- Precision Machined & Polished Ball: Hydrodynamically tested stainless steel ball provides smooth torque during quarter-turn actuation and minimizes wear on resilient PTFE seats.
- Blowout-Proof Stem & Anti-Static Design: Bottom-loaded, blowout-proof stem ensures maximum operator safety under unexpected line pressure surges.
- Actuation Ready Design: Options available with ISO 5211 mounting pads for easy automation using pneumatic or electric actuators.
Primary Industrial Applications
FlowBiz Industrial 3-Piece SS Ball Valves are extensively used across process industries requiring hygienic, non-contaminating, and leak-proof flow regulation:
- Chemical & Petrochemical Processing: Handling harsh chemicals, organic acids, fuels, and solvent transfer lines.
- Pharmaceuticals & Food Processing: Clean fluid systems requiring sanitary, smooth internal surfaces to prevent contamination.
- Oil, Gas & Refinery Infrastructure: High-pressure gas lines, condensate systems, and offshore processing rigs.
- Water Treatment & Power Plants: High-pressure steam lines, boiler feedwater systems, and industrial water purification setups.
Quality Assurance & International Compliance
At FlowBiz Exports, quality control is woven into every production stage. Every 3-piece SS ball valve undergoes 100% shell hydrostatic testing, low-pressure pneumatic seat testing, and strict dimensional checks according to API 598 standards. Full Material Test Reports (MTRs) and Chemical Composition Certificates are provided with each batch.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted Forged & Cast Stainless Steel Ball Valve manufacturer with an expansive logistics and supply chain network:
- Gujarat: Key industrial hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting high-pressure stainless steel valve solutions to industrial clients across Africa, the Middle East, and worldwide.
