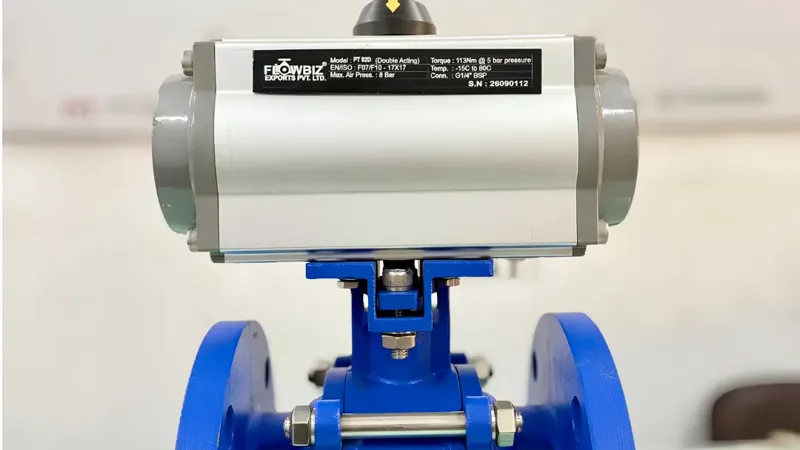

High-Performance 3 Piece Flanged Ball Valve with Double Acting Pneumatic Actuator
FlowBiz Exports is a leading industrial valve manufacturer in India, engineering precision-built 3 Piece Flanged Ball Valves integrated with Double Acting Pneumatic Actuators. Designed for rapid response, high frequency, and automated flow control, these valve assemblies deliver reliable shut-off and modulating capabilities for critical industrial process automation. Constructed using robust WCB carbon steel or stainless steel bodies coupled with high-torque rack-and-pinion actuators, FlowBiz automated valves optimize operating efficiency across chemical, power, and oil & gas facilities.
Technical Specifications & Engineering Standards
Our automated pneumatic ball valves feature an ISO 5211 direct-mounting pad, enabling direct coupling with double acting actuators for smooth torque transmission without external linkage wear.
Feature / Parameter | Standard Specification |
Valve Type | 3 Piece Split Body Flanged Ball Valve |
Actuator Type | Double Acting Pneumatic Actuator (Rack & Pinion Design) |
Body Material | Cast Carbon Steel (ASTM A216 WCB) / SS 304 (CF8) / SS 316 (CF8M) |
End Connections | Flanged End (ANSI B16.5 Class 150 / 300 / 600, DIN PN16 / PN40) |
Actuator Supply Pressure | 2.5 Bar to 8 Bar (Air / Inert Gas) |
Seat & Seal Material | PTFE / RPTFE / PEEK (High Temperature) |
Mounting Standard | ISO 5211 Direct Mounting Pad with NAMUR Solenoid Interface |
Testing Standards | API 598 / BS EN 12266-1 / ISO 5208 |
Key Advantages of FlowBiz Pneumatic Actuated Ball Valves
- Rapid & Reliable Automation: The double-acting rack-and-pinion actuator utilizes air pressure for both opening and closing cycles, delivering rapid cycle times and dependable position control.
- Inline Maintainability: The signature 3-piece valve construction allows the center body section to be serviced, inspected, or resealed without removing the flanged ends from the pipeline.
- Leak-Proof Flanged Connection: Precision-machined flange faces (RF/RTJ) ensure tight sealing and structural integrity against line stress and high operating pressures.
- NAMUR & ISO 5211 Compatibility: Standardized mounting pads support quick fitting of limit switch boxes, 5/2-way solenoid valves, electro-pneumatic positioners, and manual handwheel overrides.
- Heavy-Duty Anodized Actuator Body: Extruded aluminum alloy actuator housing with hard-anodized coating offers superior resistance to corrosive external atmospheres.
Primary Industrial Applications
FlowBiz 3 Piece Flanged Ball Valves with Double Acting Pneumatic Actuators are ideal for automated fluid management across continuous process industries:
- Chemical & Petrochemical Automation: Remote flow control of solvents, hydrocarbons, and aggressive liquid streams.
- Oil, Gas & Power Generation: Automated emergency shut-off, fuel gas regulation, and steam distribution systems.
- Water & Wastewater Treatment Plants: Automated dosing, pump isolation, and filtration system backwashing.
- Pharmaceutical & FMCG Processing: Automated transfer of bulk liquids, utilities, and high-purity process lines.
Quality Assurance & Testing
Every automated pneumatic valve assembly undergoes comprehensive factory testing at FlowBiz Exports. This includes hydrostatic shell testing, low-pressure seat leakage checks per API 598, actuator stroke cycle testing, and pneumatic pressure testing to guarantee zero-leak performance and flawless operational response prior to dispatch.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted Pneumatic Actuated Ball Valve manufacturer with an expansive logistics network, providing rapid delivery and technical support in:
- Gujarat: Key industrial hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting high-pressure automated valve solutions to industrial clients across Africa, the Middle East, and worldwide.
