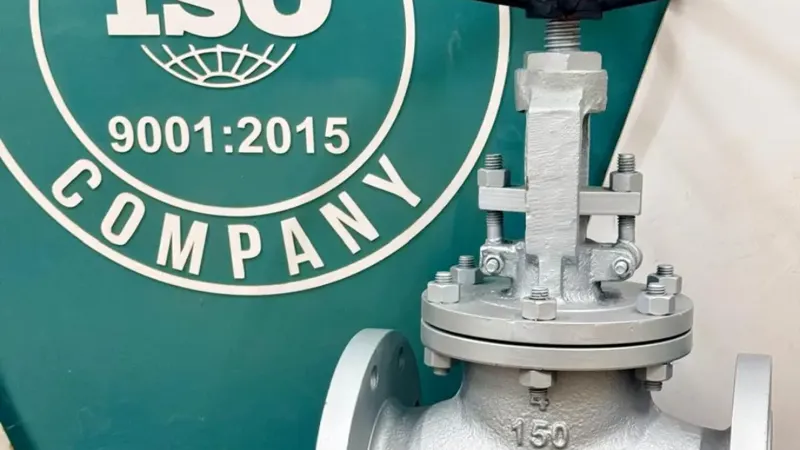

WCB Globe Valve Class 150 Flanged End – Precision Flow Throttling & Reliable Shut-Off
Managing steam distribution, hydrocarbon streams, feed water, and general industrial process fluids requires durable, high-precision throttling valves capable of handling continuous pressure differentials. The WCB Globe Valve Class 150 Flanged End manufactured by FlowBiz Exports is engineered to provide linear flow regulation, tight shut-off, and minimum seat wear under demanding operational conditions.
Constructed from premium-grade cast carbon steel (ASTM A216 Gr. WCB), this Class 150 flanged globe valve incorporates an Outside Screw and Yoke (OS&Y) architecture with a rising stem and handwheel operation. Featuring a conical plug-type disc and hardfaced 13% Cr / Stellite seats, the FlowBiz WCB Globe Valve minimizes seat erosion during high-velocity throttling, ensuring long-term seat integrity across thermal power plants, refineries, and chemical processing complexes.
Technical Specifications & Features
The WCB Globe Valve Class 150 Flanged End is manufactured in strict compliance with international design standards:
- Product Name: WCB Globe Valve Class 150 Flanged End
- Design Standards: BS 1873 / API 623 / ASME B16.34
- Size Range: 2" (DN50) to 12" (DN300) (Custom larger sizes available on request)
- Pressure Rating: ANSI Class 150# Flanged Ends (Raised Face)
- Body & Bonnet Material: Cast Carbon Steel ASTM A216 Gr. WCB
- Trim Material: API Trim 1 / Trim 5 / Trim 8 (13% Chromium Steel / Stellite Hardfaced Seats)
- Stem & Gland Architecture: OS&Y (Outside Screw and Yoke) with rising stem and flexible graphite packing for zero fugitive emissions
- End Connections: Flanged RF per ASME B16.5
- Face-to-Face Standard: ASME B16.10
- Testing Standards: API 598 / BS EN 12266-1
Technical Overview Table
Technical Parameter | Specification Details |
Product Name | WCB Globe Valve Class 150 Flanged End |
Manufacturer | FlowBiz Exports Pvt. Ltd. |
Size Range | 2" (DN50) to 12" (DN300) |
Pressure Class | ANSI Class 150# |
Body Material | Cast Carbon Steel ASTM A216 Gr. WCB |
Bonnet Type | Bolted Bonnet with OS&Y Rising Stem |
Seat / Trim | 13% Cr / Hardfaced Stellite (API Trim 8 / Trim 5) |
End Connection | Flanged Raised Face (RF) |
Quality Certification | ISO 9001:2015 Certified Manufacturing |
Key Applications Across Industrial Utilities
The WCB Globe Valve Class 150 Flanged End delivers dependable performance across heavy-duty process environments:
- Steam & Power Generation: Regulates high-pressure boiler feed water, main steam lines, and turbine drain headers.
- Oil & Gas Processing: Controls crude oil manifolds, gas processing loops, and utility bypass systems.
- Chemical & Petrochemical Refineries: Manages non-corrosive hydrocarbons, heat transfer fluids, and utility headers.
- Water & Thermal Utilities: Serves as dependable isolation and regulation valves in district heating and cooling plants.
Why Choose FlowBiz Exports Pvt. Ltd.?
FlowBiz Exports Pvt. Ltd. is a leading ISO 9001:2015 certified valve manufacturer in India:
- Accurate Throttling Profile: Precision-ground plug disc design provides smooth linear flow control without fluid cavitation or chatter.
- Leak-Proof Bolted Bonnet: Heavy-duty studs and spiral wound gaskets ensure body-bonnet integrity under thermal cycling.
- Erosion-Resistant Seating: Hardfaced Stellite seat rings resist fluid erosion, galling, and high-velocity particle impact.
- Low Fugitive Emissions: Multi-ring graphite packing with live-loaded gland bolting maintains stem seal compliance.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted valve manufacturer with a massive distribution network:
- Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting high-pressure valve solutions to clients across Africa.
