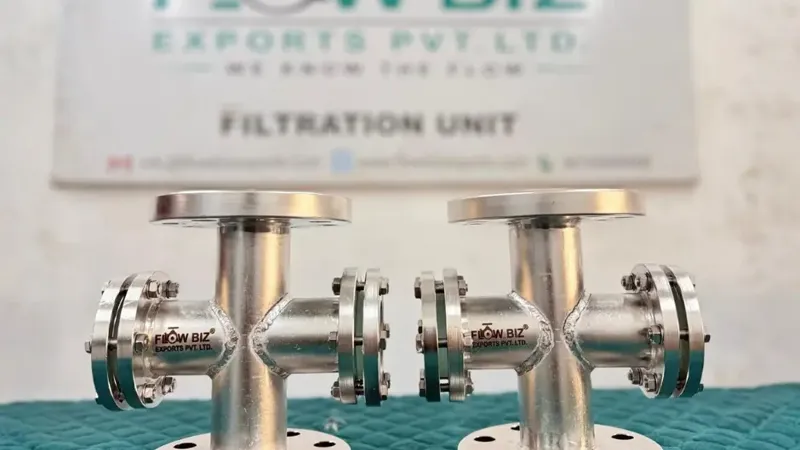

SS 304/316 Double Window Sight Glass – Continuous Visual Monitoring for Industrial Piping Systems

Monitoring fluid flow, clarity, color changes, and bubble formation in chemical, pharmaceutical, oil & gas, and water processing pipelines requires transparent inline inspection devices. The SS 304/316 Double Window Sight Glass manufactured by FlowBiz Exports provides 360-degree inline visibility through two opposing high-strength glass windows, allowing operators to safely monitor fluid movement without interrupting process flow.

Constructed from investment cast or fabricated SS304 / SS316 stainless steel with heavy-duty flanged ends, this double window sight flow indicator is fitted with toughened borosilicate glass discs protected by chemically resistant PTFE or graphite cushion gaskets. Available with optional drip lips, flappers, or rotary impellers, the FlowBiz Double Window Sight Glass ensures reliable, clear visual tracking under high thermal and chemical exposure conditions.

Technical Specifications & Features

The SS 304/316 Double Window Sight Glass is engineered to international pressure vessel and piping standards:

• Product Name: SS 304/316 Double Window Sight Glass
• Design Standards: ASME B16.34 / BS 5351 / Manufacturer Standard
• Size Range: 15mm (1/2") to 200mm (8") Flanged / Screwed / Triclover Ends
• Pressure Rating: ANSI Class 150#, Class 300#, PN10, PN16
• Body Material: Stainless Steel ASTM A351 CF8 (SS304) / CF8M (SS316) / SS316L
• Glass Material: High-Pressure Toughened Borosilicate Glass Discs (DIN 7080 compliant)
• Gasket Material: PTFE (Teflon) / Compressed Graphite / CAF / Viton for thermal and chemical resistance
• Internal Indicators (Optional): Plain Flow, Drip Lip (for vertical gas/vapor condensate lines), Flapper, or Rotary Wheel / Impeller
• End Connections: Flanged RF per ASME B16.5 / Threaded BSP/NPT / Triclover Sanitary Ends

Technical Overview Table

Key Applications Across Industrial Utilities

The SS 304/316 Double Window Sight Glass is utilized across critical process lines:

• Chemical & Petrochemical Processing: Visual verification of corrosive chemical movement, solvent color changes, and phase separation.
• Pharmaceutical & Fine Chemical Lines: Sanitary monitoring of purified water (PW), CIP solution return, and active batch transfer.
• Oil & Gas Refineries: Monitoring lube oil circulation, fuel oil lines, and separator output streams.
• Steam & Boiler Systems: Inline visual check for condensate discharge lines and steam trap monitoring.

Why Choose FlowBiz Exports Pvt. Ltd.?

FlowBiz Exports Pvt. Ltd. provides superior process vision hardware for hazardous and high-purity environments:

• Dual-Window Opposing Design: Opposing glass ports maximize backlighting and liquid transparency for easy inspection.
• Thermal Shock Resistance: Toughened borosilicate glass elements safely endure rapid temperature fluctuations without fracturing.
• Corrosion-Resistant Fabrication: Passivated SS304 and SS316 stainless steel bodies resist aggressive process media and atmospheric corrosion.
• Leak-Tight Bolted Cover Flanges: Sturdy multi-bolt retainer covers maintain uniform compression across glass gaskets, preventing fluid leakage.

Reliable Supply Chain Across India & Abroad

FlowBiz serves as a trusted valve and piping accessory manufacturer with a wide distribution network:

• Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
• Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
• International: Proudly exporting high-pressure valve and sight glass solutions to clients across Africa.
